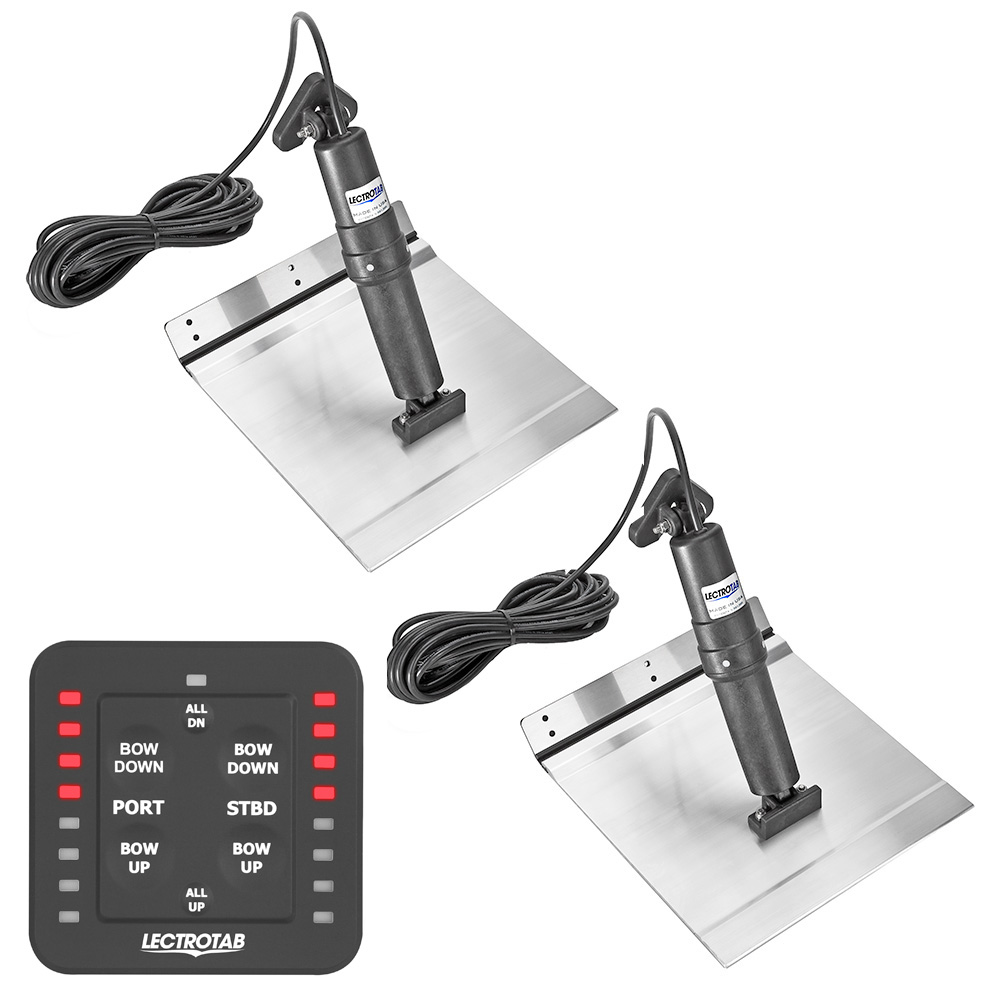

Lectrotab XKASL12X12A 12x12 Aluminum Alloy Trim Tab Kit with SLC-11 One-Touch Control

The Lectrotab XKA 12x12 Aluminum Alloy Trim Tab Kit is engineered specifically for aluminum-hulled boats while providing an economical solution for all vessel types. This complete kit features marine-grade 6005-T5 aluminum alloy tabs with a corrosion-resistant epoxy coating and an innovative "no-break" polypropylene hinge that has been tested over 300,000 cycles to a 90-degree bend without failure, delivering equivalent strength to 10-gauge stainless steel.

The precision-engineered actuators combine quiet operation with a non-hydraulic, maintenance-free design. Each actuator is fully load tested to push 1000 lbs of force and features a non-metallic, permanently sealed housing that cannot corrode or deteriorate in sun or underwater conditions. Unlike hydraulic trim tabs, there is no oil to leak, and the upper ram seal location is protected from damage caused by fouled rams or barnacle growth. An internal brake system prevents unwanted tab movement when underway or backing down, while an internal pressure equalization system ensures reliable performance.

The included SLC-11 one-touch leveling LED control panel provides intuitive fingertip control of your trim tabs. With no components required inside the boat, installation is straightforward and self-contained.

Key Features:

• Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
• "No-break" polypropylene hinge tested to 300,000+ cycles without failure
• Non-hydraulic, maintenance-free actuators with no oil leaks
• Actuators load tested to 1000 lbs of force with quiet operation
• Non-metallic sealed housing that cannot corrode
• Internal brake system prevents unwanted tab movement
• Internal pressure equalization system for reliable performance
• Upper ram seal protected from fouling and barnacle damage
• One-touch LED control panel for intuitive operation
• Self-contained design with no interior components required

Technical Specifications:

• Trim Tab Size: 12" x 12" (30 x 30 cm)
• Recommended Boat Length: 18' to 32' (5.5 to 9.5 m)
• Tab Material: Marine Grade 6005-T5 Aluminum Alloy
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Panel Dimensions: 3" x 3" (77 x 77 mm)
• Control Panel Cutout: 2.25" x 2.5" (57 x 64 mm)
• Control Panel Voltage: 12V or 24V

Kit Includes:

• Two (2) aluminum alloy trim tabs (12" x 12")
• Two (2) actuators with 23' cables
• One (1) SLC-11 one-touch LED control panel
• Instruction manual
