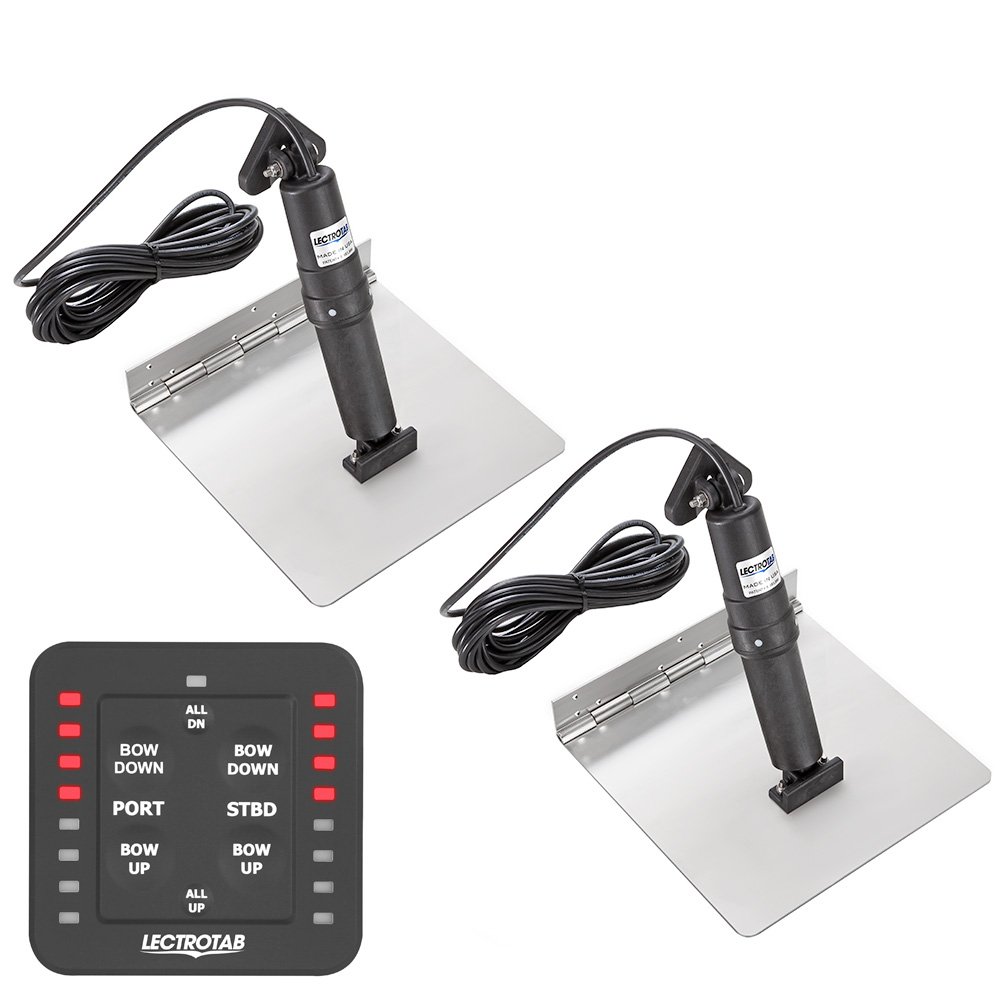

Lectrotab XKASL12X24 12x24 Stainless Steel Trim Tab Kit with SLC-11 One-Touch Control

The Lectrotab XKASL12X24 stainless steel trim tab kit delivers professional-grade boat leveling and performance enhancement for vessels 28 to 48 feet. This complete system features 12" x 24" marine-grade stainless steel tabs with a revolutionary continuous rolled and pinned hinge design that eliminates welded weak points while providing superior strength and durability.

Each precision-engineered electric actuator operates whisper-quiet and maintenance-free, with no hydraulic fluid to leak or service. The fully sealed non-metallic housing protects all components from corrosion and requires no through-hull installation. The internal pressure equalization system and integrated brake mechanism prevent unwanted tab movement during operation or when reversing.

Key Features:

• 12 gauge 304 stainless steel tabs with continuous rolled and pinned hinge construction
• SLC-11 one-touch LED control panel for effortless trim tab adjustment
• Fully sealed electric actuators rated to 1000 lbs push force
• Upper ram seal positioned above waterline to prevent barnacle damage
• Internal brake system maintains tab position under power or when backing down
• Corrosion-proof non-metallic actuator housing with UV protection
• No hydraulic fluid eliminates leak risk and maintenance requirements

Technical Specifications:

• Trim Tab Dimensions: 12" x 24" (30 x 61 cm)
• Recommended Boat Length: 28' to 48' (8.5 to 14.5 m)
• Tab Material: 12 gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23 feet (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Panel Dimensions: 3" x 3" (77 x 77 mm)
• Control Panel Cutout: 2.25" x 2.5" (57 x 64 mm)
• Control Operating Voltage: 12V or 24V

Kit Includes:

• Two (2) 12" x 24" stainless steel trim tabs
• Two (2) electric actuators with 23-foot cables
• One (1) SLC-11 one-touch LED control panel
• Installation manual and mounting hardware
