The Lectrotab XKASL12X9 is a professional-grade stainless steel trim tab system designed for boats 18 to 29 feet in length. This complete kit features 12" x 9" trim tabs constructed from 12-gauge 304 stainless steel, paired with maintenance-free electric actuators and an intuitive one-touch LED control system.
Superior Stainless Steel Construction:
Each trim tab utilizes a continuous rolled and pinned hinge design that eliminates welding for exceptional strength and durability. The 304 stainless steel construction ensures maximum corrosion resistance in harsh marine environments.
Advanced Actuator Design:
The precision-engineered actuators deliver quiet, reliable operation without hydraulics—meaning no oil leaks or fluid maintenance. The non-metallic permanently sealed housing contains all components externally on the transom, eliminating the need for internal boat installation. An upper ram seal location prevents damage from fouling or barnacle growth, while the internal brake system prevents unwanted tab movement when underway or backing down. Each actuator is load tested to 1000 lbs of force and features an internal pressure equalization system.
One-Touch LED Control:
The SLC-11 one-touch leveling control provides fingertip command of your trim tabs with intuitive LED indicators, making boat leveling effortless.
Key Features:
- Continuous rolled and pinned hinge for superior strength without welding
- Non-hydraulic design with zero oil leaks or fluid maintenance
- Corrosion-proof non-metallic actuator housing
- Internal brake prevents tab drift when running or reversing
- Upper seal location protected from fouling damage
- Quiet electric operation with 1000 lb tested force
- 2.25" actuator stroke length for precise control
- 23-foot actuator cables for flexible installation
Technical Specifications:
- Trim Tab Dimensions: 12" L × 9" W (30 × 23 cm)
- Recommended Boat Length: 18' to 29' (5.5 to 8.5 m)
- Material: 12-gauge 304 stainless steel
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Cable Length: 23' (7 m)
- Actuator Height: 11.875" (302 mm)
- Control Switch: 3" × 3" rocker switch (12V or 24V compatible)
- Switch Cutout: 2.25" H × 2.5" W (57-64 mm)

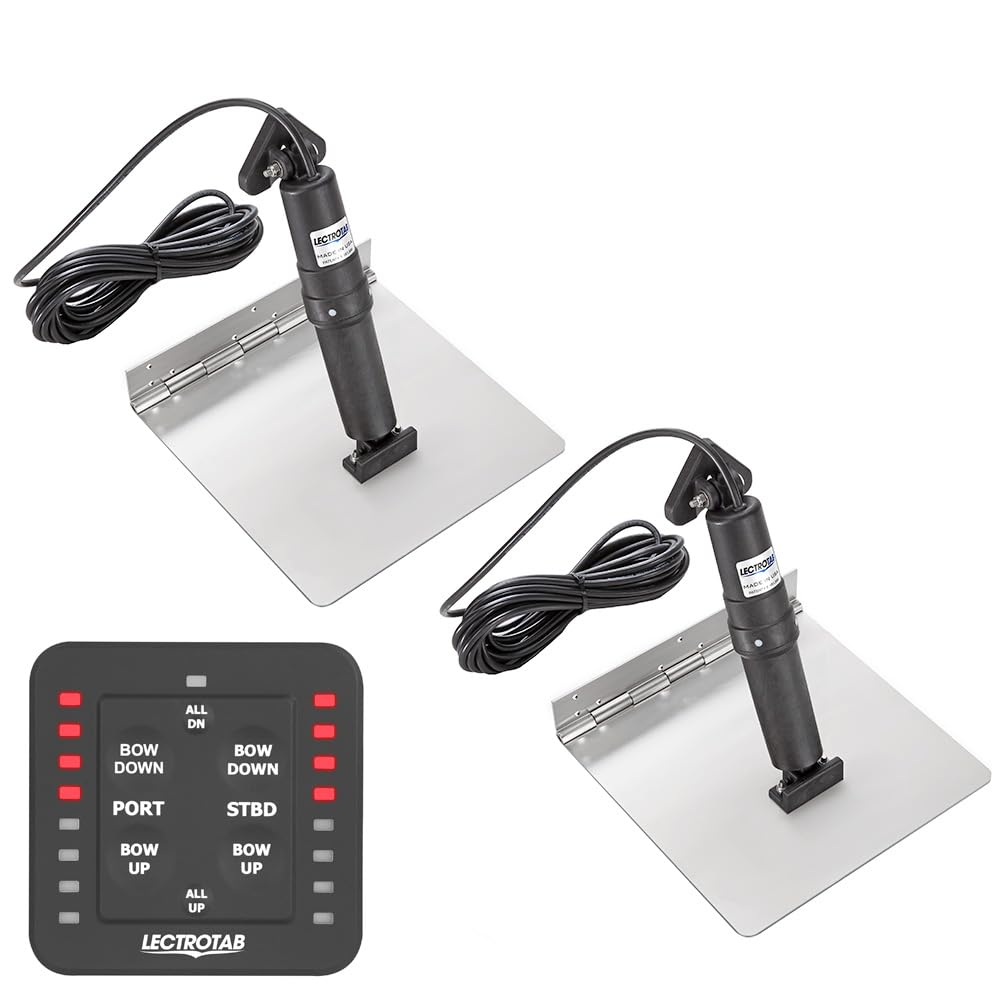

Complete Kit Includes:
- Two (2) 12" × 9" stainless steel trim tabs
- Two (2) electric actuators with 23' cables
- One (1) SLC-11 one-touch LED control
- Installation hardware and instruction manual
