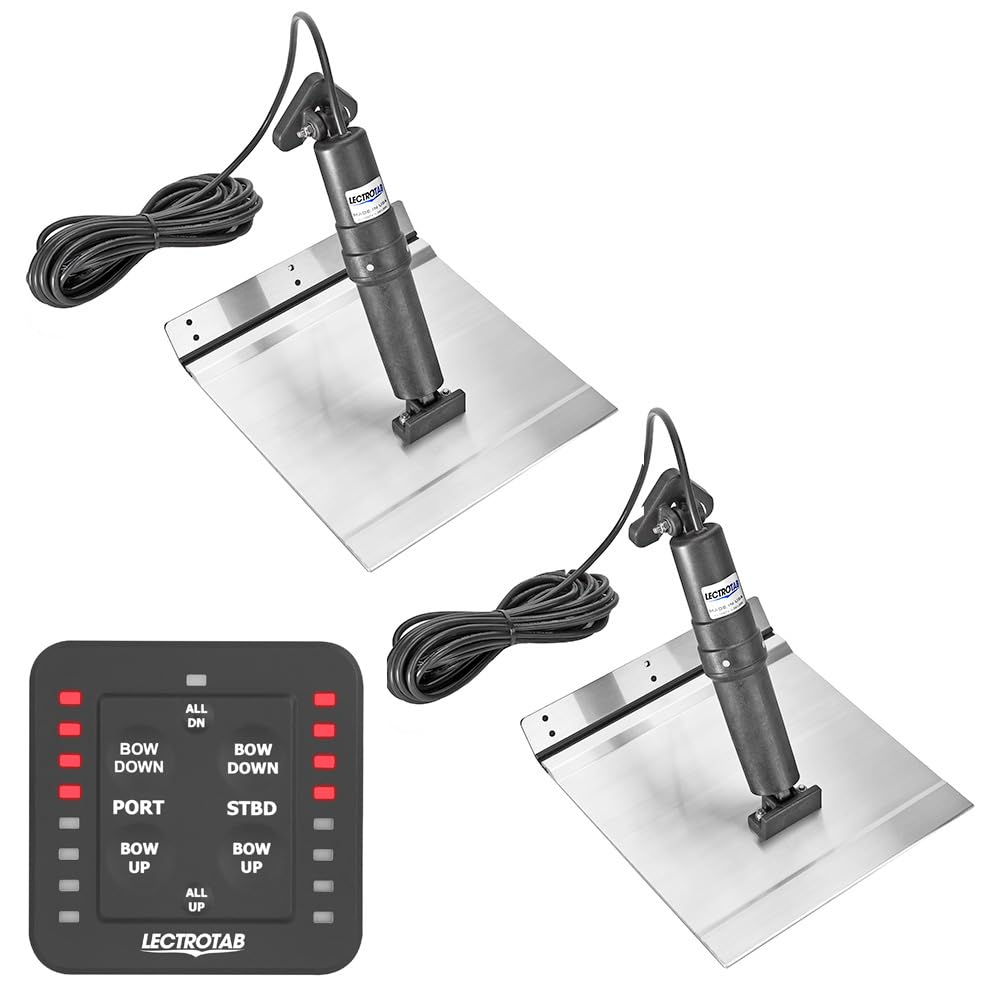

The Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers reliable boat leveling and performance enhancement for aluminum and fiberglass hulled boats from 16 to 25 feet. This complete kit includes two 9" x 12" marine-grade aluminum alloy trim tabs with maintenance-free electric actuators and an intuitive one-touch LED control system.
Durable Construction Built for Marine Environments:
Each trim tab is fabricated from marine-grade 6005-T5 aluminum alloy with equivalent strength to 10-gauge stainless steel, then sealed with a corrosion-resistant epoxy coating for long-lasting durability. The tabs feature an extremely strong "no-break" polypropylene hinge that has been cycle-tested over 300,000 times to a 90-degree bend without failure, ensuring reliable operation season after season.
Maintenance-Free Electric Actuators:
Unlike hydraulic trim tab systems, these precision-engineered electric actuators require no maintenance and have no hydraulic oil to leak. Each actuator is housed in a non-metallic, permanently sealed enclosure that cannot corrode and won't deteriorate from sun or underwater exposure. The actuators deliver 1000 lbs of push force with a 2.25" stroke length and feature an internal brake system that prevents unwanted tab movement when underway or backing down. An internal pressure equalization system and upper ram seal location protect against damage from fouling or barnacle growth.
Easy Installation and Operation:
The system is completely self-contained with no components requiring installation inside the boat. Each actuator includes a 23-foot cable for flexible mounting options. The one-touch LED rocker switch control (SLC-11) provides fingertip control of your trim tabs with straightforward BOW UP/BOW DOWN operation. The switch measures 3" x 3" and requires a 2.25" x 2.5" mounting cutout.
Key Features:
- Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
- Ultra-durable polypropylene hinge tested to 300,000+ cycles
- Maintenance-free electric actuators with no hydraulic oil to leak
- 1000 lbs push force per actuator with 2.25" stroke length
- Non-corrosive, permanently sealed actuator housing
- Internal brake system prevents unwanted tab movement
- Quiet operation for enhanced onboard comfort
- Complete kit with no interior boat components required
- 23-foot actuator cables for flexible installation
Technical Specifications:
- Trim Tab Size: 9" x 12" (23 x 30 cm) per tab
- Recommended Boat Length: 16' to 25' (5 to 7.5 m)
- Tab Material: Marine-grade 6005-T5 aluminum alloy
- Actuator Voltage: 12V DC
- Actuator Stroke Length: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 m)
- Actuator Vertical Height: 11.875" (302 mm)
- Control Switch Dimensions: 3" x 3" (77 x 77 mm)
- Control Switch Cutout: 2.25" x 2.5" (57-64 mm)
- Control Switch Operating Voltage: 12V or 24V
Kit Includes:
- Two (2) 9" x 12" aluminum alloy trim tabs
- Two (2) electric actuators with 23' cables
- One (1) SLC-11 one-touch LED rocker control switch
- Installation manual
