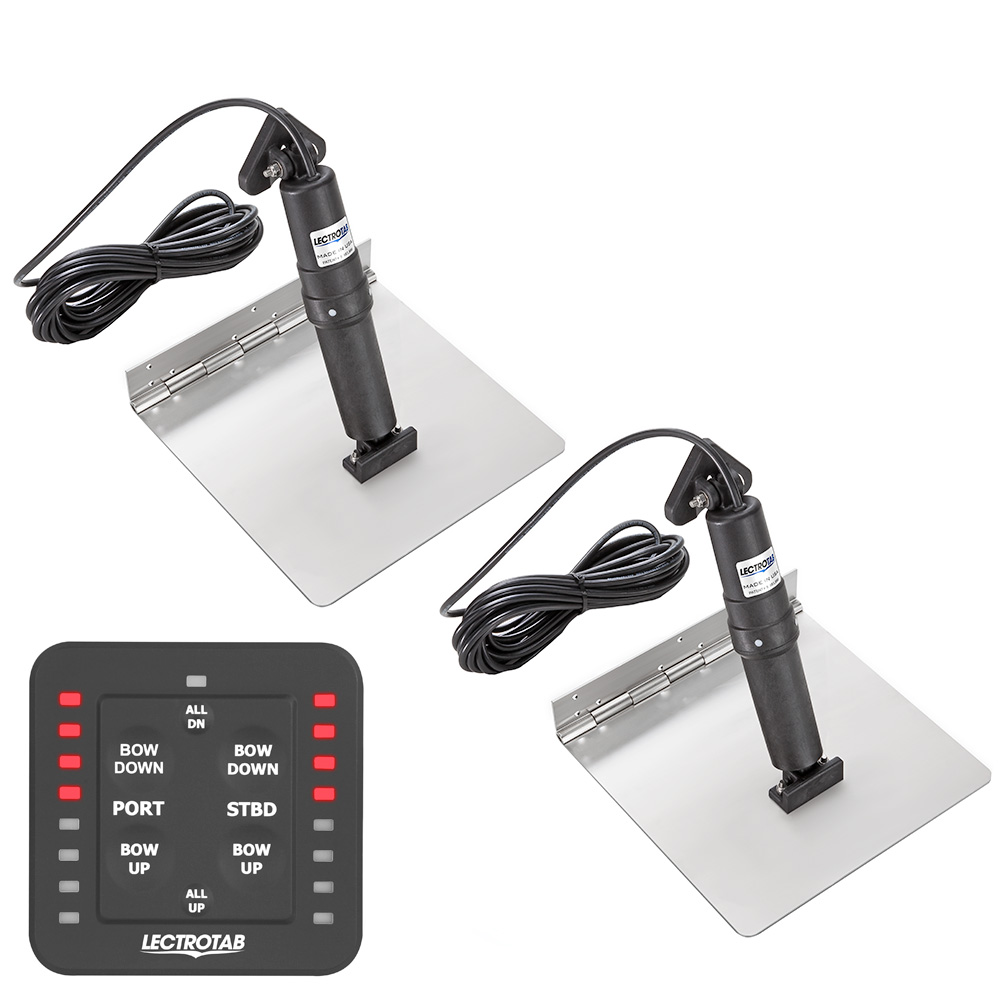

Lectrotab XKASL9X18 Stainless Steel Trim Tab Kit 9x18 with SLC-11 One-Touch Control

The Lectrotab XKASL9X18 is a premium stainless steel trim tab system designed for boats 21 to 30 feet in length. This complete kit features 9" x 18" tabs constructed from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge design that eliminates welding for superior strength and reliability.

Unlike hydraulic trim tab systems, Lectrotab's electric actuators are completely maintenance-free with no oil to leak or hydraulic lines to service. Each actuator is precision-engineered to deliver 1,000 lbs of push force while operating quietly and efficiently. The non-metallic, permanently sealed housing protects all components from corrosion and requires no interior installation—everything mounts externally on the transom.

Key Features:

• Continuous rolled and pinned hinge construction provides exceptional strength without welding
• Upper ram seal location protected from damage due to fouling or barnacle growth
• Internal pressure equalization system maintains optimal performance
• Built-in brake system prevents unwanted tab movement when underway or reversing
• Quiet, reliable electric actuation with 2.25" stroke length
• Fully load-tested actuators rated to 1,000 lbs push force
• Non-metallic external housing resists corrosion and UV deterioration
• SLC-11 One-Touch LED control for intuitive, fingertip operation

Technical Specifications:

• Trim Tab Dimensions: 9" x 18" (23 x 46 cm)
• Recommended Boat Length: 21' to 30' (6.5 to 9 m)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Switch Dimensions: 3" x 3" (77 x 77 mm)
• Control Switch Cutout: 2.25" x 2.5" (57 x 64 mm)
• Control Switch Voltage: 12V or 24V compatible

Kit Includes:

• Two (2) 9" x 18" stainless steel trim tabs
• Two (2) electric actuators with 23' cables
• One (1) SLC-11 One-Touch LED control switch
• Complete instruction manual

This self-contained trim tab system delivers precise boat control, improved planing performance, enhanced fuel efficiency, and a smoother ride in all conditions.
