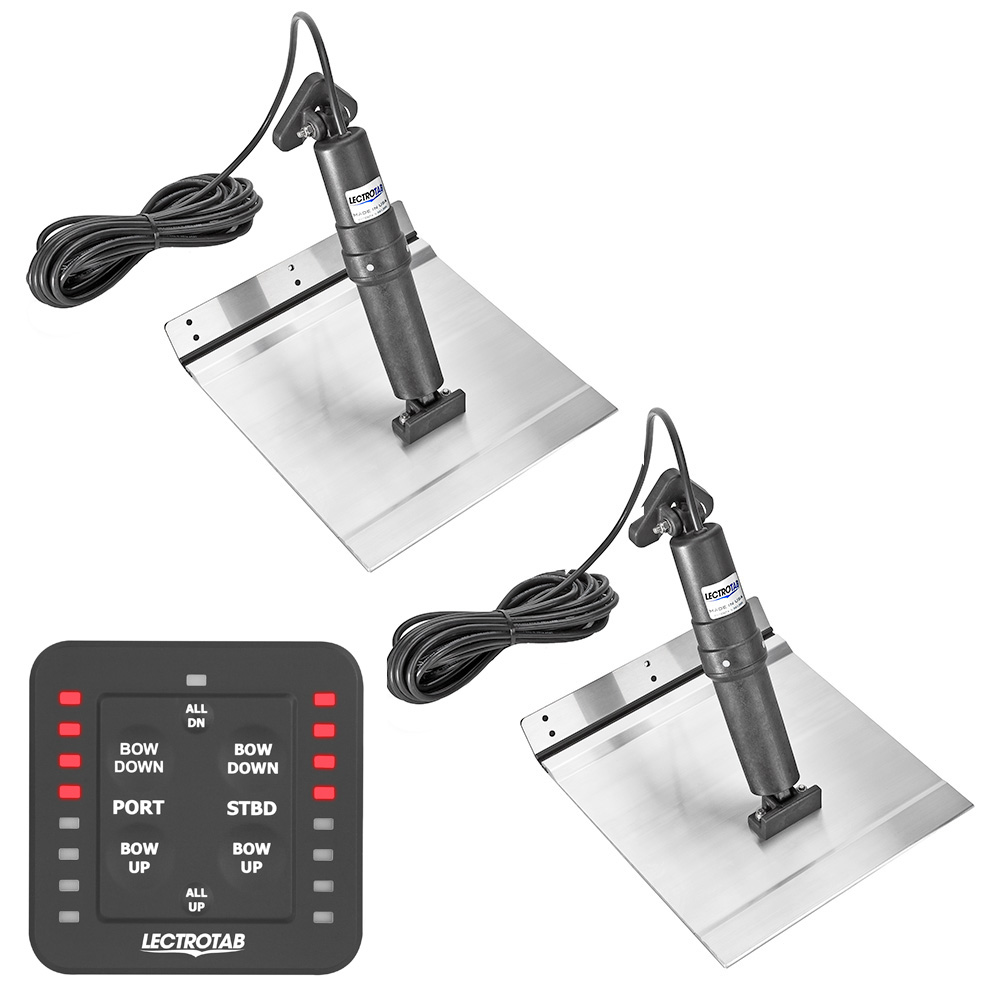

Lectrotab XKASL9X18A 9x18 Aluminum Alloy Trim Tab Kit with SLC-11 One-Touch Control

The Lectrotab XKASL9X18A is a complete 9" x 18" aluminum alloy trim tab system designed specifically for aluminum hulled boats, though it provides an economical solution for all boat types. This kit combines precision-engineered electromechanical actuators with marine-grade aluminum tabs to deliver reliable trim control without the maintenance headaches of hydraulic systems.

Advanced Design Features:

• Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating for maximum durability
• Ultra-strong "no-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Equivalent strength to 10-gauge stainless steel construction
• Non-hydraulic, maintenance-free electromechanical actuators—no oil to leak or maintain
• Internal brake system prevents unwanted tab movement while underway or backing down
• Upper ram seal protected from barnacle growth and fouling damage
• Internal pressure equalization system for reliable operation
• Actuators fully load tested to push 1,000 lbs of force
• Non-metallic sealed housing resists corrosion and UV deterioration
• Whisper-quiet operation for enhanced onboard comfort

One-Touch LED Control:

The included SLC-11 control panel provides intuitive, fingertip control of your trim tabs with LED indicators for precise tab positioning. The rocker switch design makes trim adjustments effortless while monitoring system status at a glance.

Technical Specifications:

• Trim Tab Dimensions: 9" x 18" (23 x 46 cm) per tab
• Recommended Boat Length: 21' to 30' (6.5 to 9 m)
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23 ft (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Switch: 3" x 3" (77 x 77 mm), operates on 12V or 24V
• Mounting Cutout: 2.25" x 2.5" (57 x 64 mm)

Complete Kit Includes:

• Two (2) aluminum alloy trim tabs with polypropylene hinges
• Two (2) electromechanical actuators with 23 ft cables
• One (1) SLC-11 One-Touch LED control panel
• Installation manual with mounting hardware

This fully self-contained system requires no internal boat components, making installation straightforward. The combination of corrosion-free construction, precise positioning, and maintenance-free operation makes this kit ideal for serious boaters seeking reliable trim control.
