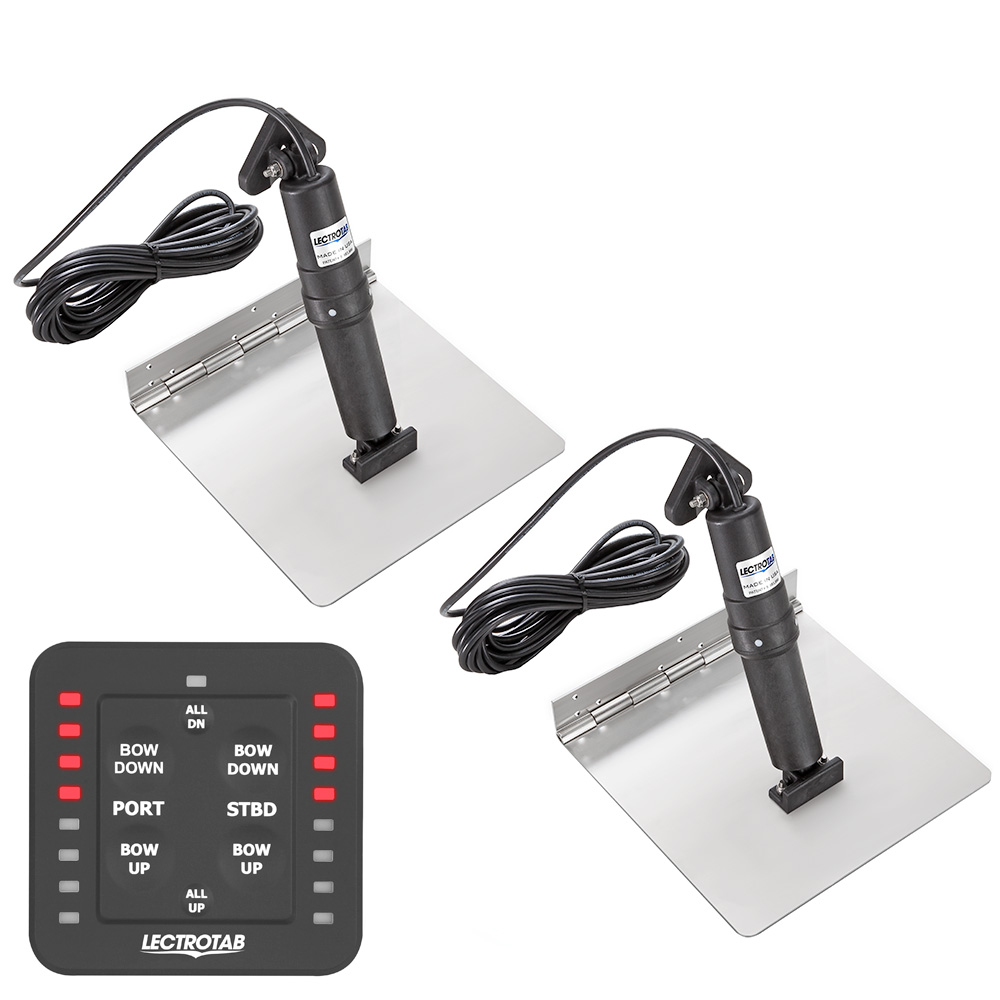

Lectrotab XKASL9X24 Stainless Steel Trim Tab Kit 9x24 with SLC-11 Control

The Lectrotab XKASL9X24 is a premium stainless steel trim tab kit designed for boats 24 to 37 feet in length. This complete system includes 9" x 24" stainless steel tabs, dual electric actuators, and the intuitive SLC-11 one-touch LED control for effortless trim adjustment at the helm.

Advanced Stainless Steel Construction:

Lectrotab's stainless steel tabs are fabricated from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge design. This engineering approach eliminates weld points, providing superior strength and durability while resisting corrosion in harsh marine environments.

Maintenance-Free Electric Actuators:

Unlike hydraulic trim tab systems, Lectrotab's electric actuators require no maintenance and eliminate the risk of oil leaks. Each actuator is housed in a permanently sealed, non-metallic housing that won't corrode. The system features an internal pressure equalization design and an integrated brake system that prevents unwanted tab movement while underway or backing down. All components mount externally—no through-hull installation required inside the boat.

Key Features:

• Continuous rolled and pinned hinge eliminates welding for added strength
• Upper ram seal location protected from fouling and barnacle damage
• Internal pressure equalization and brake system for reliable operation
• Quiet operation with precision tab positioning
• Each actuator load-tested to 1,000 lbs of force
• Non-metallic actuator housing resists corrosion and UV deterioration
• One-touch LED control for simple, intuitive operation

Technical Specifications:

• Trim Tab Dimensions: 9" x 24" (23 x 61 cm)
• Recommended Boat Length: 24' to 37' (7 to 11 m)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Height: 11.875" (302 mm)
• Control Switch Dimensions: 3" x 3" (77 x 77 mm)
• Control Mounting Cutout: 2.25" x 2.5" (57 x 64 mm)
• Control Operating Voltage: 12V or 24V

Kit Includes:

• Two (2) 9" x 24" stainless steel trim tabs
• Two (2) electric actuators with 23' cables
• One (1) SLC-11 one-touch LED control
• Installation manual
