Lectrotab XKASL9X24A 9x24 Aluminum Alloy Trim Tab Kit with SLC-11 Control

Manufacturer

Lectrotab

Picture for manufacturer Lectrotab

Part Number

XKASL9X24A
8 reviews
03/11/2036 7:16 PM
Sale Price

$1,266.32

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Add To Cart

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

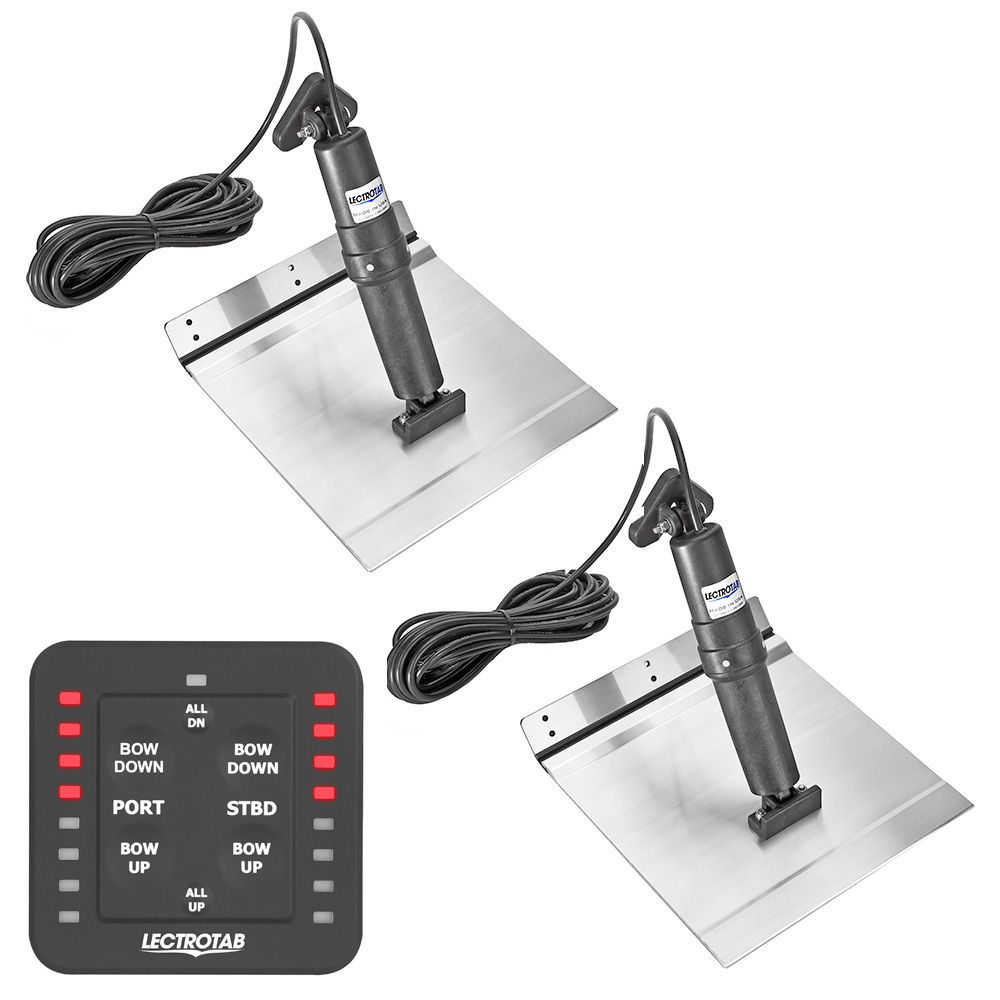

The Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers reliable, maintenance-free boat leveling and control for vessels 24 to 37 feet. Designed specifically for aluminum hulled boats but suitable for all marine applications, this complete kit features 9" x 24" trim tabs fabricated from marine-grade 6005-T5 aluminum alloy with corrosion-resistant epoxy coating.

Key Features:

  • Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
  • "No-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
  • Non-hydraulic, oil-free design eliminates leaks and maintenance concerns
  • Precision actuators with 2.25" stroke deliver 1,000 lbs of push force
  • Internal brake system prevents unwanted tab movement when underway or backing down
  • Upper ram seal location protected from fouling and barnacle damage
  • Non-metallic permanently sealed actuator housing resists corrosion and UV deterioration
  • SLC-11 one-touch LED control provides intuitive fingertip operation
  • Quiet operation with accurate tab positioning
  • Self-contained design with no components required inside the boat

Technical Specifications:

  • Trim Tab Dimensions: 9" x 24" (23 x 61 cm)
  • Recommended Boat Length: 24' to 37' (7 to 11 m)
  • Tab Material: Marine-grade 6005-T5 aluminum alloy with strength equivalent to 10-gauge stainless steel
  • Actuator Voltage: 12V DC
  • Actuator Stroke: 2.25" (57 mm)
  • Actuator Cable Length: 23' (7 m)
  • Actuator Vertical Height: 11.875" (302 mm)
  • Control Switch Dimensions: 3" x 3" (77 x 77 mm)
  • Control Switch Cutout: 2.25" x 2.5" (57 x 64 mm)
  • Control Operating Voltage: 12V or 24V

Kit Includes:

  • Two (2) aluminum alloy trim tabs
  • Two (2) actuators with 23' cables
  • One (1) SLC-11 one-touch LED control
  • Installation manual

The internal pressure equalization system and fully sealed construction ensure long-term reliability in demanding marine environments. All actuators are factory load-tested and ready for straightforward transom installation.
