Lectrotab XKASL9X9 XKA Stainless Steel Trim Tab Kit 9x9 with One-Touch Control

The Lectrotab XKA Stainless Steel Trim Tab Kit delivers unmatched strength and reliability for boats 14 to 19 feet in length. Featuring 9" x 9" stainless steel tabs with a continuous rolled and pinned hinge design, this system eliminates welding points that can become potential failure areas. Combined with precision-engineered electric actuators, this kit provides quiet, maintenance-free operation without the hassles of hydraulic systems.

Unlike hydraulic trim tabs, the Lectrotab XKA system is completely oil-free, eliminating leak concerns. The actuator assembly is housed in a non-metallic, permanently sealed housing that resists corrosion and won't deteriorate from sun or underwater exposure. All components mount externally, so no installation is required inside the boat. The internal brake system prevents unwanted tab movement when underway or backing down, while the pressure equalization system and protected upper ram seal location ensure long-term durability.

The included one-touch LED control panel puts complete trim tab control at your fingertips, making boat leveling and performance adjustment simple and intuitive.

Key Features:

• Continuous rolled and pinned hinge provides superior strength without welded joints
• Upper ram seal location protected from damage by fouling or barnacle growth
• Internal pressure equalization system for reliable performance
• Internal brake system prevents unwanted movement underway or when reversing
• Whisper-quiet electric operation
• Actuators load tested to 1,000 lbs of force
• Non-metallic housing resists corrosion and UV deterioration
• Oil-free electric system eliminates hydraulic leaks
• External mounting only—no interior installation required

Technical Specifications:

• Trim Tab Size: 9" x 9" (23 x 23 cm)
• Recommended Boat Length: 14' to 19' (4 to 6 M)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 M)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Switch Dimensions: 3" x 3" (77 x 77 mm)
• Control Switch Cutout: 2.25" x 2.5" (57 x 64 mm)
• Control Switch Voltage: 12V or 24V

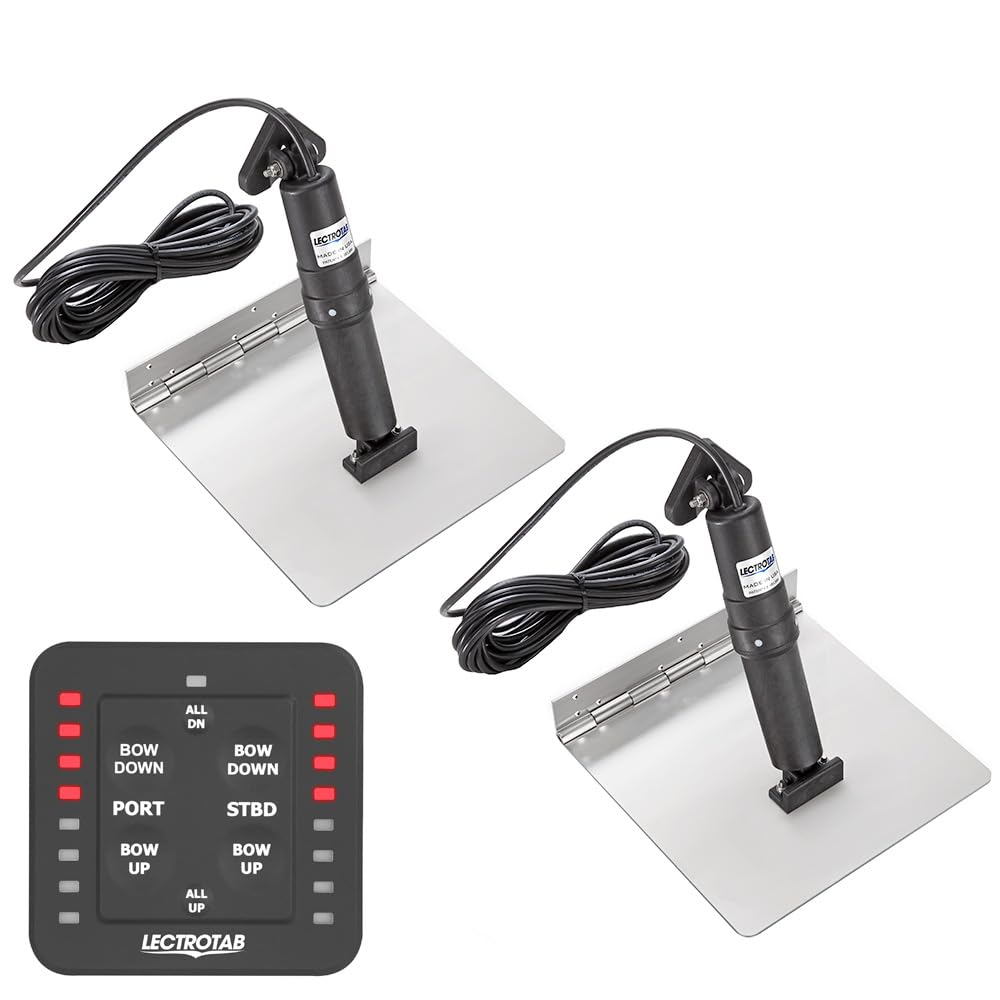

Kit Includes:

• One (1) one-touch LED control panel
• Two (2) 9" x 9" stainless steel trim tabs
• Two (2) electric actuators with 23' (7 M) cables
• Installation hardware and instruction manual
