Lectrotab XKASL9X9A 9x9 Aluminum Alloy Trim Tab Kit with One-Touch Control

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is specifically engineered for aluminum-hulled vessels and provides an economical, maintenance-free solution for all boat types. These 9" x 9" trim tabs feature a robust "no-break" polypropylene hinge that has been cycle-tested over 300,000 times to a 90-degree bend without failure, and each tab is sealed with a corrosion-resistant epoxy coating for long-lasting durability.

The kit includes precision-engineered electric actuators housed in non-metallic, permanently sealed enclosures that deliver quiet operation and accurate tab positioning. Unlike hydraulic systems, these actuators are completely oil-free with no risk of leaks, and they're fully self-contained for straightforward installation with no interior boat components required. Each actuator is load-tested to push 1,000 lbs of force and features an internal brake system that prevents unwanted tab movement when underway or backing down.

The included one-touch LED control panel puts complete trim tab operation at your fingertips, allowing you to quickly adjust your boat's running attitude for improved performance, fuel efficiency, and handling in varying conditions.

Key Features:

• Marine-grade 6005-T5 aluminum alloy construction with strength equivalent to 10-gauge stainless steel
• Corrosion-resistant epoxy coating protects tabs in harsh marine environments
• Ultra-durable polypropylene hinge tested to 300,000+ cycles
• Non-hydraulic electric actuators eliminate oil leaks and reduce maintenance
• Internal pressure equalization system and upper ram seal location prevents damage from fouling
• Internal brake system locks tabs in position during operation
• Non-metallic external structure won't corrode or deteriorate from sun or water exposure
• Quiet, smooth operation with precise positioning control

Technical Specifications:

• Trim Tab Dimensions: 9" x 9" (23 x 23 cm)
• Recommended Boat Length: 14' to 19' (4 to 6 m)
• Tab Material: Marine-grade 6005-T5 aluminum alloy
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Actuator Push Force: 1,000 lbs (tested)
• Control Panel Dimensions: 3" x 3" (77 x 77 mm)
• Control Panel Cutout: 2.25" x 2.5" (57 x 64 mm)
• Control Panel Voltage: 12V or 24V

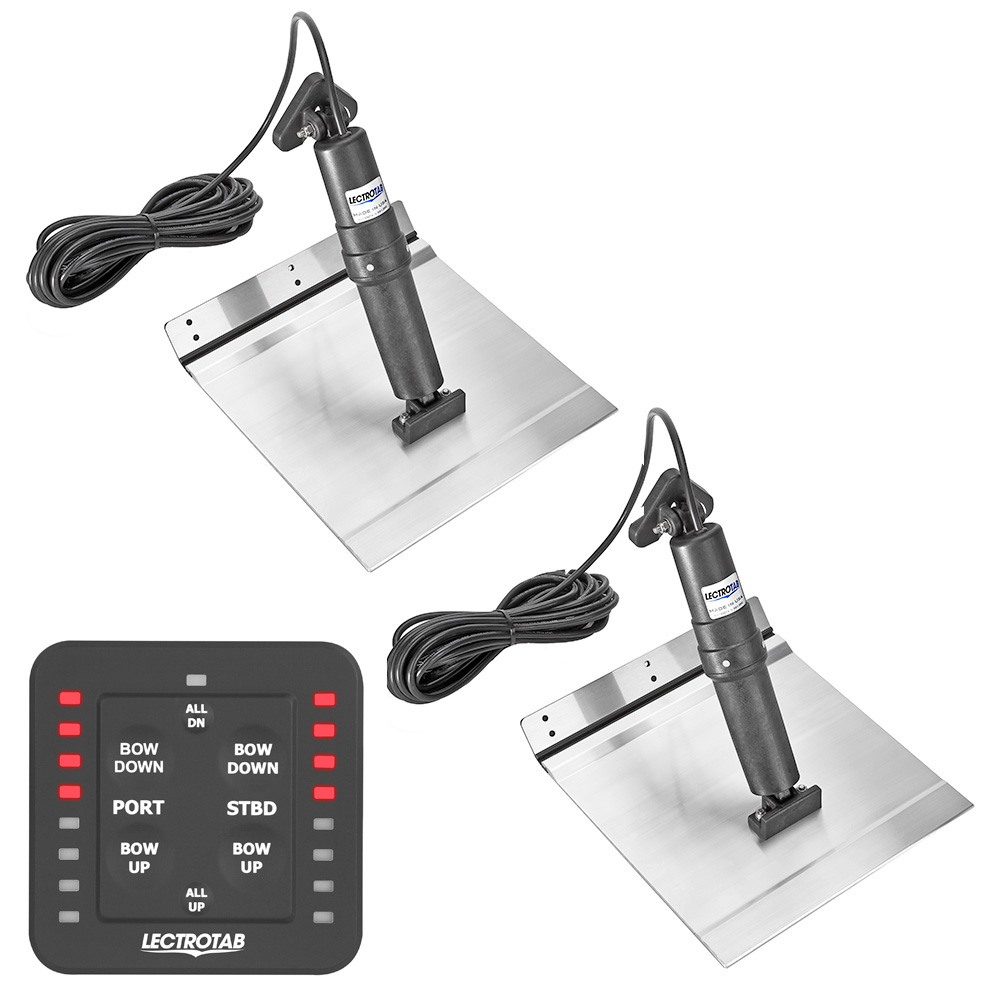

Kit Includes:

• Two (2) 9" x 9" aluminum alloy trim tabs
• Two (2) electric actuators with 23' cables
• One (1) one-touch LED control panel
• Installation hardware and instruction manual
