Lectrotab XKASML12X18A 12x18 Aluminum Alloy Trim Tab Kit with MLC-1 Control

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is specifically engineered for aluminum-hulled boats and provides an economical, high-performance solution for vessel leveling and control. This complete kit features 12" x 18" aluminum alloy trim tabs with a precision electric actuator system and the advanced MLC-1 microprocessor control.

Advanced Design Features:

• Marine-grade 6005-T5 aluminum alloy construction with corrosion-resistant epoxy coating
• Proprietary "no-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Non-hydraulic, maintenance-free electric actuator system with no oil to leak
• Upper ram seal design protected from damage due to fouling or barnacle growth
• Internal pressure equalization system for reliable operation
• Internal brake system prevents unwanted tab movement while underway or backing down
• Actuators fully load-tested to 1,000 lbs of push force
• Non-metallic housing that will not corrode or deteriorate from sun or water exposure
• Quiet operation with precision tab positioning

MLC-1 Control System:

• Microprocessor-based control moves both tabs simultaneously with single-button operation
• LED tab position indicators automatically dim in darkness and brighten in sunlight
• Compatible with 12V or 24V systems
• Compact 3.15" x 3.07" mounting dimensions with 2" cutout

Technical Specifications:

• Trim Tab Size: 12" x 18" (30 x 46 cm)
• Recommended Boat Length: 20' to 40' (6 to 12 m)
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Operating Voltage: 12V DC

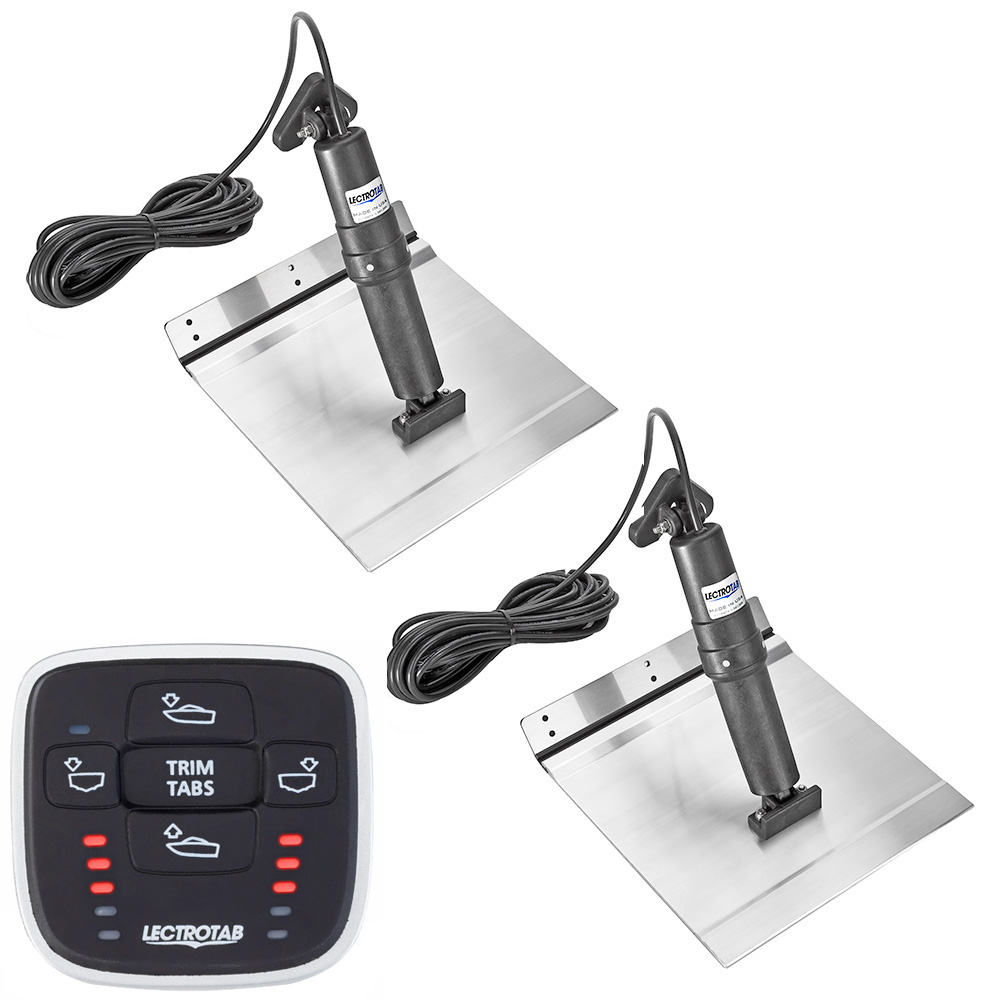

Kit Includes:

• Two (2) aluminum alloy trim tabs
• Two (2) electric actuators with 23' cables
• One (1) MLC-1 manual leveling control
• Complete instruction manual

This fully self-contained system requires no interior boat installation and provides superior lift force, accurate positioning, and whisper-quiet operation for boats from 20 to 40 feet in length.
