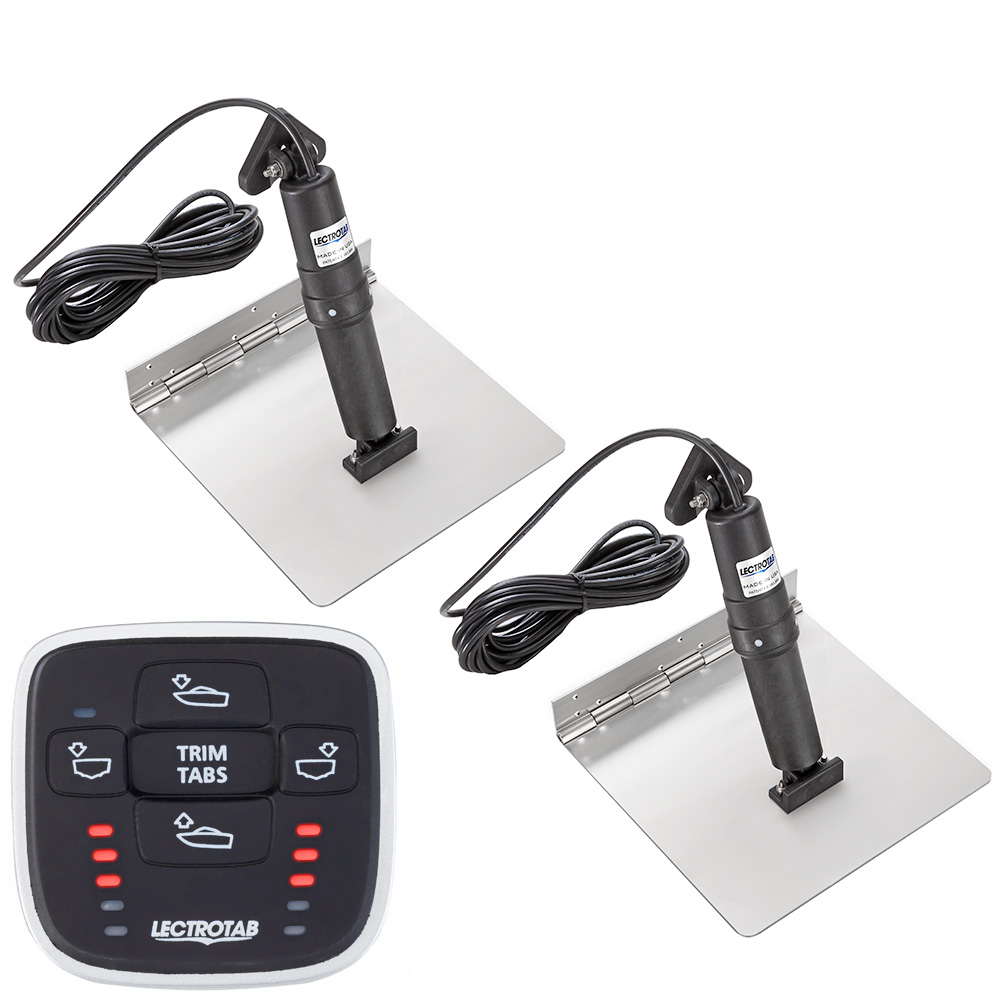

The Lectrotab XKA stainless steel trim tab kit delivers precision boat control with a maintenance-free, non-hydraulic design. This complete system includes 12" x 24" stainless steel tabs, dual electric actuators, and the advanced MLC-1 microprocessor control for effortless tab adjustment.
Advanced Stainless Steel Construction:
Fabricated from 12-gauge, 304 stainless steel, each tab features a continuous rolled and pinned hinge that provides superior strength without welding. This robust design ensures long-lasting durability in harsh marine environments.
Precision Electric Actuators:
The precision-engineered actuators deliver quiet, reliable operation with accurate tab positioning and maximum lift force. Each actuator is fully load-tested to push 1,000 lbs of force and features an internal brake system that prevents unwanted tab movement when underway or backing down. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth, while the internal pressure equalization system ensures consistent performance.
MLC-1 Microprocessor Control:
The included MLC-1 control allows simultaneous operation of both tabs with a single button touch. LED tab position indicators automatically adjust brightness, dimming in darkness and brightening in sunlight for optimal visibility in all conditions.
Key Features:
- No hydraulic oil means zero risk of leaks or environmental contamination
- Non-metallic permanently sealed housing prevents corrosion
- Fully self-contained actuators require no internal boat installation
- Maintenance-free design with no regular servicing required
- Standard or low-profile transom mounting bracket options
- UV-resistant external structure will not deteriorate in sun or underwater
Technical Specifications:
- Trim Tab Dimensions: 12" x 24" (30 x 61 cm)
- Recommended Boat Length: 28' to 48' (8.5 to 14.5 m)
- Tab Material: 12-gauge, 304 stainless steel
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 m)
- Actuator Vertical Height: 11.875" (302 mm)
- Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
- Control Cutout: 2" (50 mm) diameter
- Control Voltage: 12V or 24V
Kit Includes:
- Two (2) 12" x 24" stainless steel trim tabs
- Two (2) electric actuators with 23' cables
- One (1) MLC-1 Manual Leveling Control
- Installation instruction manual
