Lectrotab XKASML12X24A 12x24 Aluminum Trim Tab Kit with MLC-1 Control

The Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers professional-grade boat control with maintenance-free electric actuation. Designed specifically for aluminum hulled boats but suitable for all vessel types, this complete kit includes 12" x 24" trim tabs, dual precision actuators, and the advanced MLC-1 microprocessor control system.

Each tab is fabricated from marine-grade 6005-T5 aluminum alloy and sealed with a corrosion-resistant epoxy coating for maximum durability in harsh saltwater environments. The innovative "no-break" polypropylene hinge has been cycle-tested over 300,000 times to a 90-degree bend without failure, providing strength equivalent to 10-gauge stainless steel.

Key Features:

• Electric actuators with 2.25" stroke length deliver 1000 lbs of push force for precise tab positioning
• Non-hydraulic design eliminates oil leaks and hydraulic system maintenance
• Internal brake system prevents unwanted tab movement when underway or backing down
• Upper ram seal location protected from damage due to fouled rams or barnacle growth
• Internal pressure equalization system ensures reliable operation
• Non-metallic actuator housing cannot corrode and resists UV degradation
• Whisper-quiet operation during adjustment
• 23-foot actuator cables provide flexible installation options

MLC-1 Control System:

• Microprocessor-based control moves both tabs simultaneously with single-button operation
• LED tab position indicators automatically dim in darkness and brighten in sunlight
• Compact 3.15" x 3.07" panel fits standard 2" mounting hole
• Compatible with 12V or 24V electrical systems

Technical Specifications:

• Trim Tab Size: 12" x 24" (30 x 61 cm)
• Recommended Boat Length: 28' to 48' (8.5 to 14.5 m)
• Tab Material: Marine-grade 6005-T5 aluminum alloy with epoxy coating
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Operating Voltage: 12V or 24V

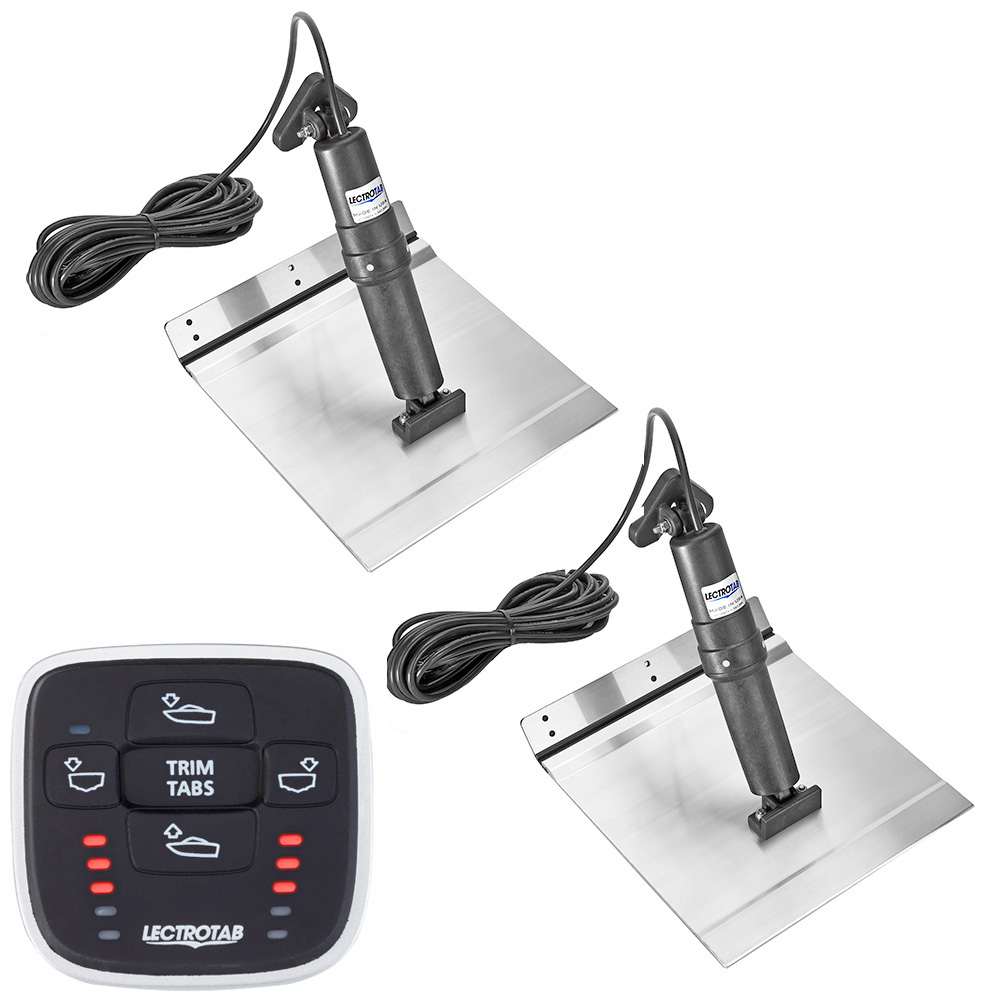

Complete Kit Includes:

• One (1) MLC-1 manual leveling control panel
• Two (2) aluminum alloy trim tabs (12" x 24")
• Two (2) electric actuators with 23' cables
• Comprehensive instruction manual

No internal boat components required for installation. All actuator assemblies are self-contained in permanently sealed, non-metallic housings for maximum reliability and simple transom mounting.
