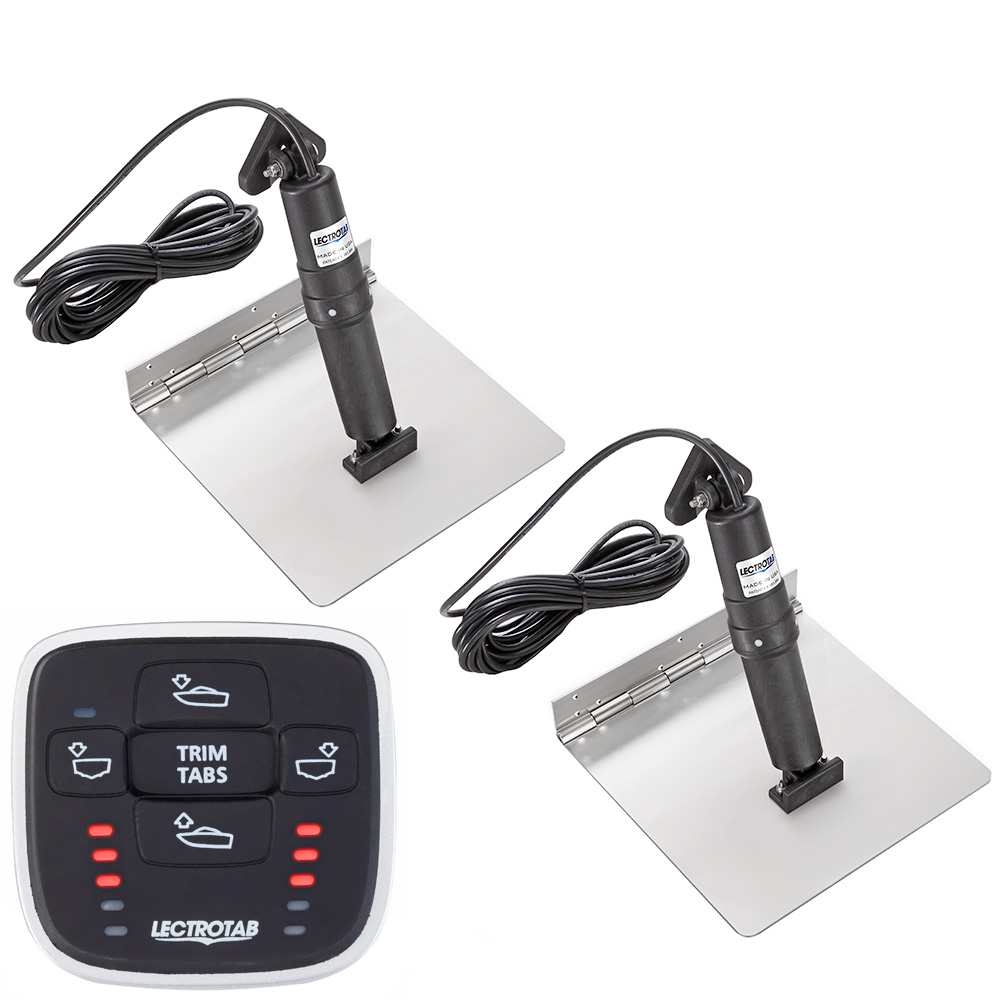

Lectrotab XKASML12X9 Stainless Steel Trim Tab Kit 12x9 with MLC-1 Control

The Lectrotab XKA stainless steel trim tab kit delivers superior strength and reliability for boats 18 to 29 feet. This complete system combines precision-engineered actuators with an advanced microprocessor-based control for effortless boat leveling and performance optimization.

Advanced Stainless Steel Construction:

Fabricated from 12-gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge design that eliminates welding for maximum durability. The non-hydraulic, maintenance-free actuators are housed in permanently sealed, non-metallic casings that won't corrode or deteriorate. Unlike hydraulic systems, there's no oil to leak, and all components mount externally—nothing needs installation inside your boat.

MLC-1 Microprocessor Control:

The included Manual Leveling Control allows simultaneous operation of both tabs with a single button touch. LED position indicators automatically adjust brightness based on ambient light, dimming in darkness and brightening in sunlight for optimal visibility in all conditions.

Key Features:

• Continuous rolled and pinned hinge provides exceptional strength without welding
• Upper ram seal positioned above fouling zone—protected from barnacle damage
• Internal pressure equalization system for reliable operation
• Internal brake system prevents unwanted tab movement while underway or backing down
• Whisper-quiet operation for comfortable cruising
• Actuators load-tested to 1,000 lbs of push force
• Corrosion-proof non-metallic housing resists sun and saltwater damage

Technical Specifications:

• Trim Tab Size: 12" x 9" (30 x 23 cm)
• Recommended Boat Length: 18' to 29' (5.5 to 8.5 m)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
• Control Cutout: 2" (50 mm) diameter
• Control Operating Voltage: 12V or 24V DC

Complete Kit Includes:

• One (1) MLC-1 Manual Leveling Control
• Two (2) 12" x 9" stainless steel trim tabs
• Two (2) actuators with 23' cables
• Installation instruction manual
