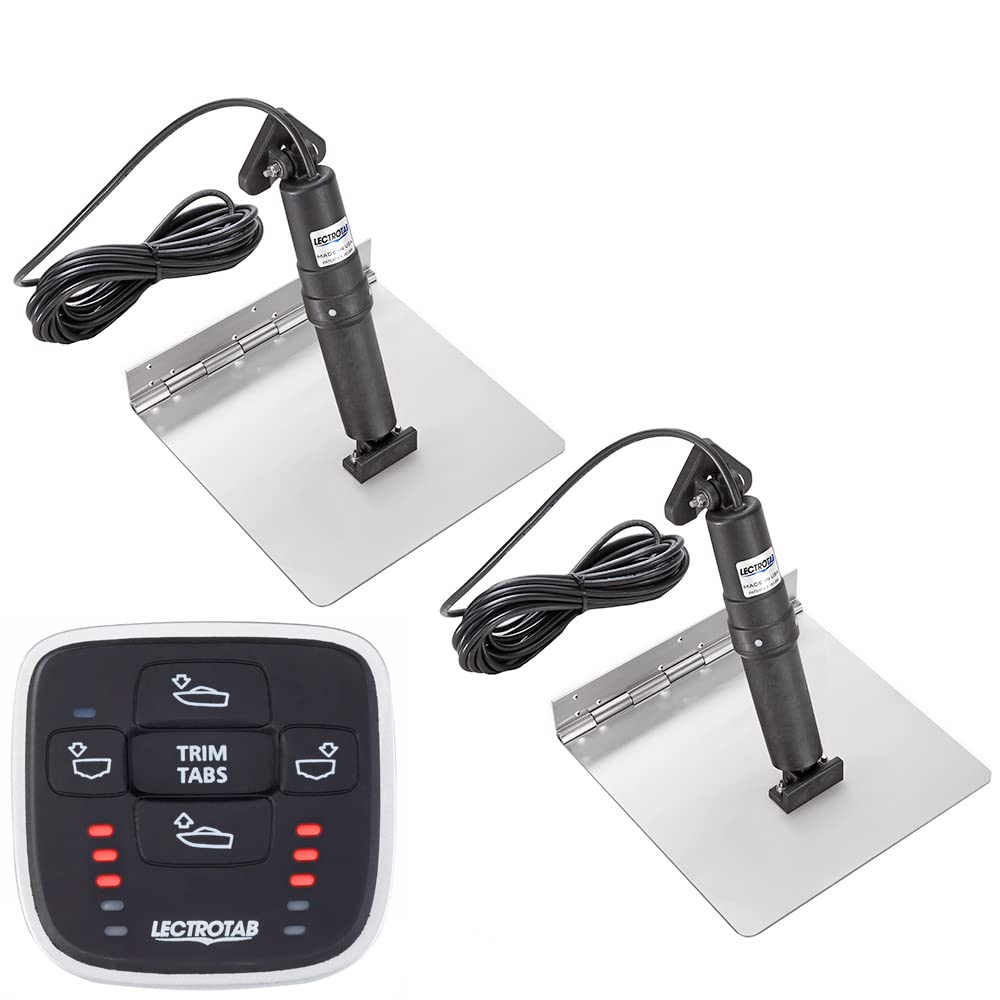

The Lectrotab XKA Stainless Steel Trim Tab Kit combines precision engineering with maintenance-free reliability. This complete system includes 9" x 12" stainless steel trim tabs, dual electric actuators, and the advanced MLC-1 microprocessor control for effortless boat handling and improved performance.
Superior Stainless Steel Construction:
Each tab is fabricated from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge design that eliminates welding for enhanced strength and durability. This innovative construction ensures maximum reliability in demanding marine environments.
Maintenance-Free Electric Actuation:
Unlike hydraulic systems, these electric actuators feature a non-hydraulic design with no oil to leak or maintain. The fully sealed, non-metallic housing is completely self-contained and requires no internal boat installation. An internal brake system prevents unwanted tab movement under way or when backing down, while the upper ram seal location resists damage from fouling or barnacle growth.
MLC-1 Microprocessor Control:
The intuitive MLC-1 control moves both tabs simultaneously with a single button press. LED position indicators automatically adjust brightness based on ambient light conditions, dimming in darkness and brightening in sunlight for optimal visibility.
Key Features:
- Continuous rolled and pinned hinge provides superior strength without welding
- Internal pressure equalization system prevents seal damage
- Quiet operation with precision tab positioning
- Actuators load tested to 1,000 lbs of force
- Corrosion-proof non-metallic housing resists UV deterioration
- No hydraulic fluid means zero leak potential
- 23-foot actuator cables for flexible installation
Technical Specifications:
- Trim Tab Dimensions: 9" x 12" (23 x 30 cm)
- Recommended Boat Length: 16' to 25' (5 to 7.5 m)
- Tab Material: 12-gauge 304 stainless steel
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 m)
- Actuator Vertical Height: 11.875" (302 mm)
- Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
- Control Cutout: 2" (50 mm) diameter
- Control Voltage: 12V or 24V compatible
Complete Kit Includes:
- One (1) MLC-1 Manual Leveling Control
- Two (2) 9" x 12" stainless steel trim tabs
- Two (2) electric actuators with 23' cables
- Instruction manual
