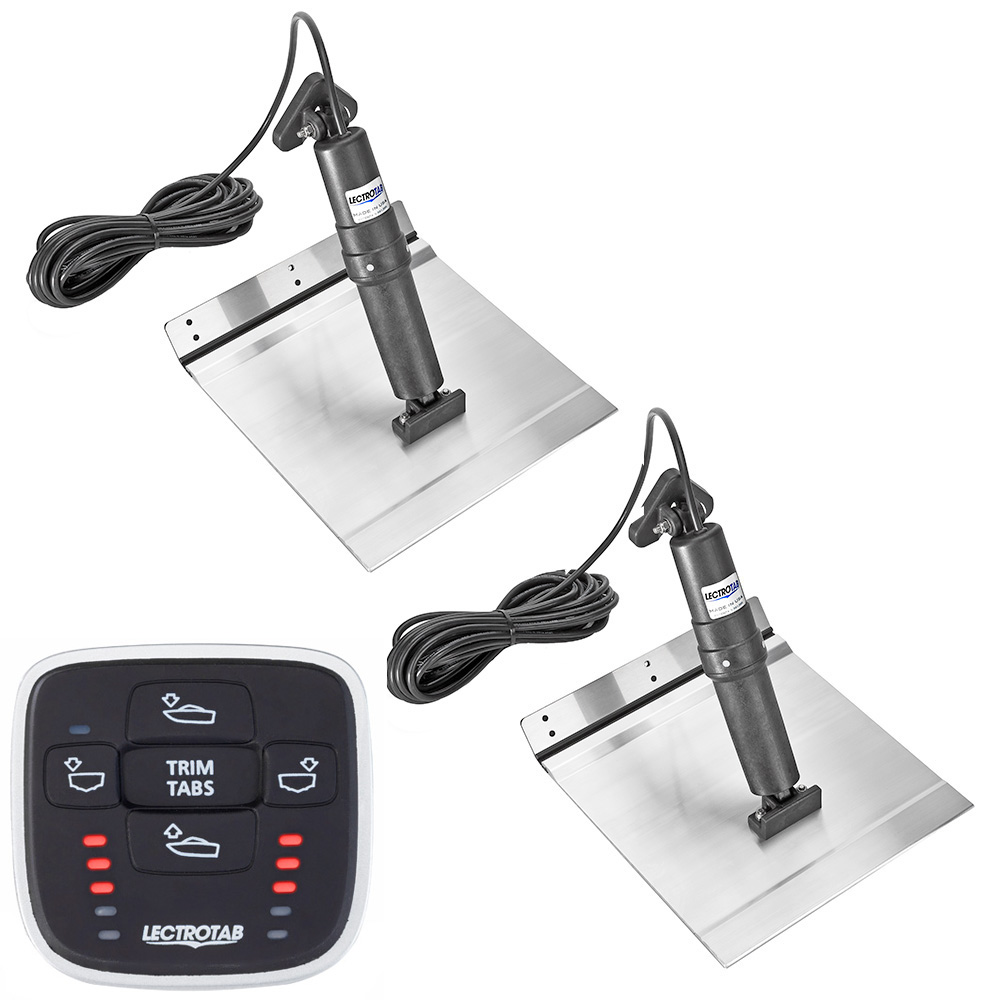

The Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers professional-grade boat control and performance for aluminum-hulled vessels from 16 to 25 feet. This complete kit combines corrosion-resistant 9" x 12" aluminum alloy trim tabs with precision electric actuators and an advanced MLC-1 microprocessor control system for effortless operation.
Engineered specifically for aluminum hulls, these marine-grade 6005-T5 aluminum alloy tabs feature an extremely strong "no-break" polypropylene hinge that has been cycle-tested over 300,000 times to 90-degree bends without failure. All tabs are sealed with a corrosion-resistant epoxy coating for maximum durability in harsh marine environments, offering strength equivalent to 10-gauge stainless steel.
The electric actuator system provides quiet, maintenance-free operation with no hydraulic oil to leak or service. Each actuator pushes up to 1,000 lbs of force through a 2.25" stroke length and features an internal brake system that prevents unwanted tab movement while underway or backing down. The non-metallic, permanently sealed housing contains all components externally—no installation required inside the boat. An internal pressure equalization system and upper ram seal location protect against damage from fouling or barnacle growth.
MLC-1 Control Features:
- Microprocessor-based single-button control moves both tabs simultaneously
- LED tab position indicators with automatic dimming in darkness and brightening in sunlight
- Operates on 12V or 24V systems
- Compact 3.15" x 3.07" panel with 2" mounting hole cutout
Technical Specifications:
- Trim Tab Dimensions: 9" x 12" (23 x 30 cm)
- Recommended Boat Length: 16' to 25' (5 to 7.5 M)
- Material: Marine Grade 6005-T5 Aluminum Alloy with epoxy coating
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 M)
- Actuator Vertical Height: 11.875" (302 mm)
- Hinge: Polypropylene, tested to 300,000+ cycles

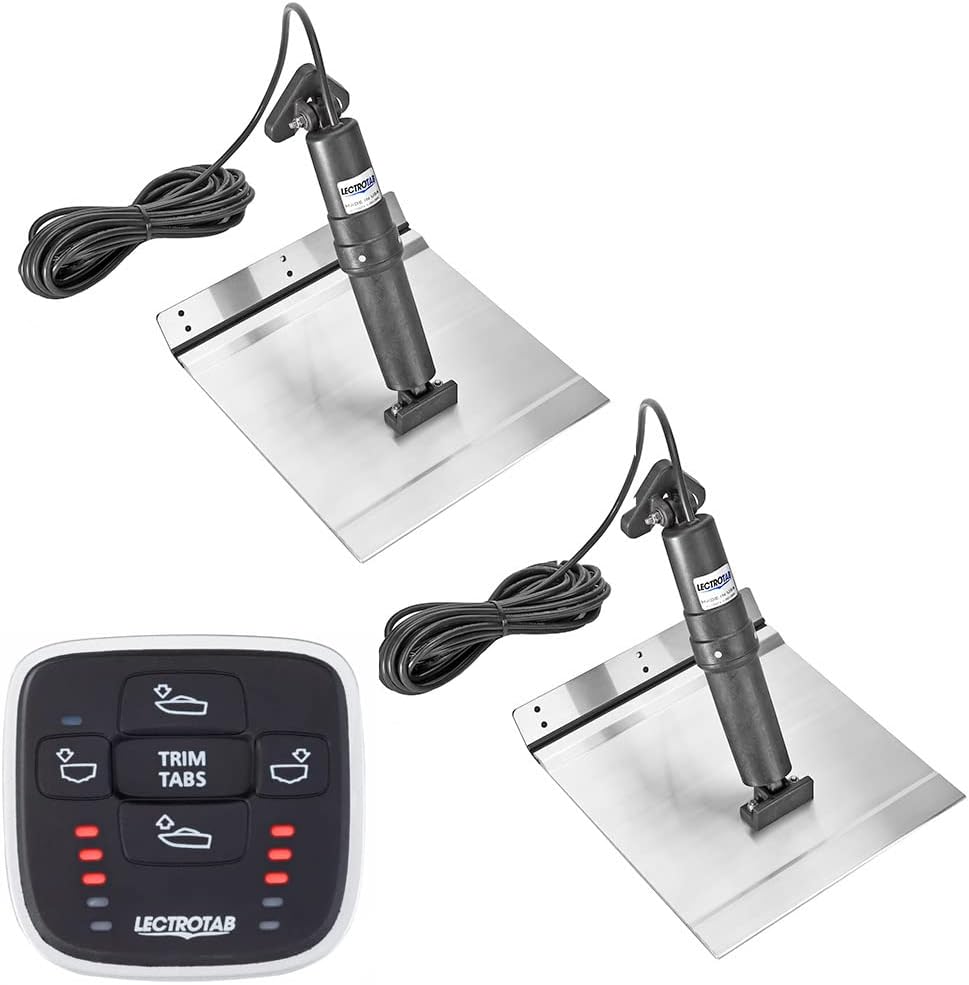

Complete Kit Includes:
- One (1) MLC-1 Manual Leveling Control
- Two (2) Aluminum Alloy trim tabs (9" x 12")
- Two (2) Electric actuators with 23' cables
- Installation hardware and instruction manual
This non-hydraulic trim tab system offers corrosion-free operation, precise tab positioning, maximum lift force, and easy installation with all mounting brackets included. The non-metallic external components will not corrode or deteriorate from sun or underwater exposure.
