Lectrotab XKASML9X24 Stainless Steel Trim Tab Kit with MLC-1 Control 9x24

The Lectrotab XKA Stainless Steel Trim Tab Kit combines premium marine-grade construction with advanced microprocessor control technology. Designed for boats 24' to 37', this complete system delivers precise trim adjustment with maintenance-free reliability.

Unlike hydraulic trim tab systems, the Lectrotab features electric actuators with no oil to leak or hydraulics to maintain. The stainless steel tabs are fabricated with a continuous rolled and pinned hinge design that eliminates welding for superior strength and durability. Each precision-engineered actuator operates quietly and comes sealed in a non-metallic housing that won't corrode in harsh marine environments.

Key Features:

• 304 stainless steel 12-gauge tabs with rolled and pinned hinge construction
• Electric actuators push 1000 lbs of force with 2.25" stroke length
• Internal brake system prevents unwanted tab movement when underway or backing down
• Upper ram seal location protected from fouling and barnacle damage
• Internal pressure equalization system for reliable operation
• Corrosion-proof non-metallic actuator housing

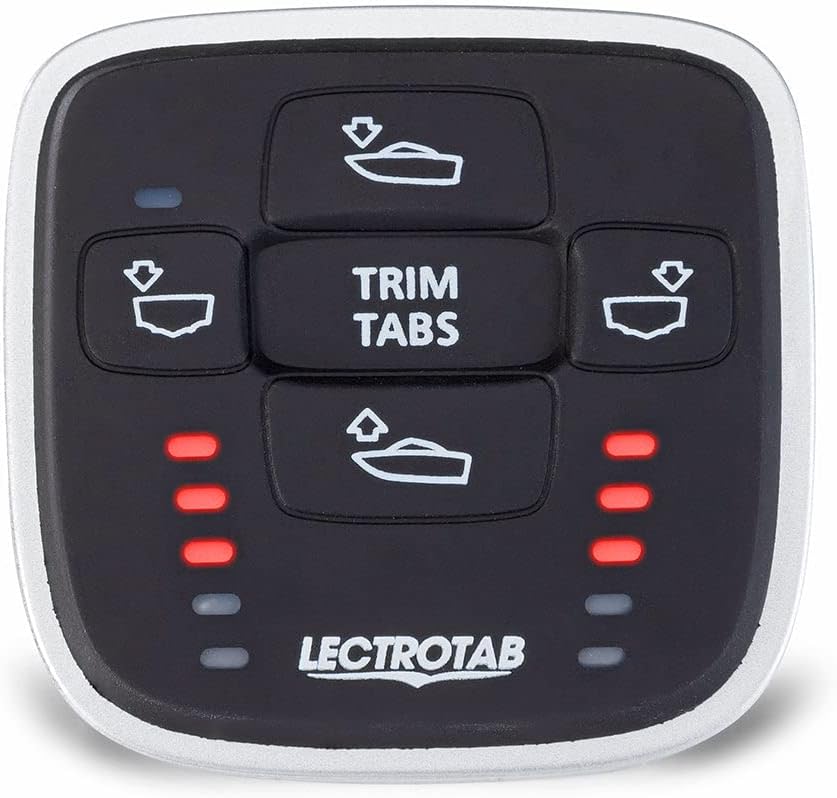

• MLC-1 microprocessor control with single-button simultaneous tab operation
• Auto-dimming LED position indicators adjust to ambient light conditions
• Fully sealed, self-contained design - no components mounted inside boat

Technical Specifications:

• Trim Tab Dimensions: 9" x 24" (23 x 61 cm)
• Recommended Boat Length: 24' to 37' (7 to 11 m)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
• Control Cutout: 2" (50 mm) diameter
• Control Voltage: 12V or 24V DC

Kit Includes:

• Two (2) stainless steel trim tabs - 9" x 24"
• Two (2) electric actuators with 23' cables
• One (1) MLC-1 manual leveling control unit
• Installation hardware and instruction manual
