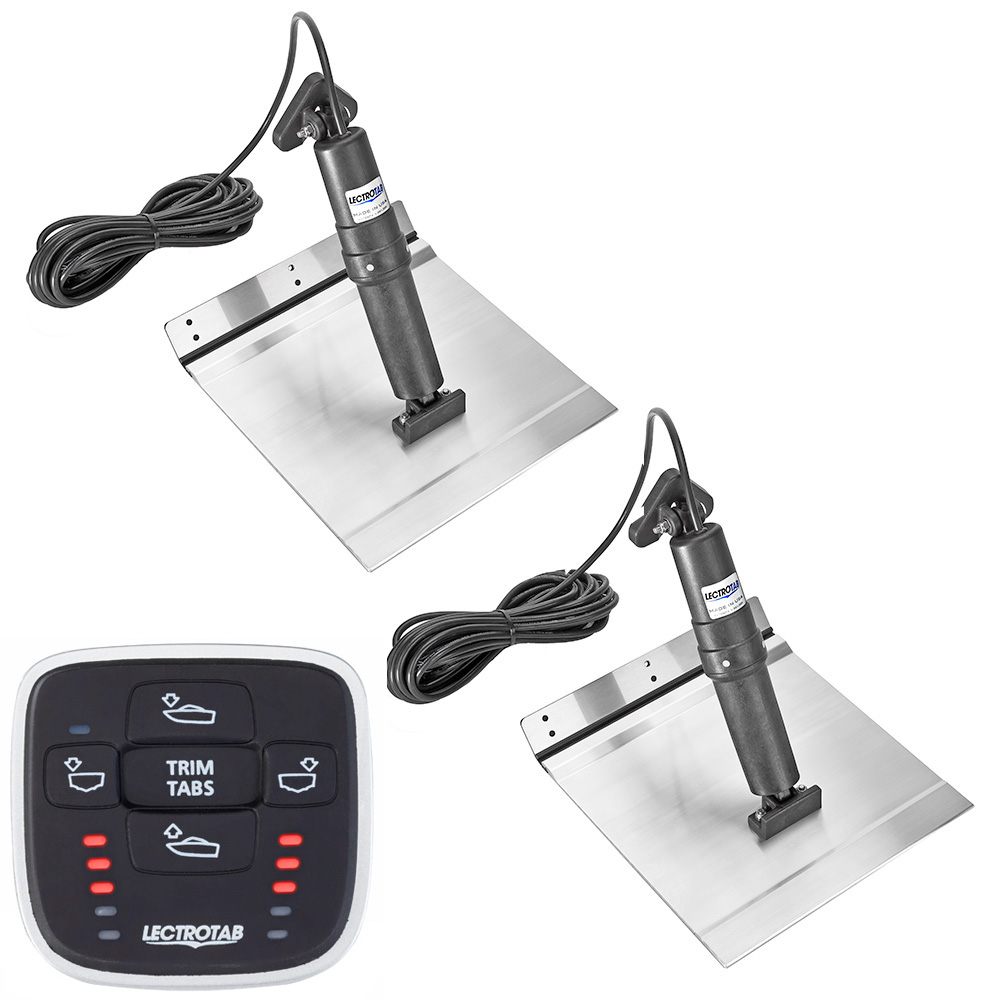

Lectrotab XKASML9X24A XKA 9x24 Aluminum Alloy Trim Tab Kit with MLC-1 Control

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is engineered specifically for aluminum-hulled boats while providing an economical, high-performance solution for all vessels. This complete kit includes 9" x 24" trim tabs with precision electric actuators and the MLC-1 microprocessor control system for effortless boat leveling and performance optimization.

Advanced Design Features:

• Marine-grade 6005-T5 aluminum alloy construction with corrosion-resistant epoxy coating
• Proprietary "no-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Non-hydraulic, maintenance-free actuators with 1000 lbs push force capacity
• Non-metallic permanently sealed housing that cannot corrode or deteriorate
• Internal brake system prevents unwanted tab movement while underway or reversing
• Internal pressure equalization system for reliable operation
• Upper ram seal location protected from fouling and barnacle damage
• Quiet operation with precise tab positioning

MLC-1 Control System:

• Microprocessor-based simultaneous dual-tab control with single-button operation
• LED position indicators with automatic brightness adjustment (dims in darkness, brightens in sunlight)
• Compatible with 12V or 24V DC systems
• Compact 3.15" x 3.07" panel with 2" mounting hole cutout

Technical Specifications:

• Trim Tab Dimensions: 9" x 24" (23 x 61 cm)
• Recommended Boat Length: 24' to 37' (7 to 11 meters)
• Actuator Stroke: 2.25" (57 mm)
• Actuator Vertical Height: 11.875" (302 mm)
• Actuator Voltage: 12V DC
• Pre-wired Cable Length: 23' (7 meters)
• Control Voltage: 12V or 24V DC

Complete Kit Includes:

• Two (2) 9" x 24" aluminum alloy trim tabs
• Two (2) electric actuators with 23-foot cables
• One (1) MLC-1 Manual Leveling Control
• Installation hardware and instruction manual

Unlike hydraulic systems, Lectrotab trim tabs eliminate the risk of fluid leaks and require no internal boat components. The self-contained design ensures easy installation with all actuator components mounted externally on the transom.
