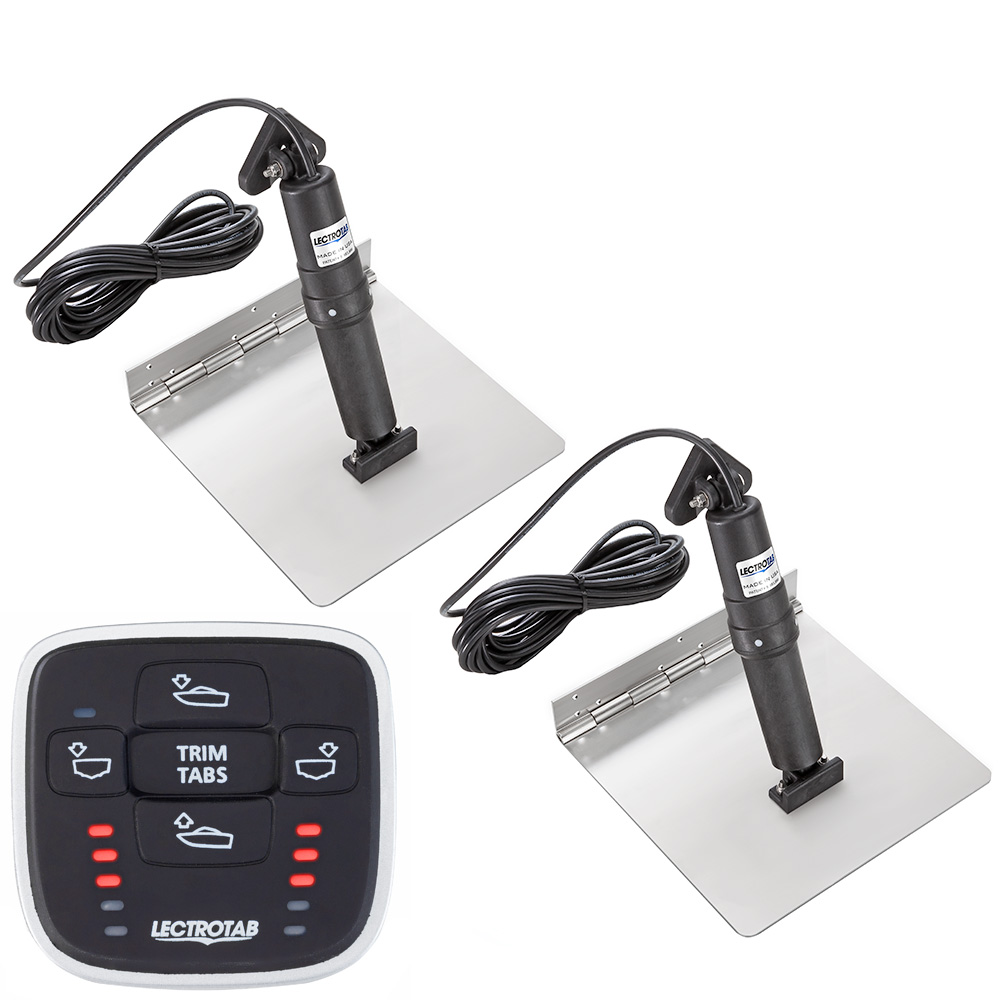

The Lectrotab XKASML9X9 is a complete electric trim tab system designed for boats 14 to 19 feet in length. This kit features 9" x 9" stainless steel trim tabs with the advanced MLC-1 microprocessor-based control for precise boat leveling and improved performance on the water.
Stainless Steel Construction:
Each trim tab is fabricated from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge design that provides exceptional strength without welding. This robust construction ensures long-lasting durability in harsh marine environments.
Advanced Electric Actuators:
The precision-engineered electric actuators deliver quiet, maintenance-free operation without hydraulics. Each actuator is fully load-tested to push 1,000 lbs of force and features a 2.25" stroke length with 23-foot cable reach. The non-metallic permanently sealed housing is completely self-contained and requires no internal boat components. An internal brake system prevents unwanted tab movement when underway or backing down, while the internal pressure equalization system and upper ram seal location resist damage from fouling or barnacle growth.
MLC-1 Microprocessor Control:
The included MLC-1 control allows you to move both tabs simultaneously with a single button for effortless boat leveling. LED position indicators automatically dim in darkness and brighten in sunlight for optimal visibility in all conditions. The compact control operates on 12V or 24V systems and features a 2" mounting hole cutout.
Key Features:
- Continuous rolled and pinned hinge eliminates welding for added strength
- Non-hydraulic design means no oil leaks or hydraulic maintenance
- Corrosion-resistant non-metallic actuator housing
- Internal brake prevents tab movement when not activated
- Upper ram seal protected from fouling and growth damage
- Whisper-quiet operation
- 1,000 lb tested actuator force
- Easy installation with no interior components required
Technical Specifications:
- Trim Tab Size: 9" x 9" (23 x 23 cm)
- Recommended Boat Length: 14' to 19' (4 to 6 M)
- Tab Material: 12-gauge 304 stainless steel
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 M)
- Actuator Vertical Height: 11.875" (302 mm)
- Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
- Control Cutout: 2" diameter (50 mm)
- Control Operating Voltage: 12V or 24V DC
Kit Includes:
- One (1) MLC-1 Manual Leveling Control
- Two (2) 9" x 9" stainless steel trim tabs
- Two (2) electric actuators with 23' cables
- Installation instruction manual
