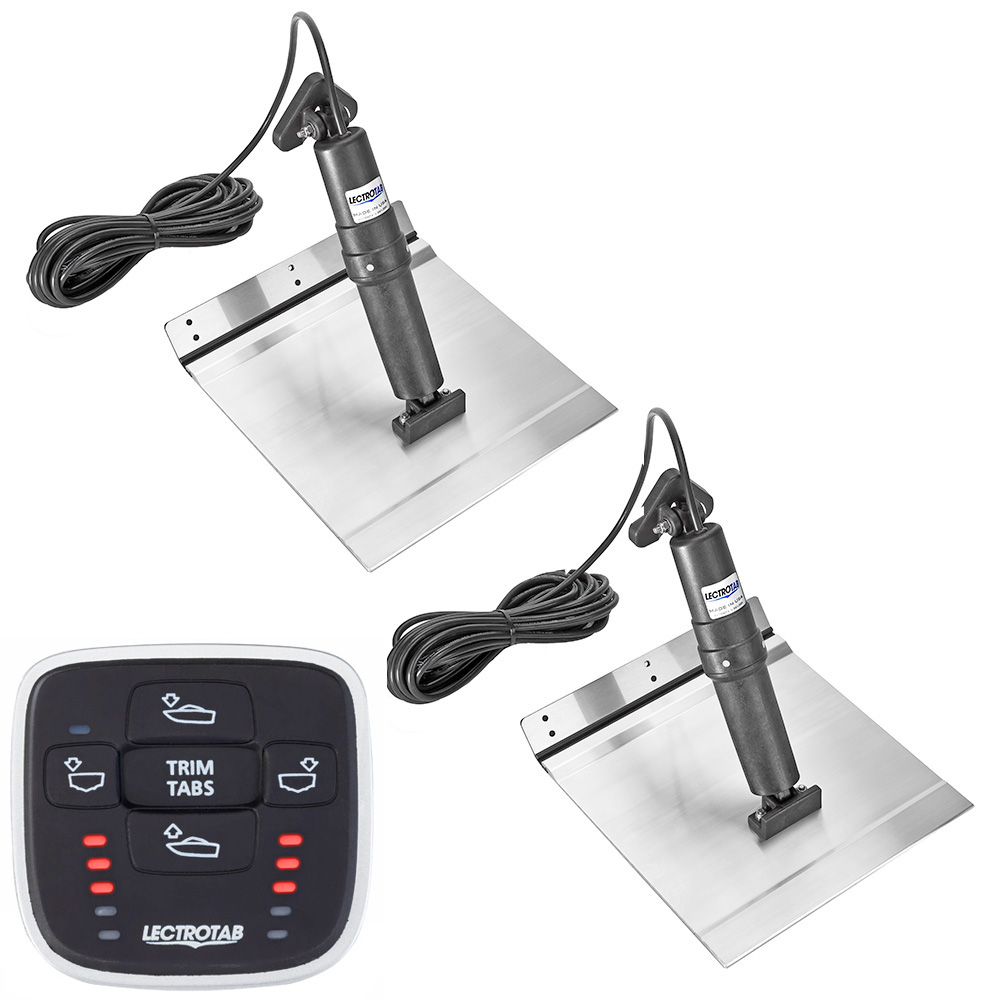

Lectrotab XKASML9X9A Aluminum Alloy Trim Tab Kit with MLC-1 Control 9 x 9

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is specifically engineered for aluminum hulled boats while providing an economical solution for all boat types. This complete 9" x 9" kit combines marine-grade 6005-T5 aluminum alloy tabs with precision actuators and an intelligent MLC-1 microprocessor control system for superior boat handling and fuel efficiency.

Advanced Design Features:

• Marine-grade 6005-T5 aluminum alloy construction with corrosion-resistant epoxy coating
• Extremely strong "no-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Non-hydraulic, maintenance-free design with no oil to leak
• Upper ram seal location protected from fouling and barnacle damage
• Internal pressure equalization system for reliable operation
• Internal brake system prevents unwanted tab movement when underway or backing down
• Non-metallic permanently sealed actuator housing rated to push 1,000 lbs of force
• Quiet operation with totally self-contained design for easy installation

MLC-1 Control System:

• Microprocessor-based control moves both tabs simultaneously with single-button operation
• LED tab position indicators automatically dim in darkness and brighten in sunlight
• Works with 12V or 24V DC systems
• Compact 3.15" x 3.07" panel size with 2" mounting hole cutout

Technical Specifications:

• Trim Tab Dimensions: 9" x 9" (23 x 23 cm)
• Recommended Boat Length: 14' to 19' (4 to 6 meters)
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Vertical Height: 11.875" (302 mm)
• Pre-wired Cable Length: 23 feet (7 meters)
• Operating Voltage: 12V DC (actuators), 12V or 24V DC (control)

Complete Kit Includes:

• Two (2) 9" x 9" aluminum alloy trim tabs with polypropylene hinges
• Two (2) precision actuators with 23-foot pre-wired cables
• One (1) MLC-1 Manual Leveling Control panel
• Comprehensive instruction manual

No internal boat components required for installation. The fully sealed actuator assembly mounts entirely at the transom for simplified setup and corrosion-free performance.
