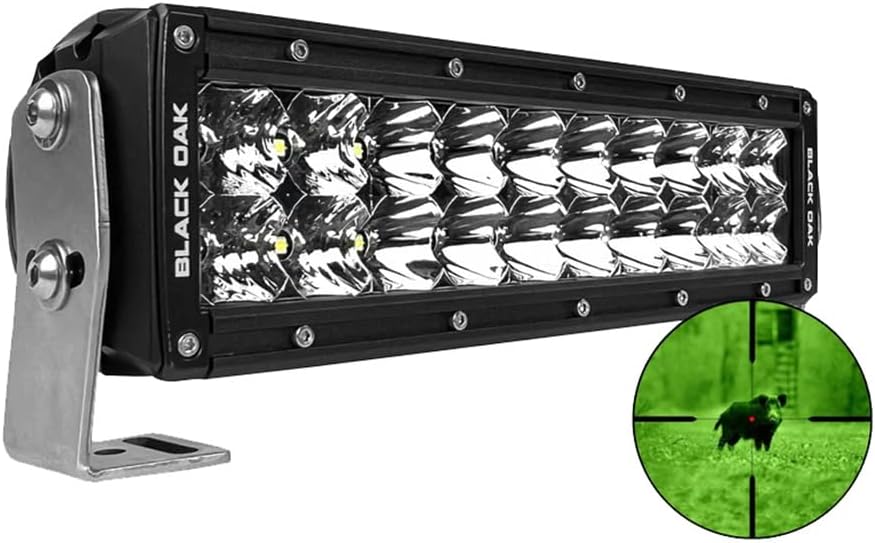

The Black Oak LED 10IR-850 Pro Series 3.0 Infrared LED Light Bar delivers tactical night vision capability for off-road, hunting, and security applications. This 10-inch dual-row light bar utilizes true infrared LEDs operating at 850nm wavelength—not filters—producing energy invisible to the naked eye that illuminates hundreds of yards when paired with night vision optics or infrared cameras.
Enhanced Pro Series 3.0 Technology:
Black Oak's latest Pro Series 3.0 features top-tier LED technology with a 20% increase in output over previous generations, making this one of the brightest infrared light bars available. The combo optics pattern combines flood and spot beam characteristics for optimal coverage and distance.
Key Features:
- 20 high-output infrared LEDs producing 850nm wavelength light
- IP69K rating—the highest protection standard in the industry for complete water and dust immunity
- 360° ceramic protection guards against UV damage, saltwater, and corrosion
- 2-stage Hydrex Seal Lock system ensures full submersibility
- Heavy-duty Dynamax housing provides 4x stronger frame construction
- Premium DuPont powder coating for maximum durability and finish resistance
- Military-grade breather valve prevents internal moisture and fogging
- Lexan lens cover with UV protectant coating
- Multi-position mounting brackets constructed from 9-gauge marine-grade stainless steel
- Deutsch connector for reliable weatherproof electrical connection
Technical Specifications:
- Power Consumption: 100W
- Amperage Draw: 3.15A @ 12V
- LED Count: 20 premium Osram/Cree LEDs
- Beam Pattern: Combo (Flood/Spot)
- Wavelength: 850nm infrared
- Dimensions: 11.4" W x 4.125" H x 3.3" D (with mounting brackets)
- Weight: 6.6 lbs
- IP Rating: IP69K (fully submersible)
- Warranty: Lifetime
Complete Installation Kit Included:
- 10-inch infrared LED light bar
- Heavy-duty stainless steel mounting brackets
- Complete plug-and-play wiring harness with relay, fuse, and switch
- 12-gauge wire
- All stainless steel mounting hardware
Ideal for military operations, tactical security vehicles, night hunting and fishing, wildlife observation, and any nighttime activity requiring covert illumination. When used without night vision equipment, this light bar produces no visible light signature.
