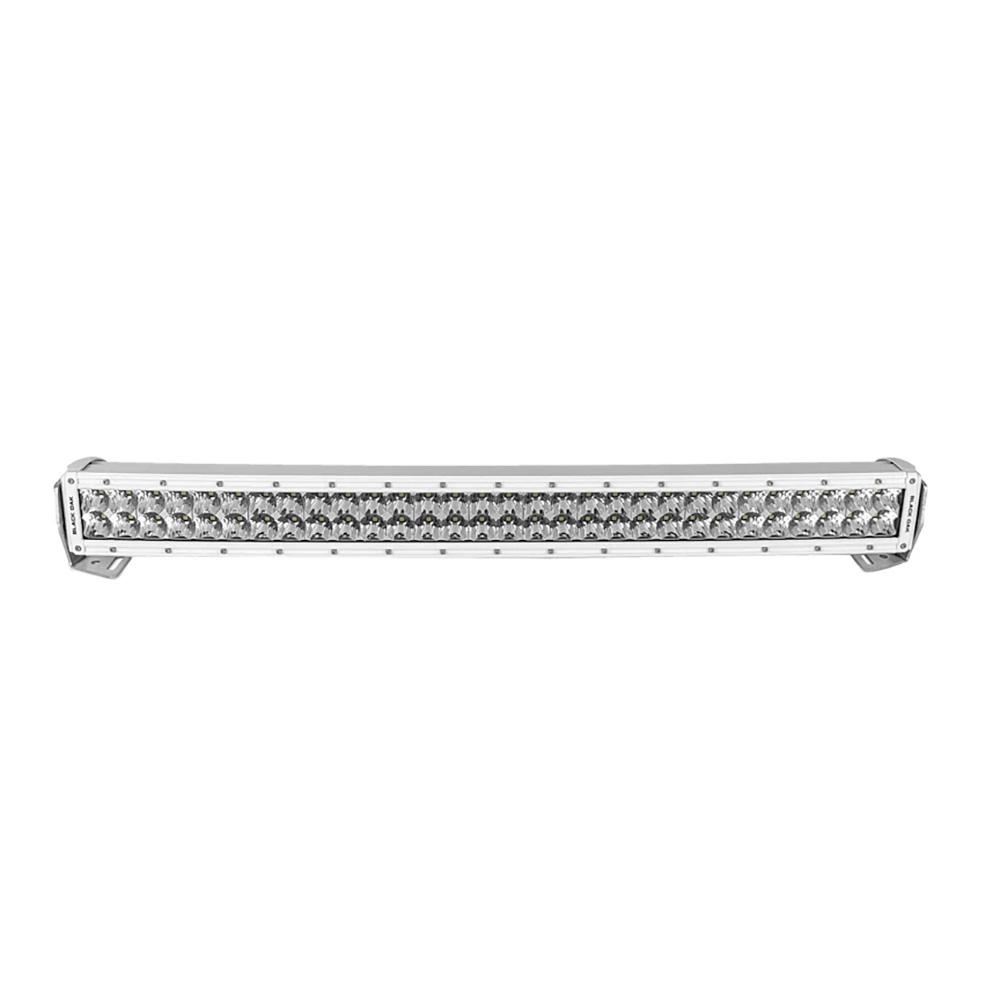

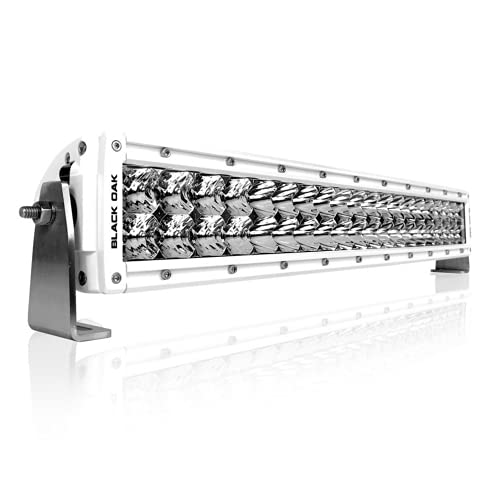

Black Oak LED 30CCM-D5OS 30-Inch Curved Dual Row Marine LED Light Bar Combo Beam

The Black Oak LED Pro Series 3.0 30-inch curved dual row LED light bar delivers exceptional marine-grade illumination for boats, off-road vehicles, and work applications. This waterproof light bar features advanced LED technology with a 20% increase in lumens compared to previous generations, producing an impressive 39,600 raw lumens from 60 high-performance 5W LEDs. The combination flood/spot optics provide both wide area coverage and long-distance penetration for superior visibility in any condition.

Marine-Grade Construction:

• 360° Ceramic Protection: Advanced ceramic coating provides complete protection against UV exposure, salt water, and corrosion
• IP69K Waterproof Rating: Two-stage Hydrex Seal Lock system ensures fully submersible performance
• Heavy-Duty Dynamax Housing: 4x stronger frame construction with premium DuPont powder coating for maximum durability
• Lexan Lens: Impact-resistant polycarbonate lens with UV protectant for long-term clarity

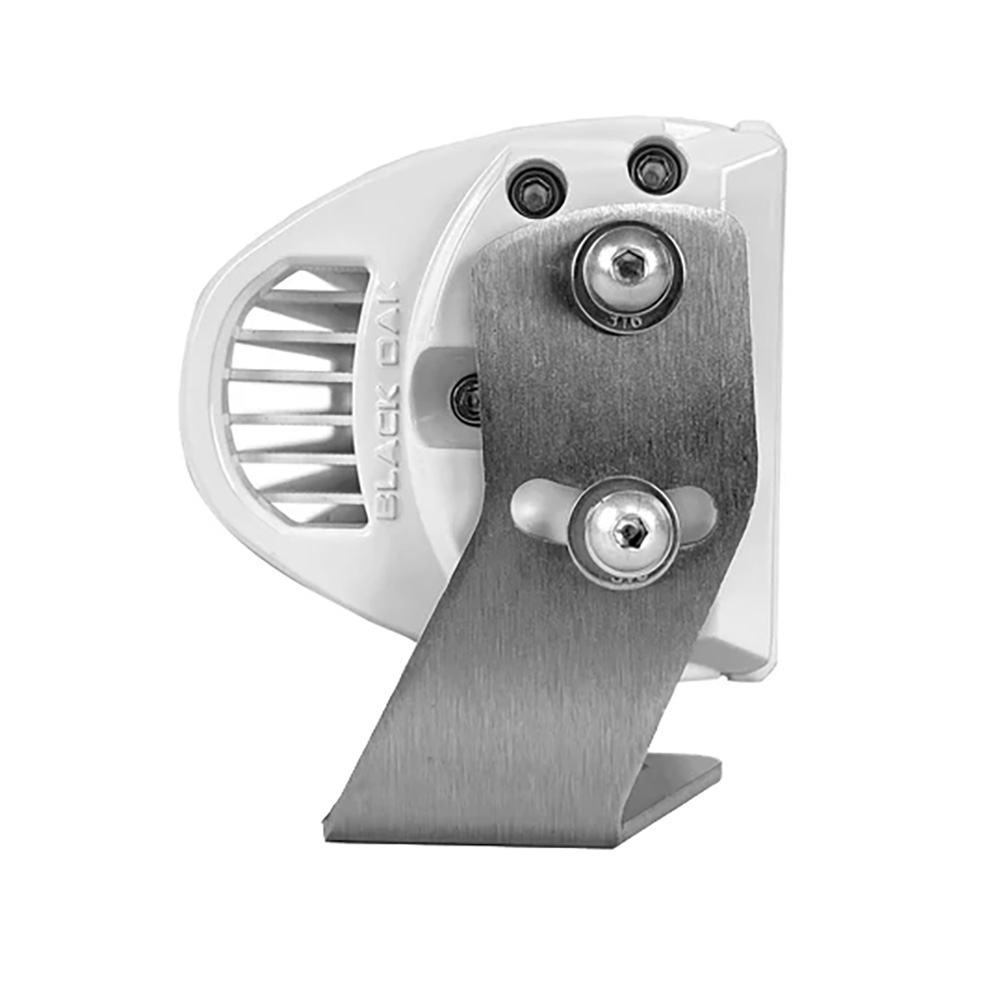

• Marine-Grade Stainless Steel Mounts: Multi-position brackets made from 9-gauge stainless steel resist corrosion in harsh saltwater environments

Technical Specifications:

• Total Power Output: 300 watts
• Current Draw: 12.7 amps at 12V
• Light Output: 39,600 raw lumens
• LED Configuration: 60 x 5W LEDs in dual row curved design
• Beam Pattern: Combo (flood/spot combination)
• Housing Color: White powder-coated finish
• Waterproof Rating: IP69K (submersible)
• Operating Voltage: 9-32V DC
• Connection Type: Deutsch connector
• Dimensions: 31.4 inches wide x 4.125 inches high (with mounting bracket)
• Weight: 10.8 pounds
• Warranty: Lifetime limited warranty

Complete Installation Kit Includes:

• 30-inch curved LED light bar
• Complete wiring harness with integrated fuse, relay, and rocker switch
• 12-gauge automotive wire
• Adjustable stainless steel mounting brackets
• All mounting hardware for installation

Perfect for T-top boat lighting, behind-the-grille truck mounting, UTV roof installations, or bumper mounting on off-road vehicles. The curved design follows vehicle contours for a sleek, integrated appearance while providing optimal light distribution. Deutsch connectors ensure reliable electrical connections even in wet conditions.
