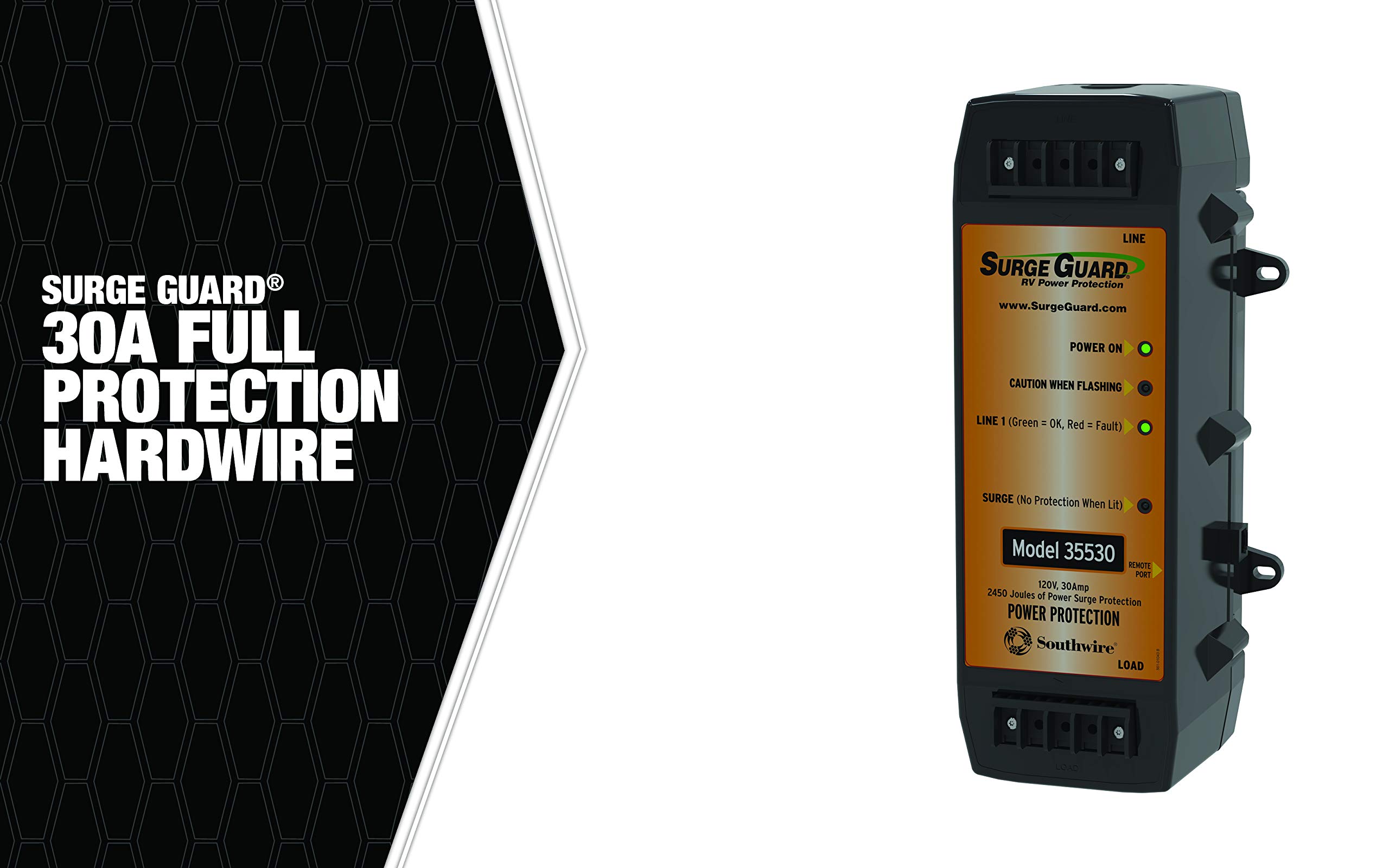

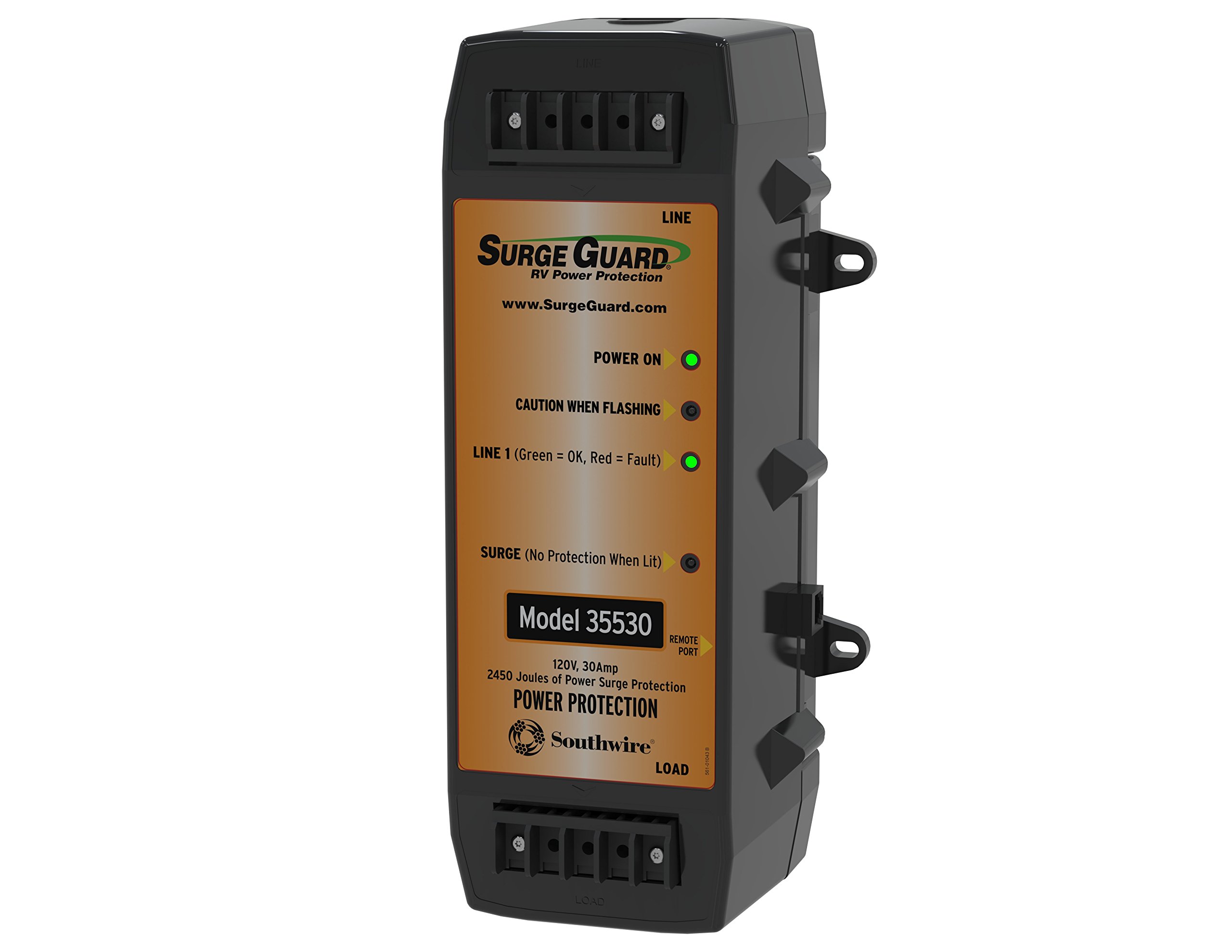

Southwire 35530 Surge Guard Hardwire RV Surge Protector 30 Amp

The Southwire Surge Guard 35530 is a permanently hardwired RV surge protector rated at 120V/30A that continuously monitors shore power and automatically disconnects to protect your coach's electronics from damaging electrical conditions. Designed for permanent installation inside your RV's electrical bay, it safeguards against the full range of campground power hazards — including power surges, open ground, open neutral, low or high voltage, miswired pedestals, and reverse polarity.

With 2,450 Joules of surge protection capacity and a maximum spike current rating of 6,500A, the 35530 provides serious protection for sensitive RV electronics. A built-in 128-second reset delay prevents your air conditioning compressor from short-cycling when power is restored, extending compressor life. Once safe voltage conditions are re-established, the unit automatically reconnects power without any manual intervention.

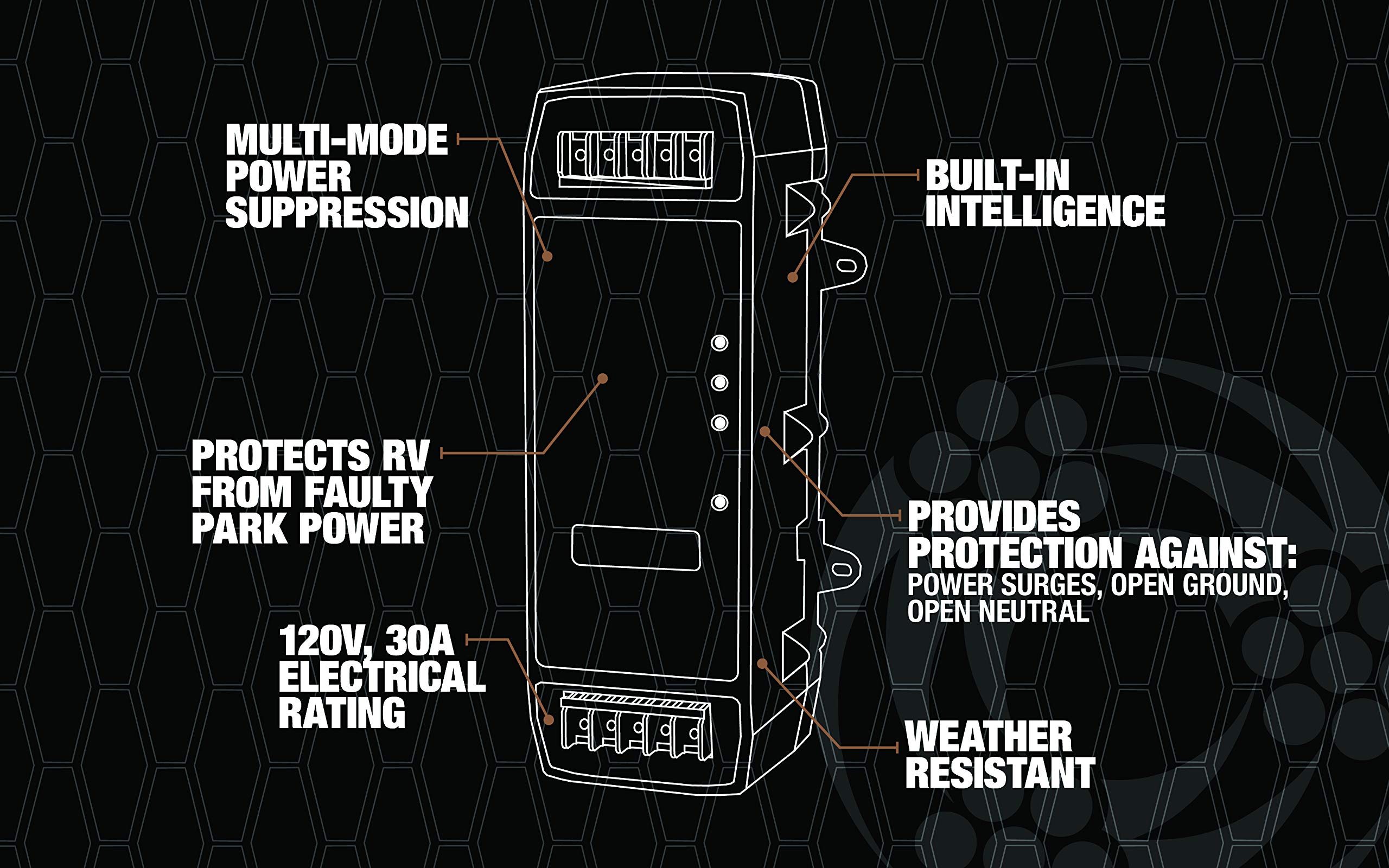

Key Features:

• Continuous Shore Power Monitoring — automatically shuts off when dangerous conditions are detected
• Over/Under Voltage Protection — disconnects when voltage falls below 102V or exceeds 132V
• Open Neutral & Open Ground Protection — guards against wiring faults that can damage electronics
• Multi-Mode Surge Suppression — 2,450 Joules rated, 6,500A max spike current
• Miswired Pedestal & Reverse Polarity Indication — caution indicator light alerts to faulty hookups
• 128-Second A/C Compressor Delay — protects compressor from rapid power cycling
• Automatic Reset on Power Restoration — reconnects automatically once safe voltage is detected
• Permanent Hardwire Installation — mounts inside the RV bay to prevent theft and weather exposure
• Optional Remote LCD Display Compatible — works with Remote Power Monitor p/n 40300 (sold separately) via telecom jack
• UL Listed
• Electrical Rating: 120V, 30A (7,200W maximum)
• Limited warranty

Compatible with the optional Surge Guard Remote Power Monitor (p/n 40300), which features 16 detailed fault screens and plug-and-play installation via the built-in telecom jack. Replaces TRC model 34520-002.
