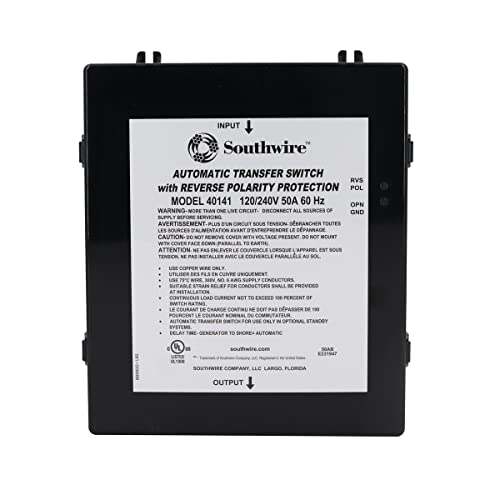

Southwire 40141-001 50 Amp Automatic Reverse Polarity Transfer Switch 120/240V RV

Manufacturer

Picture for manufacturer Southwire

Part Number

40141-001
8 reviews
Sale Price

$215.73

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Southwire 40141-001 is a 50-amp automatic transfer switch designed for RVs equipped with both shore power and an onboard generator. This permanently mounted unit automatically switches your RV's AC power source between shore power and generator power, eliminating the need to manually swap power connections.

This switch is generator dominant: when both shore and generator power are simultaneously available, the unit will transfer to generator power after a 30-second delay. Once the generator shuts down, the switch returns to shore power after a short 3–4 second delay.

Key Features:

  • 50A, 120/240V Automatic Operation — Rated for full 50-amp, 120/240-volt RV electrical systems at 60 Hz
  • Generator Dominant Transfer — Automatically transfers to generator power after a 30-second energized delay; returns to shore power within 3–4 seconds after generator shutdown
  • Reverse Polarity & Open Ground Protection — Built-in protection guards against reverse polarity and open ground conditions when connected to shore power
  • Dual Chint Contactors — Equipped with dual 50A FLA-rated Chint mechanical interlocking contactors to prevent both contactors from engaging simultaneously
  • LED Fault Indicator — LED indicator provides visual alert for reverse polarity and open ground fault conditions
  • UL-Listed — UL1008 full transfer switch rated for safe, code-compliant installation
  • Durable Plastic Enclosure — Rugged plastic housing resists corrosion and eliminates the risk of an energized metal enclosure
  • Surface/Wall Mount — Designed for permanent surface or wall mounting inside the RV power bay

Specifications:

  • Ampere Rating: 50A (FLA Contactor Rating)
  • Voltage: 120/240V
  • Frequency: 60 Hz
  • Dimensions: 8.48" W x 10.75" H x 5.19" D
  • Color: Black
  • Mounting: Wall/Surface Mount
  • Part Number: 40141-001 (also referenced as 40141001)
  • UPC: 029892464370
  • Warranty: Limited 1-Year

Note: This transfer switch provides reverse polarity and open ground protection but does not include surge protection. For full surge and power protection, see Southwire's Surge Guard RVC Full Protection series.
