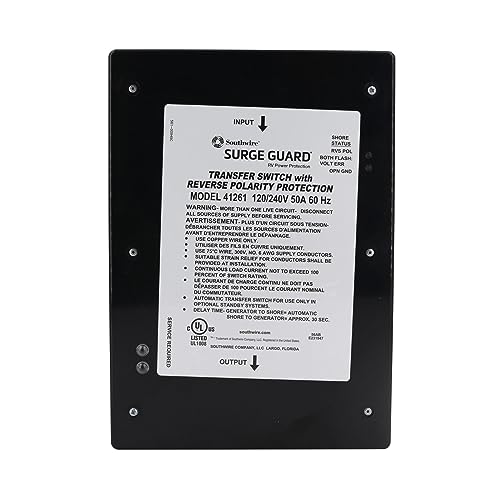

Southwire 41261-011 Surge Guard 50A Automatic Transfer Switch with Reverse Polarity Protection

The Southwire Surge Guard 41261-011 is a hardwired, generator-dominant automatic transfer switch (ATS) rated at 50 amps / 120-240V, designed to seamlessly manage power between shore power and an RV or mobile generator. Built with dual 80A Chint contactors and a mechanical interlock, it prevents both power sources from engaging simultaneously, ensuring safe and reliable operation at all times.

When generator power becomes available, the unit automatically transfers the load after a 30-second delay. Once the generator is shut down and shore power is present, it reverts back to shore power after approximately 3 seconds. The generator-dominant design always prioritizes generator power when both sources are active.

Protection Features:

• Multi-mode surge suppression — 2,600 joules of surge protection
• Reverse polarity protection with LED and remote indicator
• Open ground protection with LED and remote indicator
• High and low voltage protection with flashing LED indicator
• Open neutral protection
• Mis-wired pedestal protection

Construction & Installation:

• Rugged plastic enclosure resists corrosion and eliminates sharp-edge hazards
• Hardwired installation — screw terminal connections
• Wall/surface mount design
• Color: Black

Specifications:

• Voltage: 120/240V single-phase
• Amperage: 50A
• Frequency: 60 Hz
• Dimensions: 8.84" W x 13.5" H x 5.21" D
• Weight: 9.67 lbs
• Certification: UL/CUL Listed — UL 1008 Full Transfer Switch Rating
• Warranty: Limited 1-Year
• Replaces: Southwire 41260-001

The Southwire Surge Guard 41261-011 is UL 1008 certified and delivers comprehensive electrical protection for RV and marine installations requiring robust, automatic shore-to-generator power transfer.
