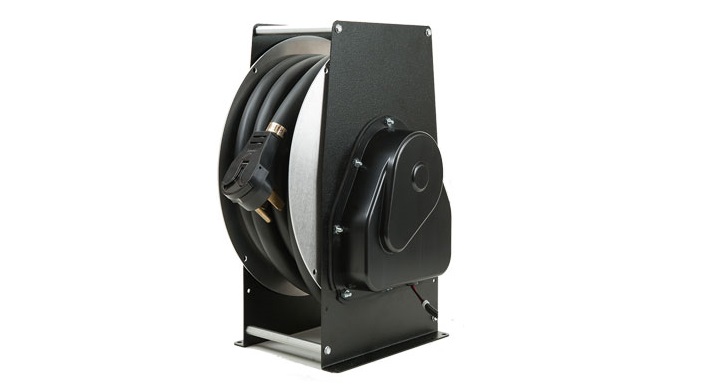

Southwire RH54331RMK 50 Amp Motorized RV Shoreline Power Cord Reel 33 ft High Profile

The Southwire RH54331RMK is a motorized 50-amp RV shoreline power cord reel purpose-built for Class A and Super C motorhomes. Its tall and narrow profile fits neatly within large RV storage compartments, while the 12V DC chain-drive gear motor handles the hard work of reeling in that heavy 50-amp cord at the push of a button.

The reel includes 33 feet of 6/3 8/1 flexible shore power cord plus a 4-foot pigtail for hardwiring directly to a transfer switch or junction box. The cord free-spools off the reel for easy manual pull-out, and the high-torque motor — delivering 3x the pulling power of previous designs — powers the cord back in smoothly and quietly without a remote control.

Key Features:

• Motorized retrieval with high-torque 12V DC chain-drive gear motor — no remote required
• Free-spool cord removal: pull only what you need
• 33 feet of non-stiffening, super-flexible 6/3 8/1 power cord included
• 4-foot pigtail for hardwired connection to transfer switch or junction box
• Tall and narrow design — optimized for Class A and Super C motorhomes
• Bolt-on base mount installation using common hand tools
• Spool sides and core: anodized aluminum; side frames: powder-coated galvanized steel
• Reels hard-wire into the coach — no loose connections
• Eliminates tangled, kinked, and dragging cords
• Motor amp draw: 4–6 amps in normal operation; overload protection trips at 10–12 amps
• ETL listed (File # 3082696)
• Replaces former part number CC50D01R-SR

Optional floor portal and roller kits are recommended when the cord exits through a storage compartment floor. The Southwire RH54331RMK Shoreline Reels cord reel delivers reliable, compact shore power management for full-time RVers and frequent campers alike.
