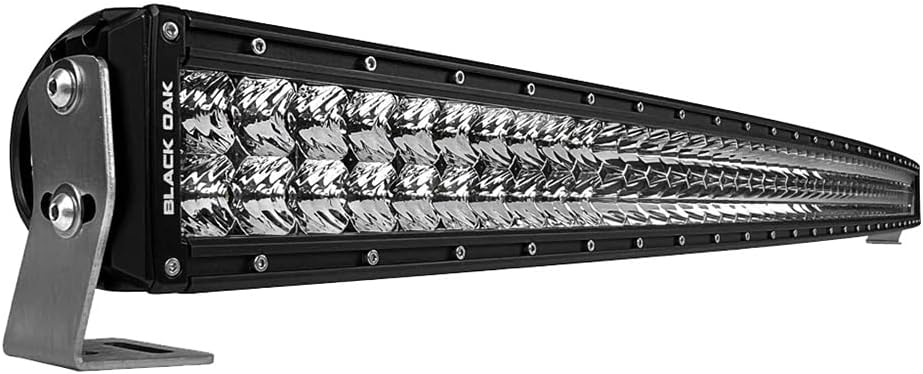

Black Oak LED 40CC-D5OS 40" Curved Double Row LED Light Bar Combo

The Black Oak LED Pro Series 3.0 Curved Double Row 40" LED Light Bar delivers professional-grade illumination for serious off-road enthusiasts. This powerhouse features 80 ultra-bright Osram 5W LED bulbs arranged in a dual-row configuration, producing over 44,000 lumens of intense white light. The curved design and combination flood/spot optics provide exceptional beam pattern coverage, lighting up trails and terrain like daylight.

Built to withstand the harshest conditions, this light bar features Black Oak's advanced Pro Series 3.0 technology with a 20% increase in lumen output compared to previous generations. The heavy-duty Dynamax housing is 4 times stronger than standard frames, while the 360° ceramic protection shields against UV exposure, salt water, and corrosion. A 2-stage Hydrex Seal Lock system provides IP69K rating, making this light bar fully submersible and waterproof.

Key Features:

• 80 Osram 5W LED bulbs producing 52,800 raw lumens
• 400W total power with 17.9 amp draw
• IP69K waterproof rating with 2-stage Hydrex Seal Lock
• 360° ceramic protection against UV, salt water, and corrosion
• Heavy-duty Dynamax housing with 4x strength improvement
• Premium Dupont powder-coated black finish
• Lexan lens cover with UV protectant
• Multi-mount brackets made from 9-gauge marine-grade stainless steel
• Combination flood/spot beam pattern for versatile lighting
• Deutsch connector for reliable electrical connection
• Lifetime warranty coverage

Technical Specifications:

• Length: 40 inches (41.4" with mounting brackets)
• Height: 4.125 inches
• Weight: 13.8 lbs
• Power Consumption: 400W / 17.9A
• Light Output: 52,800 raw lumens / 44,000+ effective lumens
• LED Type: Osram 5W white LEDs (80 total)
• IP Rating: IP69K (fully submersible)
• Beam Pattern: Combination flood and spot
• Housing Color: Black

Complete Installation Kit Included:

• 40" curved LED light bar
• Complete wiring harness with integrated fuse, relay, and switch
• 12-gauge wire for reliable power delivery
• Stainless steel mounting brackets
• All necessary installation hardware

Ideal for off-road vehicles, UTV roof mounts, desert racing, roof rack installations, and bumper lighting applications. The curved profile provides improved aerodynamics and a sleek appearance while maximizing light distribution across a wide field of view.
