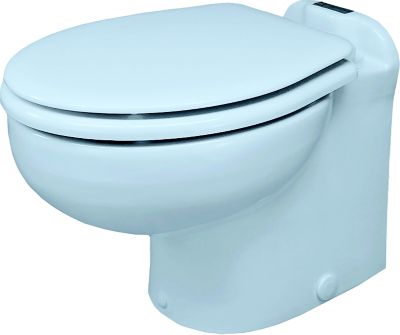

The Raritan Engineering 220HS01201 Marine Elegance is a premium 12-volt electric marine toilet featuring an angled back design for a contoured fit against the hull. This model includes the innovative SeaFresh system, which allows you to switch between onboard pressurized fresh water or raw water from a remote pump with the flip of a switch, providing maximum flexibility for water source selection based on availability and conservation needs.
Vortex-Vac Technology:
Raritan's proprietary Vortex-Vac technology creates vacuum directly in the bowl, eliminating the need for external vacuum pumps, tanks, and foot pedals. This revolutionary design simplifies installation, reduces maintenance requirements, and significantly lowers system costs. The high-performance discharge pump can macerate and pump waste up to 10 feet vertically and 100 feet horizontally, making it ideal for virtually any marine installation.
Key Features:
- Compact 13.5 inches high with an 8.5" x 9.75" footprint for space-limited installations
- One-piece vitreous china bowl for durability and easy cleaning
- Slow-close toilet seat with integrated stops to prevent shifting during heavy seas
- Built-in shredder with stainless steel blades transforms waste into small particles to reduce clogs
- Whisper-quiet operation at less than 63 decibels
- Low water consumption extends holding tank capacity
- Angled back design conforms to hull contours
- Standard 14-inch height with comfortable seating position
SeaFresh Dual Water System:
The operator can select either onboard pressurized fresh water or raw water from a remote pump for flushing. Fresh water flushing reduces odors, lessens scale buildup, and results in lower maintenance and longer product life. The system includes both a fresh water solenoid valve and a remote raw water pump for complete versatility.
Installation Specifications:
- Overall Dimensions: 14"H x 14"W x 18.375"D
- Inlet Hose: 1/2" inside diameter
- Discharge: 1" or 1-1/2"
- Voltage: 12VDC
- Built-in vacuum breaker for fresh water supply protection
- Built-in discharge loop design eliminates odors
The Raritan 220HS01201 combines household-style comfort with marine-grade reliability, making it an excellent choice for cruisers, liveaboards, and recreational boaters who demand the best in marine sanitation technology.
