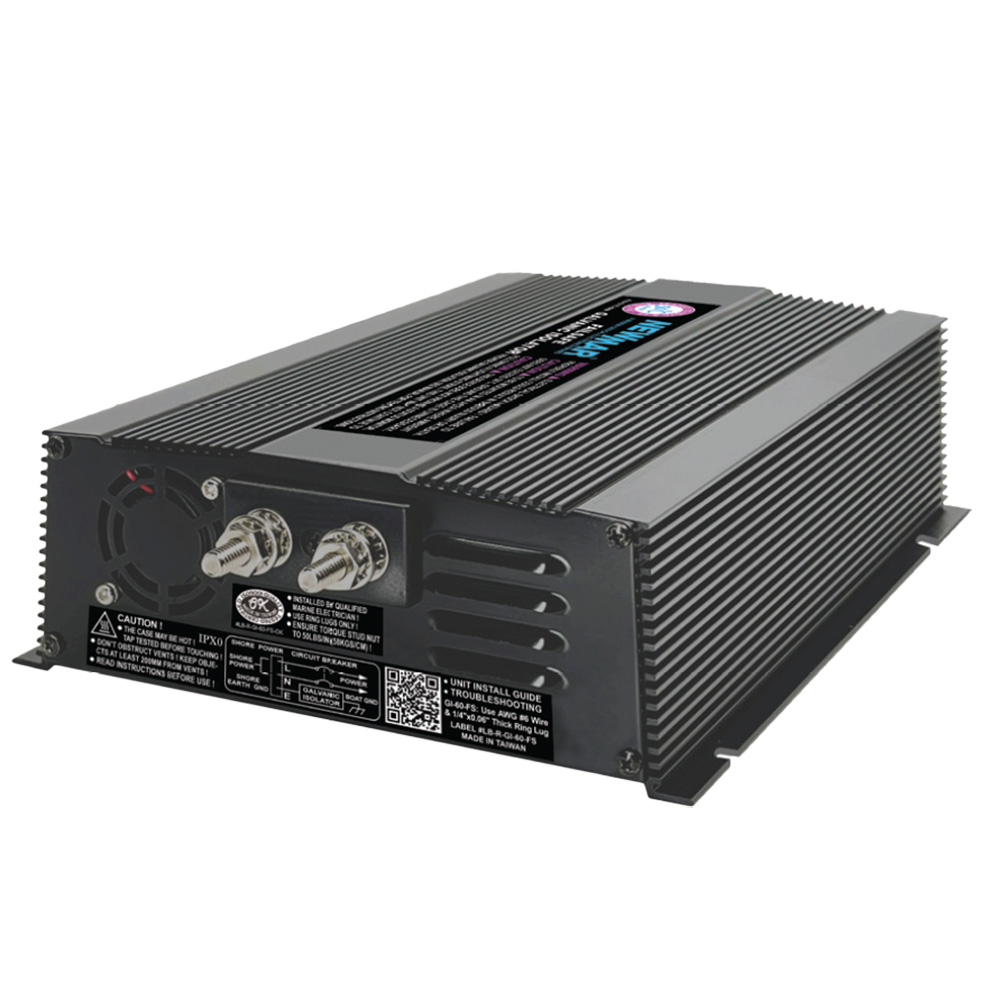

NewMar GI-60-FS Galvanic Isolator 60A Fail Safe Marine AC Ground Protection

The NewMar GI-60-FS Galvanic Isolator provides essential corrosion protection for marine electrical systems by blocking low-voltage DC currents while maintaining the critical AC safety ground connection. Designed to meet the latest ABYC A-28 2019 requirements, this 60-amp fail-safe unit installs between the AC safety ground and DC bonding system to prevent galvanic corrosion on underwater metallic components in saltwater environments.

How It Works:

By blocking low-voltage stray currents that cause galvanic corrosion, the GI-60-FS significantly extends the life of sacrificial zinc anodes and reduces corrosion on through-hulls, propellers, shafts, and other submerged metals. This translates to substantial savings in haul-out costs and anode replacement expenses. The unit features a large capacitor that provides a secondary low-impedance path for AC fault current to reach ground, ensuring electrical safety is never compromised.

Key Features:

• 60-amp fail-safe design ensures continuous ground connection even if isolator fails
• Meets ABYC A-28 2019 standards for marine galvanic isolators
• UL1500 certified for ignition protection in marine environments
• Rated for 50°C ambient temperature operation
• Protects against stray currents up to 1.4 VDC
• Compatible with 115-230V shore power systems
• Maximum short circuit rating of 5000 amps
• Compact design: 10.2" x 7.5" x 2.6" (260 x 190 x 65 mm)

Specifications:

• Current Rating: 60 Amps
• Shore Power Voltage: 115-230V AC
• Stray Current Protection: Up to 1.4 VDC
• Maximum Short Circuit: 5000 Amps
• Operating Temperature: Up to 50°C ambient
• Certifications: UL1500, ABYC A-28 2019
• Dimensions: 10.2" L x 7.5" W x 2.6" H (260 x 190 x 65 mm)

This galvanic isolator is an essential safety and maintenance component for any vessel connected to shore power, providing robust protection against the costly effects of galvanic corrosion while maintaining full electrical safety compliance.
