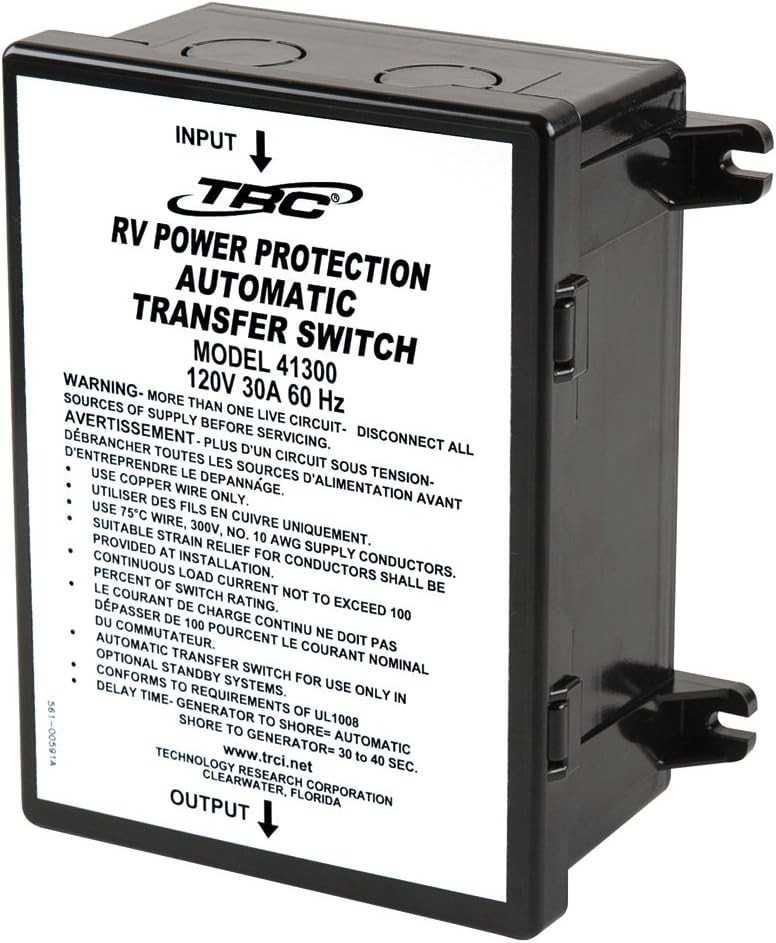

Coleman 41300-001 Surge Guard 30 Amp Automatic Transfer Switch Hardwire RV

The Surge Guard 41300-001 is a basic 30 amp automatic transfer switch designed to seamlessly transfer power between shore power and generator power in RV applications. This UL-approved hardwired transfer switch is rated to UL1008 standards and features a dual contactor arrangement with proprietary electrical interlock for safe operation.

Key Features:

• Generator dominant operation - automatically transfers to generator power when energized after 30 second delay, then returns to shore power 3-4 seconds after generator shuts down
• 120 volt, 30 amp, 60 Hz rating with screw terminal connections
• Dual contactor arrangement with proprietary electrical interlock
• Compact dimensions: 5.58 inches wide x 7.62 inches high x 3.31 inches deep
• Time delay at power up prevents nuisance switching
• Hardwired installation for permanent mounting

This transfer switch monitors your RV electrical system, preventing two power sources from entering simultaneously and ensuring safe, automatic power management. Note: This model does not provide surge protection - it is a basic transfer switch only. Ideal for RV owners who need reliable automatic switching between shore and generator power without manual intervention.
