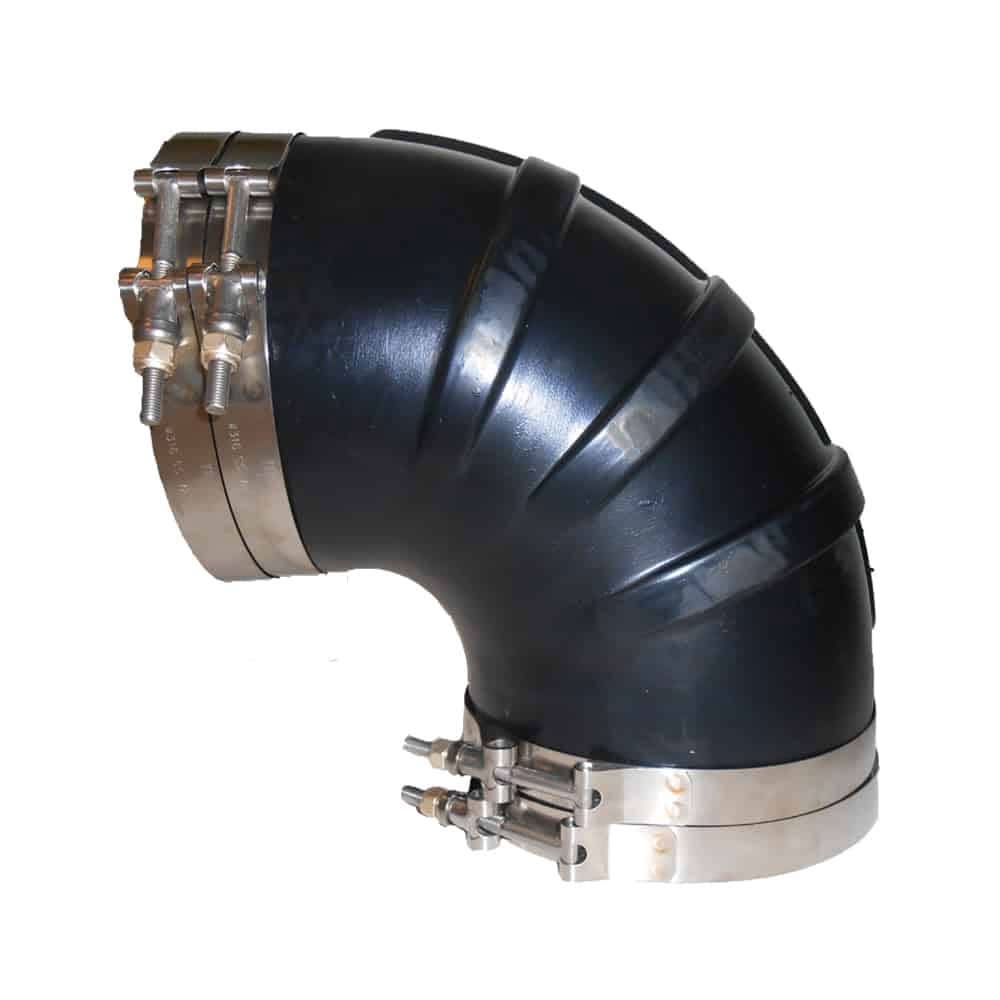

Trident Marine TRL-390-S/S 3" 90-Degree EPDM Wet Exhaust Elbow with Clamps

The Trident Marine TRL-390-S/S is a professional-grade 90-degree wet exhaust elbow designed specifically for marine wet exhaust systems. Constructed from high-temperature black EPDM rubber, this molded elbow provides flexible, reliable connections that accommodate engine movement, vibration, and misalignment while offering significant savings in installation cost, parts, labor, and space compared to rigid connections.

Key Features:

• 3-inch inner diameter molded EPDM rubber construction with smooth bore and cover
• Rated for continuous use up to 250°F (121°C) for reliable performance in demanding marine environments
• Includes four stainless steel T-bolt clamps for secure, corrosion-resistant installation
• Exceeds SAE J2006-R1, ABYC, and NMMA P-1 marine exhaust standards
• Excellent resistance to ozone, salt water, diesel fumes, heat, cold, and aging
• 100% EPDM rubber with no textile reinforcement for maximum flexibility
• 5-year manufacturer warranty for long-lasting durability

Specifications:

• Inner Diameter: 3" (76.2mm)
• Elbow Angle: 90 degrees

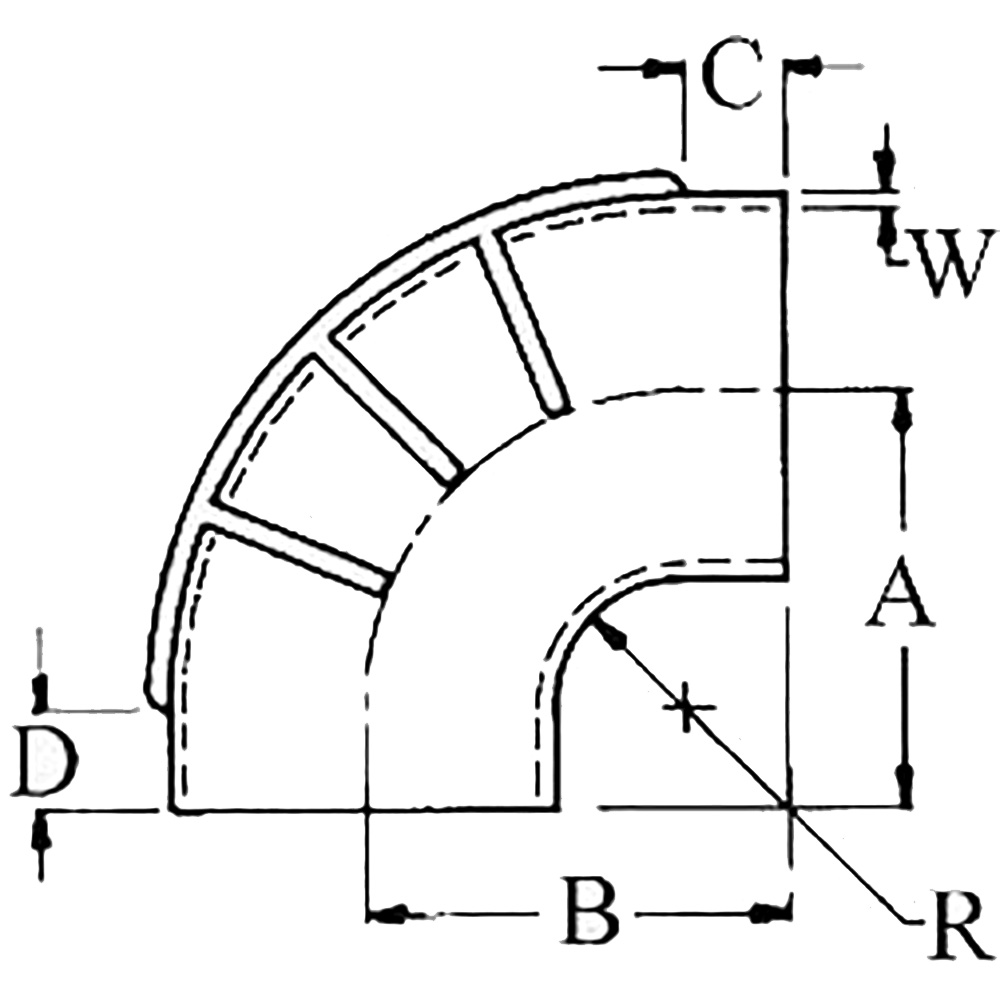

• Leg Length (A & B): 5.25" (133mm)
• Inside Radius (R): 2" (50.8mm)
• Wall Thickness (W): 0.25" (6.4mm)
• Temperature Range: -40°F to +250°F continuous
• Color: Black

This flexible exhaust elbow is ideal for creating custom wet exhaust routing in boats with inboard or stern drive engines. The molded construction eliminates internal restrictions for smooth exhaust flow, while the EPDM material provides superior tolerance to the harsh marine environment. Complete with installation hardware for immediate use.
