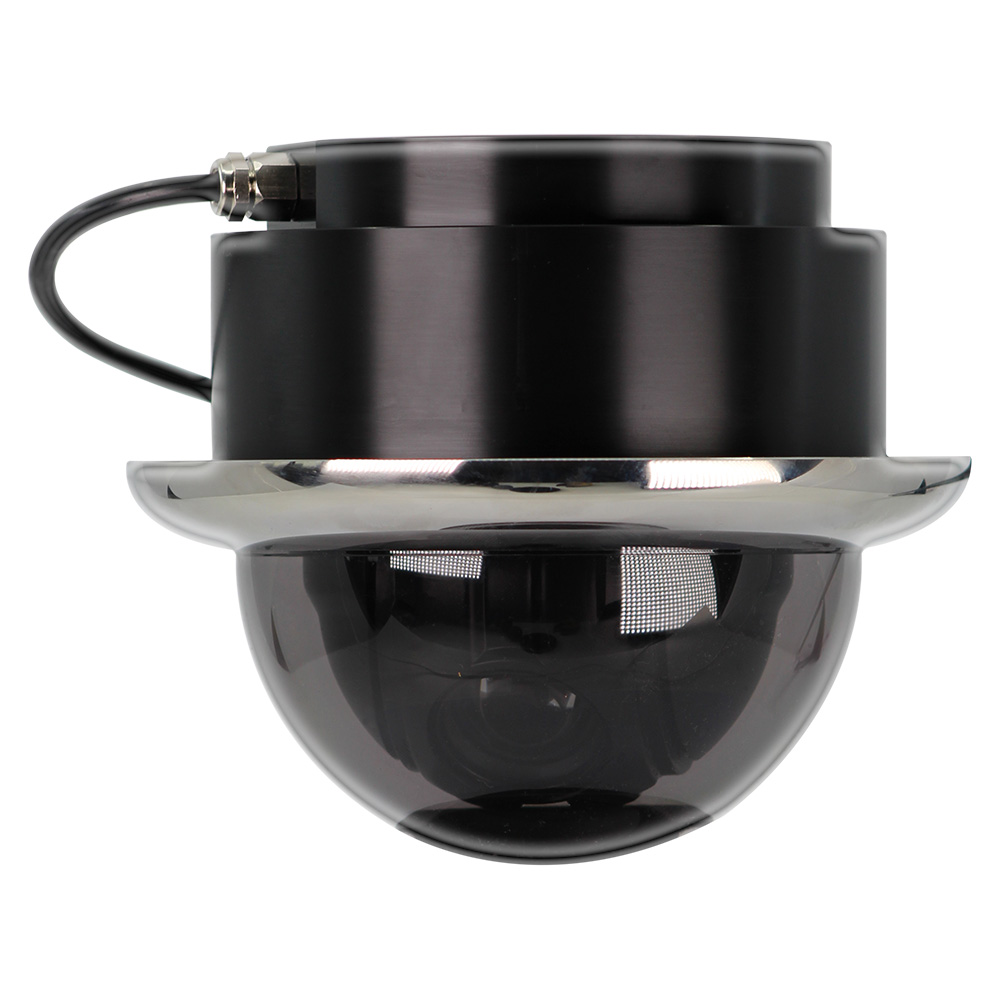

Iris Innovations IRIS4106 Miniature Marine IP PTZ Dome Camera with Stainless Steel Bezel

The Iris Innovations IRIS4106 is a compact 2MP ONVIF-compliant IP PTZ dome camera engineered specifically for marine environments. Part of the IRISx106 series, this camera delivers high-definition video surveillance in the smallest PTZ dome package available on the market, making it ideal for discreet installation on boats and yachts.

Key Features:

• 2-megapixel high-resolution IP camera with 10x digital zoom capability
• ONVIF compliant for broad compatibility with marine electronics
• Compatible with Raymarine Axiom MFDs running LightHouse 2 and above (video only)
• Works with Garmin 8xxx series MFDs when used with Iris HVRs and IP boxes
• Dual power options: 12VDC socket or IEEE 802.3af Power over Ethernet (PoE)
• Multiple control options: IRIS595 joystick, TE01 rotary controller, web browser interface, or Iris HVR
• Communication via RS485 serial data or Ethernet connection
• Supports up to 32 simultaneous users viewing across onboard network
• Fast, smooth variable speed pan, tilt, and zoom operation

Rugged Marine Construction:

• Marine-grade 316L stainless steel bezel with high polish finish
• Lightweight yet durable ABS plastic housing
• Smoke acrylic dome for clear viewing and UV resistance

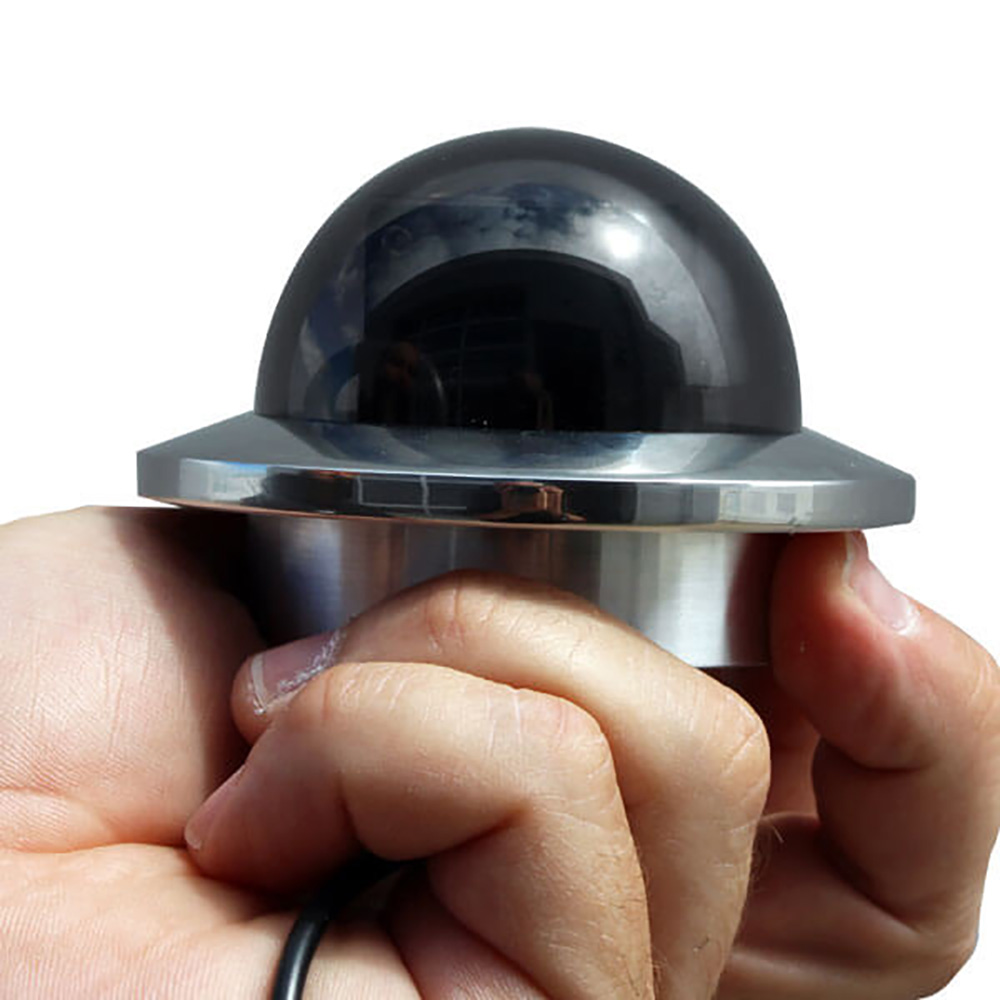

• Compact design: 154mm outer diameter bezel, 122mm panel cutout required
• Depth behind panel: 58mm (additional space needed for RJ45 connector)

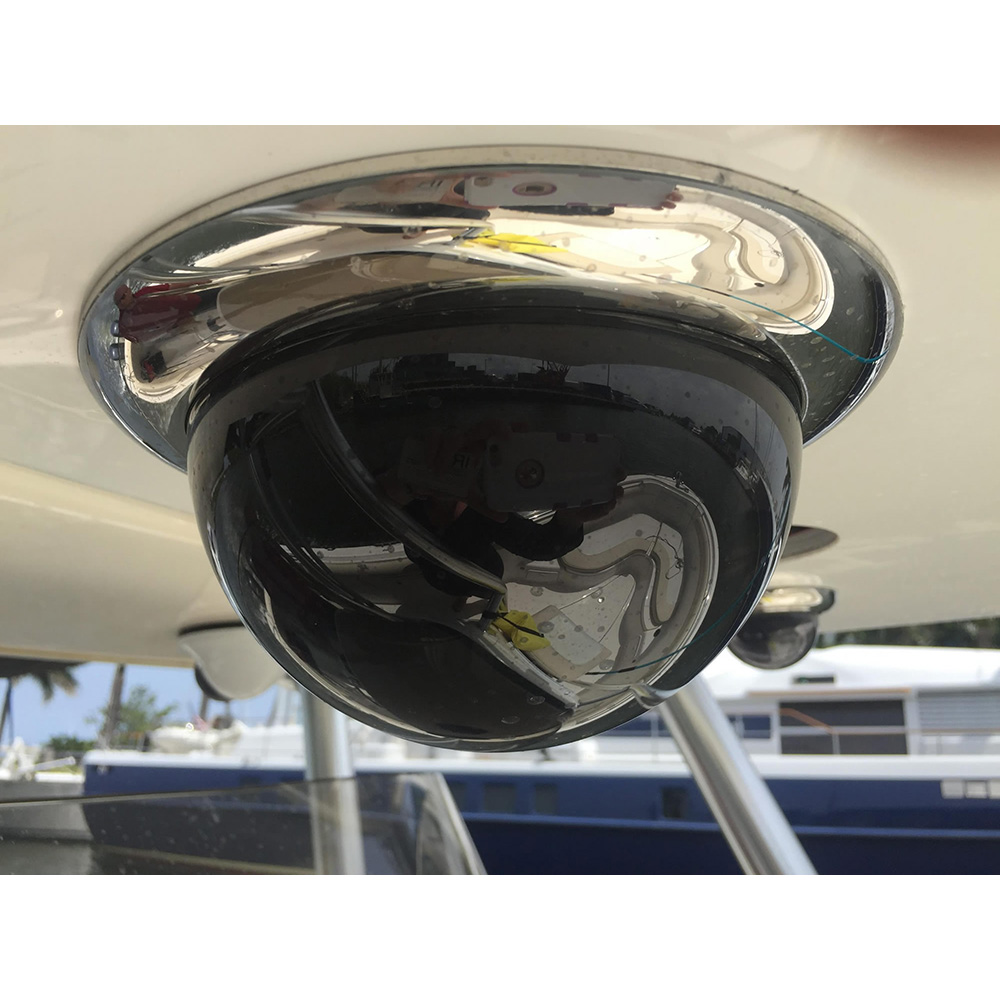

Applications: Perfect for deck monitoring, companionway surveillance, tender observation, engine room monitoring, and comprehensive onboard security systems. The miniature profile allows for discreet installation that integrates seamlessly with your vessel's aesthetic, unlike bulky traditional marine PTZ cameras.

Optional surface mount bracket (BRK106) available separately for bulkhead installation in engine rooms or areas where recessed mounting isn't feasible.
