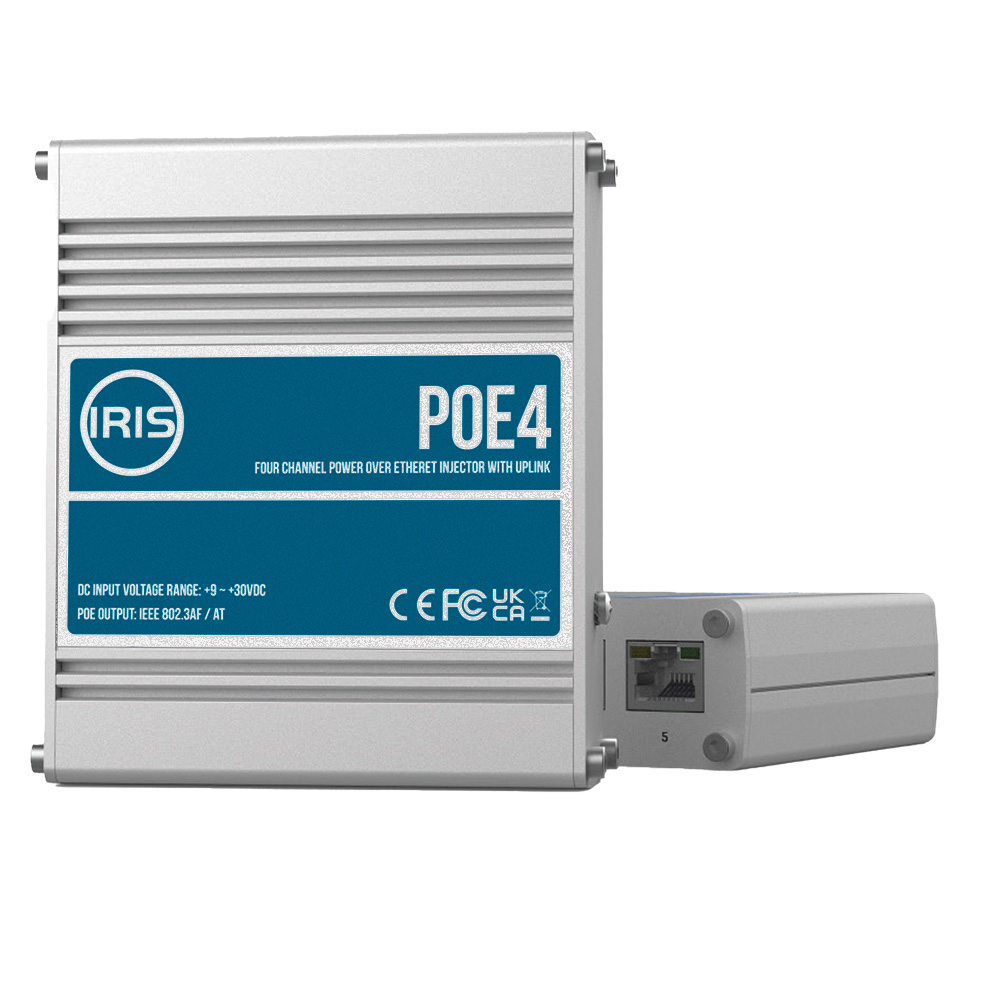

Iris Innovations POE4V2 Four Channel PoE Switch IEEE802.3af/3at Compliant

The Iris Innovations POE4V2 is a compact and robust switch that provides power over Ethernet to your devices. It is IEEE802.3af and 3at compliant, making it suitable for a wide range of applications. Designed specifically for marine and vehicle installations, this switch operates from battery sources with exceptional reliability.

Key Features:

• Wide input voltage range of 9-30VDC, perfect for boats and vehicles

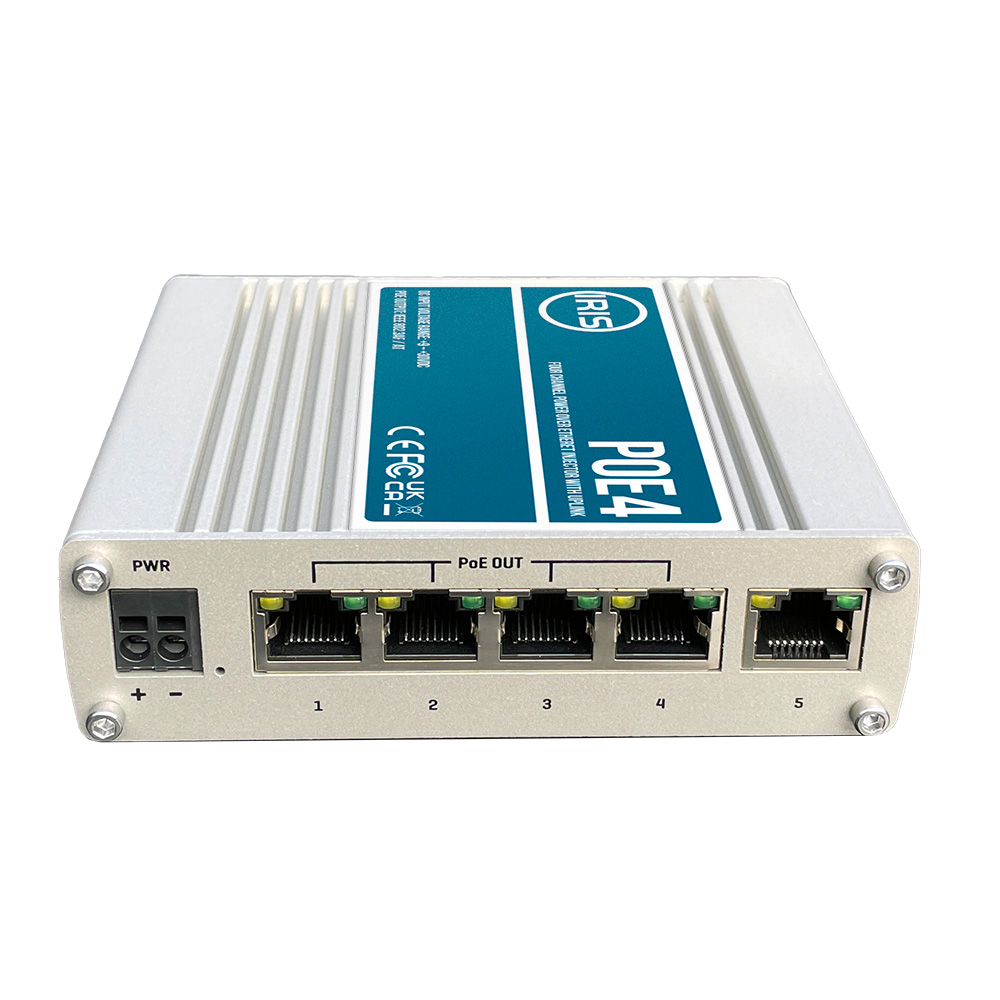

• Four PoE ports and one passive uplink port for network connectivity
• Power budget of 60W in total and up to 30W per port
• Provides power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W and 2 devices at 15W
• 48VDC regulated output voltage
• Connect devices up to a 100-meter cable length
• Aluminium, soft anodized construction
• IP30 environmental rating for dry installations

Technical Specifications:

• Standards Compliance: CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002
• Power Consumption: Idle: 0.8W / Max: 2.2W / PoE Max: 106W
• Output Voltage: 48 VDC
• Input Voltage Range: 9-30 VDC

Installation is simplified with the POE4V2 as only a single network cable is required to connect and power your devices, reducing cost and adding convenience. The passive uplink port enables seamless connections to routers, modems, or other network switches.
