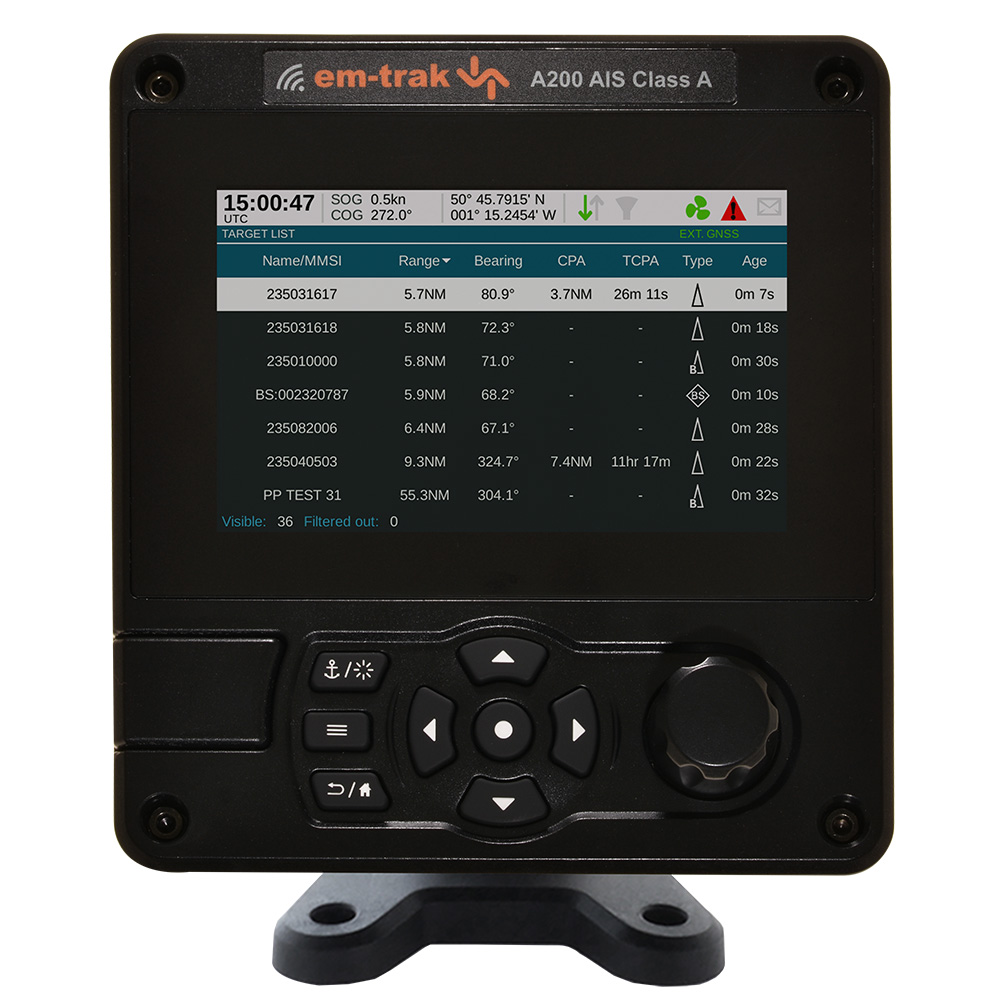

Em-Trak Marine Electronics 425-0012 A200 Class A AIS Transceiver with 5-Inch Color Display

The Em-Trak A200 is a professional-grade Class A AIS transceiver designed for commercial vessels requiring SOLAS and EU Inland Waterway certification. This advanced marine electronics system delivers reliable vessel tracking, collision avoidance, and comprehensive AIS functionality for demanding maritime environments.

Key Features:

• SOLAS and Inland Waterway certified for global regulatory compliance
• Integrated 5-inch high-definition color LCD display (800 x 480 resolution) with night mode
• 12W SOTDMA VHF transceiver with three receivers and one transmitter
• Multi-GNSS support: GPS, GLONASS, BeiDou, and Galileo satellite systems
• ENC chart capability (C-Map compatible) with configurable AIS target overlay
• Built-in WiFi (IEEE 802.11 a/b/g) with client and access point modes
• NMEA 0183 and NMEA 2000 connectivity for seamless integration with ECDIS and bridge systems
• Ruggedized construction rated IPx6 and IPx7 waterproof
• Operating temperature range: -25°C to +55°C (-13°F to +131°F)
• Dual voltage operation: 12V or 24V DC (9.6V to 31.2V range)

Advanced Functionality:

• Real-time alerts and target filters for enhanced situational awareness
• Comprehensive vessel information lists and live weather updates
• Silent mode option (receive-only operation while transmission is stopped)
• Closest Point of Approach (CPA) calculations for collision avoidance
• Ergonomic rotary encoder and multi-button interface with multi-lingual menu options
• Micro SD card slot for data logging and chart storage

Technical Specifications:

• Dimensions: 152mm W x 165mm H x 95mm D (6.0" x 6.5" x 3.7")
• Weight: 1.1 kg (2.4 lbs) for main unit
• VHF frequency range: 156.025 MHz to 162.025 MHz
• AIS transmitter power: 12W (+41 dBm)
• AIS receiver sensitivity: -111 dBm (20% PER)
• Average power consumption: 6.2W at 12V (520mA average, 6A peak)
• External GNSS antenna required (not included)

Engineered for the harshest marine conditions, the A200 has undergone extensive independent testing to ensure reliable performance in extreme temperatures, shock, vibration, and wet environments. The system seamlessly connects to existing navigation equipment and provides mission-critical AIS functionality for commercial vessels, workboats, and vessels requiring Class A compliance.
