Truck System Technologies TST-507-D-C Color Display Monitor for TST 507 Series TPMS

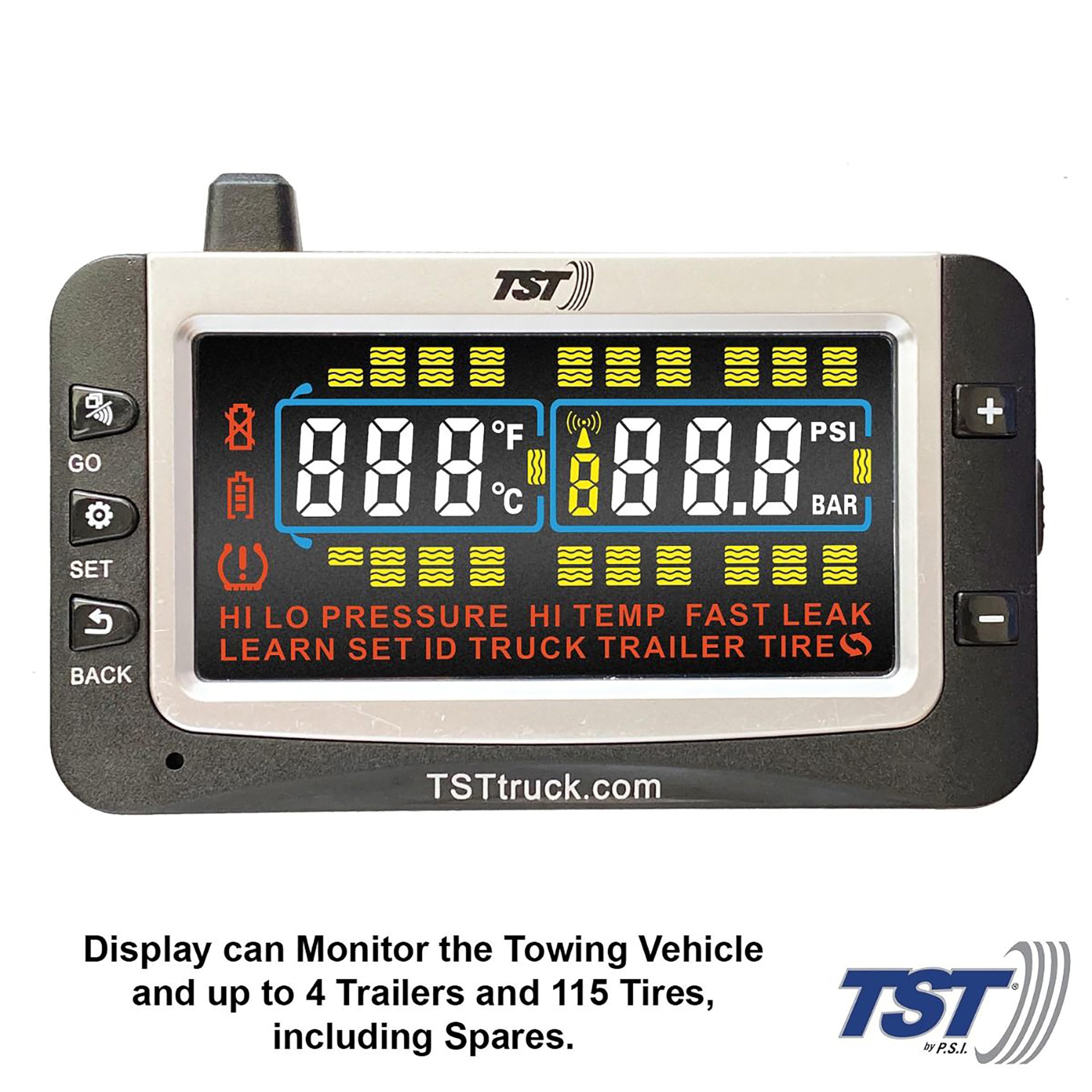

The Truck System Technologies TST-507-D-C is a replacement color display monitor designed for use with TST 507 Series Tire Pressure Monitoring Systems. This compact 3.5-inch diagonal wide-screen color display provides real-time tire pressure and temperature monitoring for RVs, trailers, commercial vehicles, and towable equipment.

Key Features:

• Large 3.5-inch diagonal color LCD display shows live pressure and temperature data at a glance

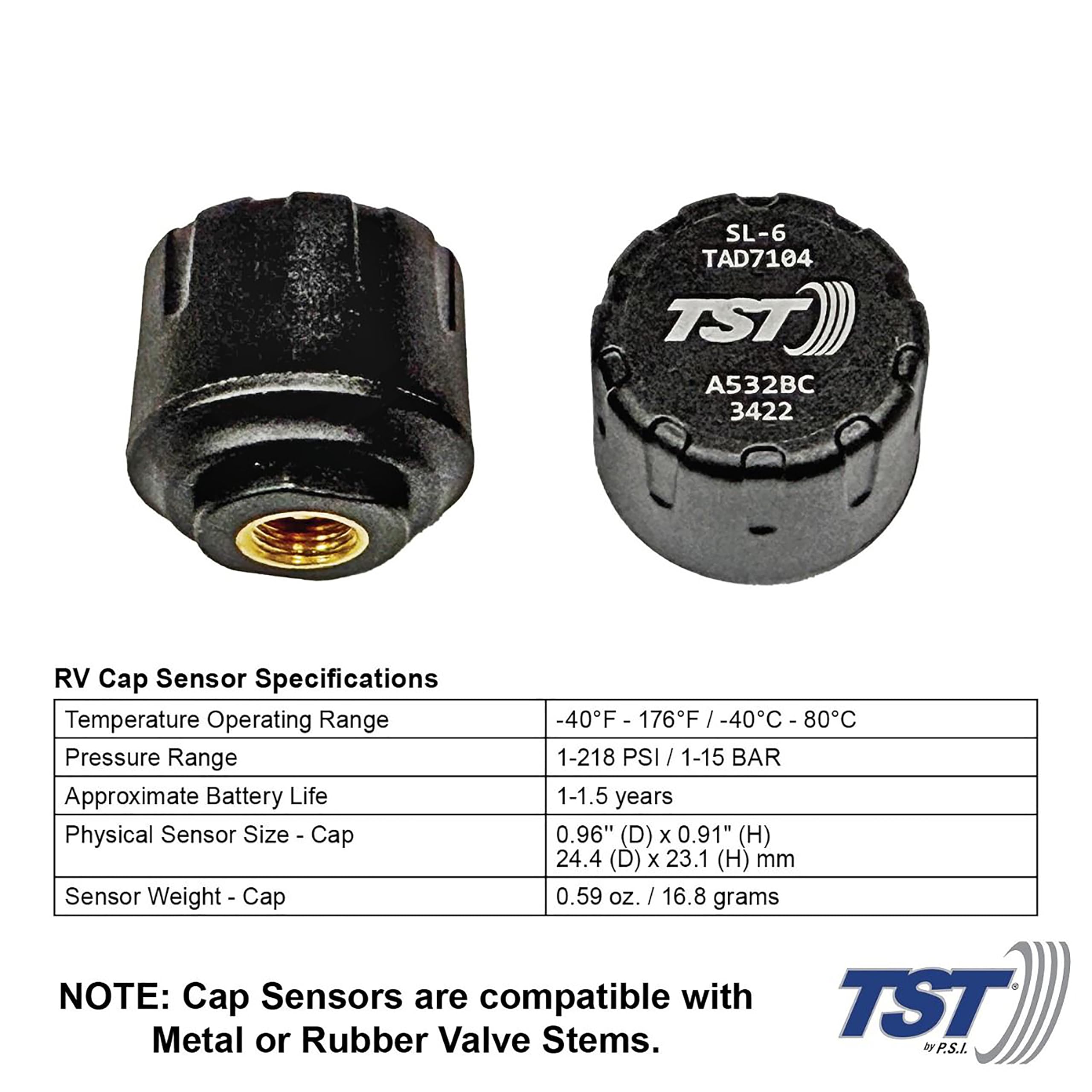

• Compatible with all TST 507 Series sensors including cap, flow-through, and internal sensor types
• Rechargeable integrated lithium battery with micro-USB charging capability
• Operating voltage range: 5V to 30V DC for flexible power options
• Wireless frequency: 433.92 MHz for reliable sensor communication
• Can monitor up to 115 tires across 4 separate vehicles or orientation presets
• Accurate pressure reading range: 1 to 218 PSI with user-programmable high and low pressure alarms
• Temperature monitoring with customizable alert settings
• Visual and audible alerts for low pressure, high pressure, fast leaks, and high temperature conditions
• Low battery alert for sensors with user-replaceable batteries
• Factory parameter restore function for easy reset

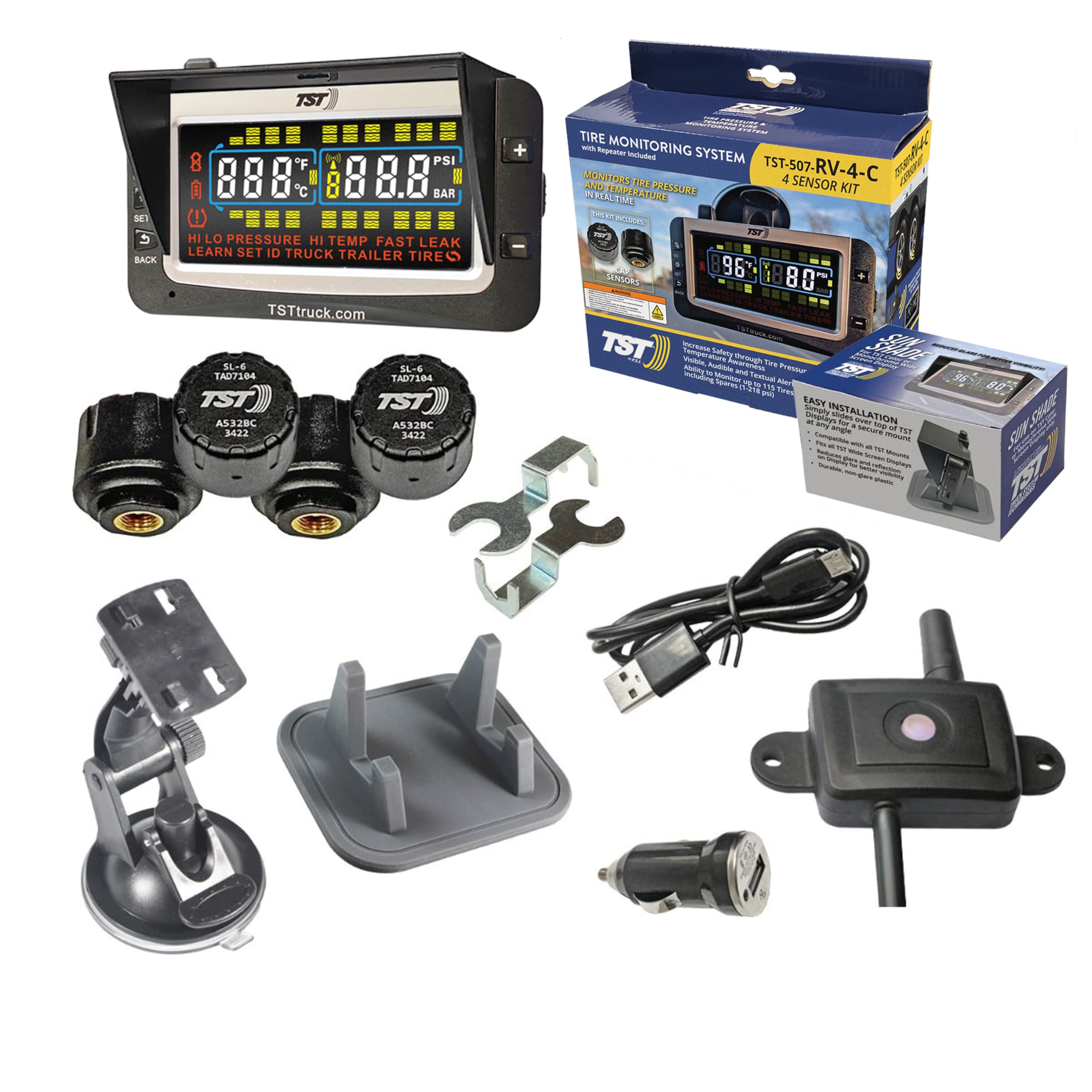

What's Included:

• TST-507-D-C color display monitor
• Suction cup mount for windshield installation
• Cradle mount for dashboard placement
• Power cable with micro-USB connector

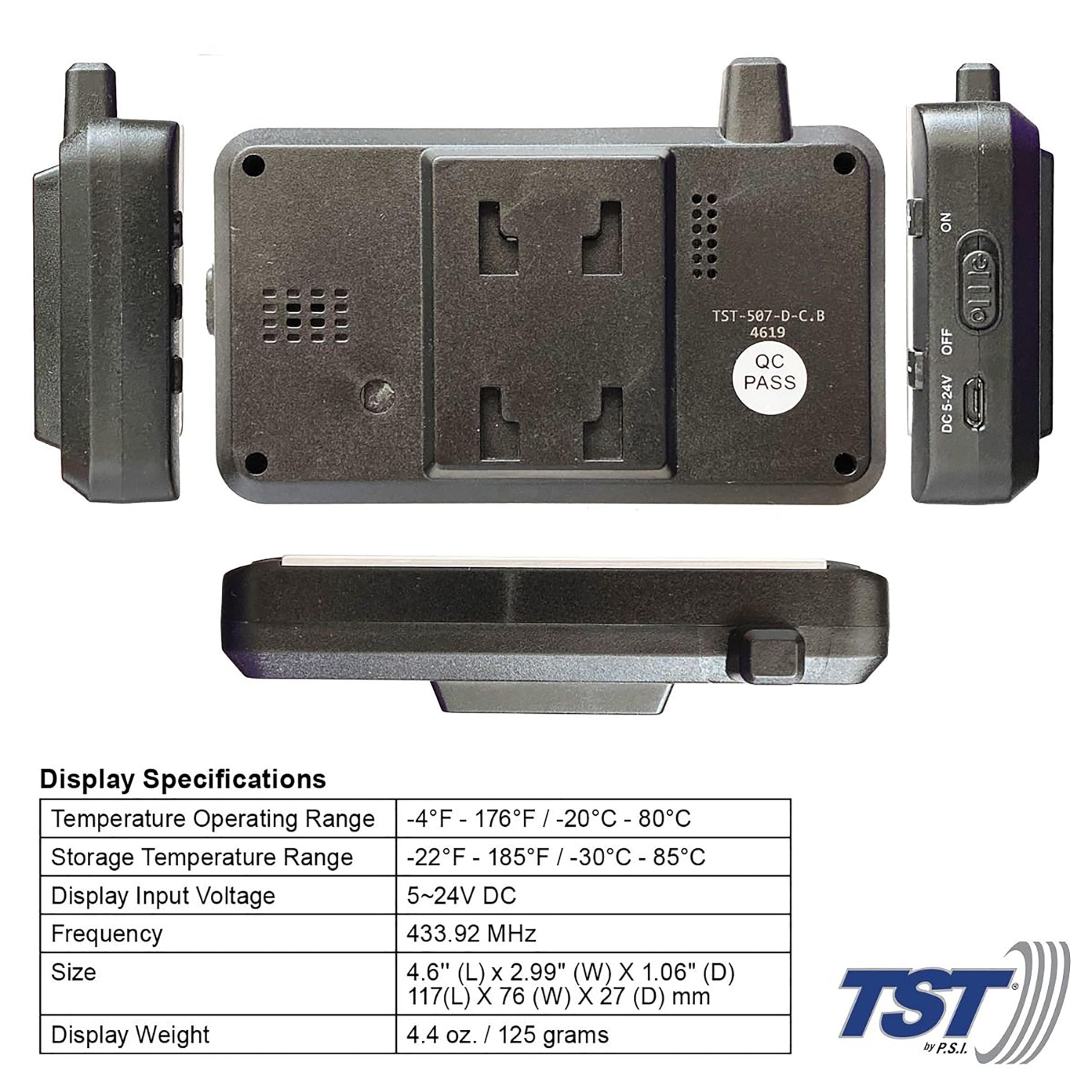

This display unit is designed for easy installation with multiple mounting options and works seamlessly with existing TST 507 Series TPMS components. The programmable system allows users to customize pressure and temperature parameters for different axles and vehicles, making it ideal for RV owners, commercial haulers, and anyone towing trailers. Operating temperature range is -4°F to 176°F (-20°C to 80°C). Backed by a limited 3-year warranty.
