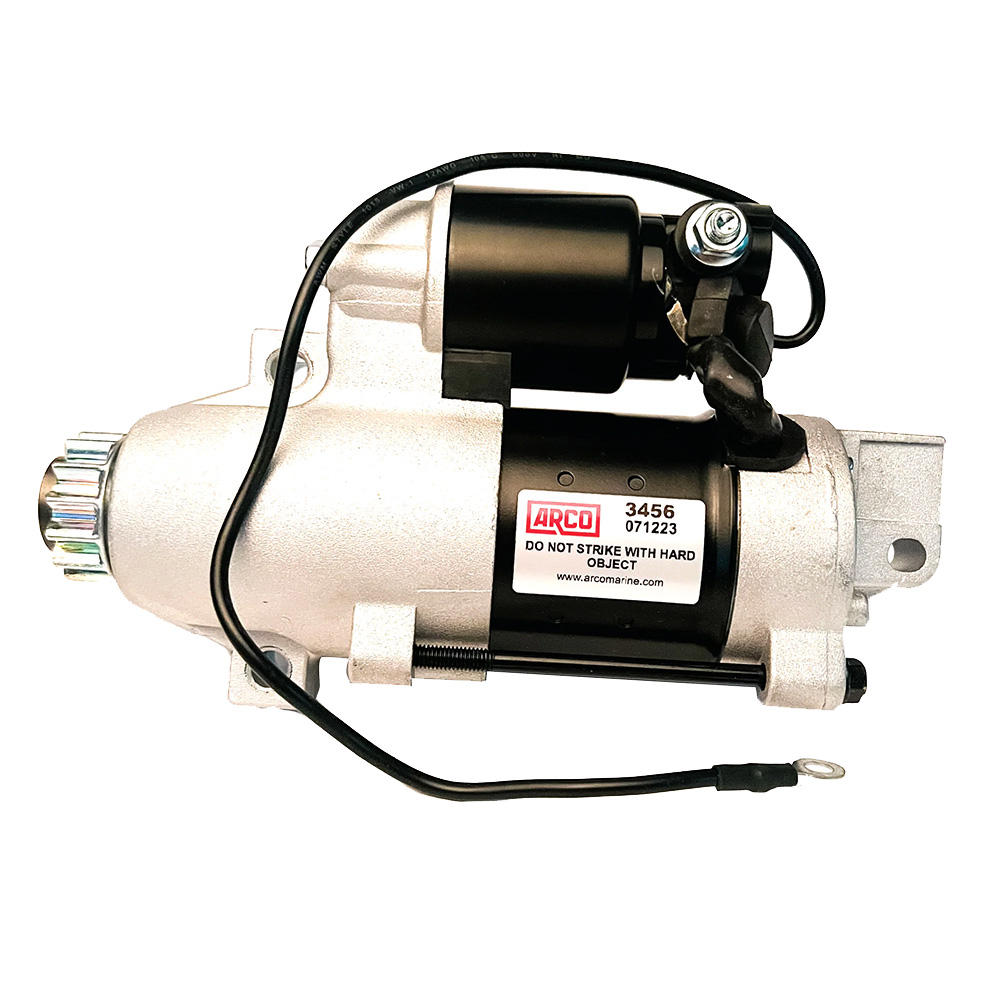

Arco Starting & Charging 3456 Marine Outboard Starter for Yamaha 200-250HP

The Arco Starting & Charging 3456 is an original equipment quality replacement starter designed specifically for Yamaha outboard motors. This marine-grade starter fits 200-250HP Yamaha outboards from 2003-2009, delivering reliable starting performance in demanding marine environments.

Key Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and epoxy-painted to reduce corrosion in saltwater conditions
• Sealed construction to minimize water intrusion
• Armatures tested to withstand 50 times operating voltages for exceptional durability
• Engineered for long life and optimum performance

Installation & Maintenance Tips:

Arco recommends using a fully charged battery during installation, as a weak battery can damage the starter and starter solenoid. Clean all electrical connections thoroughly before installation—corroded connections create resistance that lowers the amperage required for an efficient starting circuit.

OEM Cross-References:

• Yamaha 60X-81800-01-00
• Yamaha 60X-81800-00-00
• Yamaha 60V-81800-00-00
• Sierra 18-6832
• Hitachi S114-863

Warranty Coverage:

When properly installed, this starter is warranted against defects in materials and workmanship for 12 months (leisure use) or 90 days (commercial/racing applications). Register your product within 30 days of purchase at arcomarine.com/product-registration to receive an additional year of warranty coverage.
