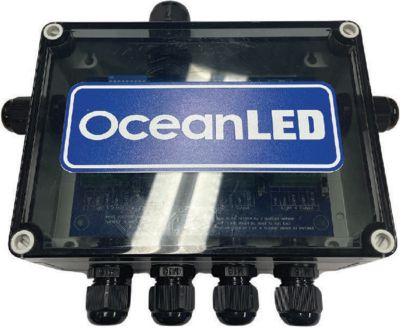

OceanLED 013204 OceanConnect DMX Junction Box Waterproof IP66

The OceanLED OceanConnect Junction Box is a waterproof IP66-rated DMX control center designed specifically for marine lighting applications. This intelligent junction box operates on low-voltage DC power (9-32V) and provides centralized control for both DMX-enabled and standard DC-powered lighting systems on boats, yachts, and other marine vessels.

Power Distribution and Control:

• Four individually switched and fused power outputs, each rated at 6 amps maximum
• Compatible with OceanLED X-Series DMX lights with individual addressing capability
• Supports DC-powered lights and other DC-switched devices
• Operates on 12/24V DC systems with maximum 32V DC tolerance
• Onboard DMX terminator with on/off switch for system optimization

Connectivity Features:

• One DMX input for connection to DMX controller
• One DMX output for daisy-chaining multiple junction boxes
• M20 power input cable gland and four M16 cable glands for DMX and light outputs
• Power input terminals accept 8-20 AWG wire gauge
• DMX and light output terminals accept 12-28 AWG wire gauge

Construction and Dimensions:

• Rugged IP66-rated polycarbonate enclosure built for harsh marine environments
• Compact dimensions: 9" x 6.8" x 2.3" (including cable glands)
• Lightweight design at 0.6 lbs for easy installation

Complete Kit Includes:

• OceanConnect junction box unit with four 7.5A blade fuses installed
• Four mounting screws for secure installation
• One twin entry cable grommet
• Four blanking plugs for unused ports

The OceanConnect provides a professional solution for managing complex marine lighting systems, enabling seamless integration of DMX-controlled lights with traditional DC lighting while maintaining waterproof reliability in demanding marine conditions.
