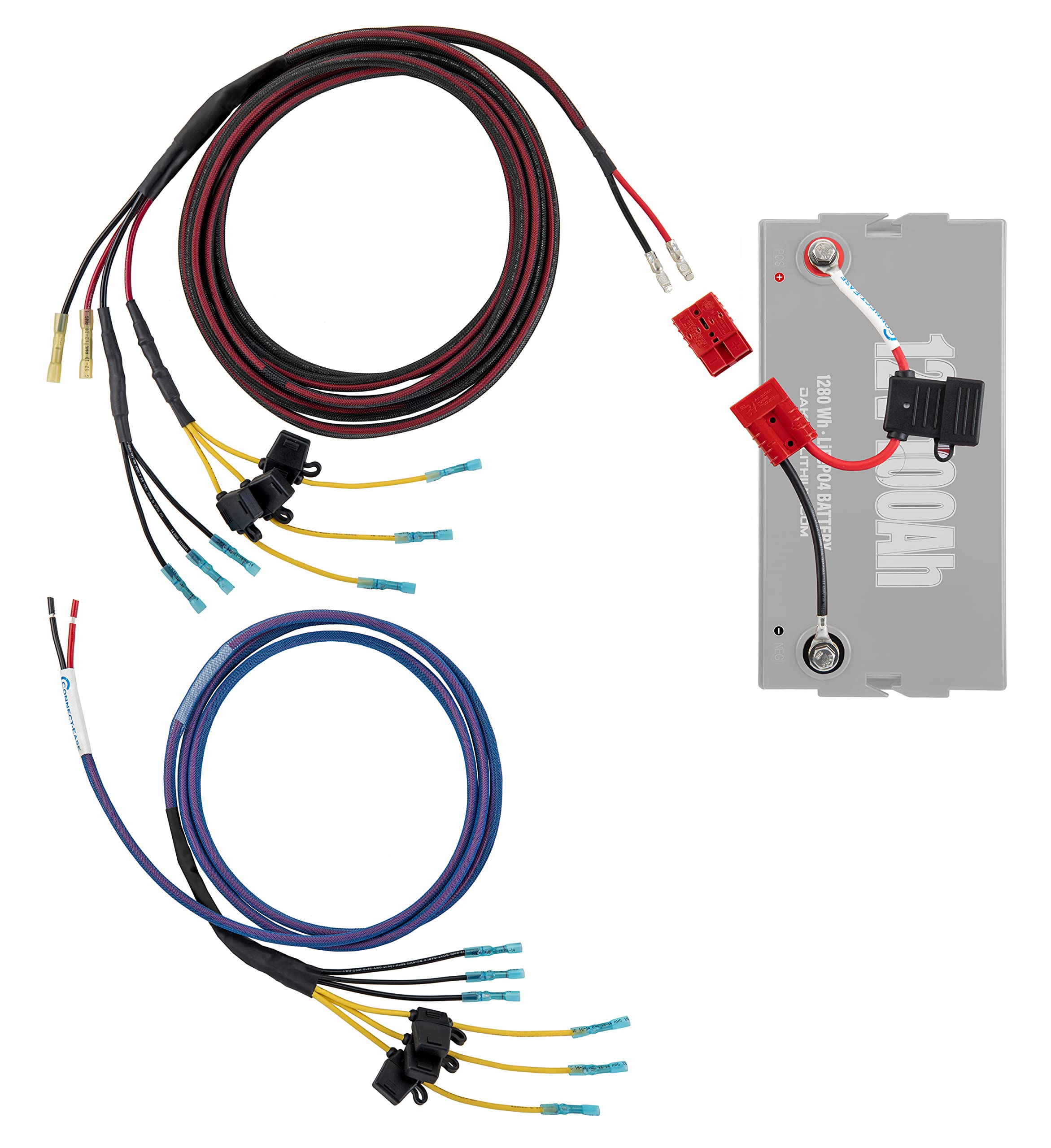

Connect-Ease RCE12VGRP1618 Graph Power Rigger Marine Wiring Harness Kit for 16-18 ft Console Boats

The Connect-Ease Graph Power Rigger is a plug-and-play marine wiring harness kit designed to deliver clean, interference-free power to all your boat electronics. This complete rigging solution eliminates voltage drop and RF noise that can compromise fish finder and GPS performance, providing direct 12V power from your battery to every device at the console and bow.

Dual Backbone Design:

• Console Backbone: 13 feet of 8-gauge marine-grade sheathed wire with 3 fused connections for helm electronics
• Bow Backbone: 8 feet of 10-gauge marine-grade sheathed wire with 3 fused connections for front deck equipment
• Total capacity: Up to 6 devices with individual fused protection

Key Features:

• SB-50 (Anderson-style) quick-connect plug for fast battery swaps during tournaments
• 30-amp MAXI fuse at battery connection for main harness protection
• Six inline blade-fuse holders with both 3-amp and 5-amp fuses included for customizable device protection
• Waterproof heat-shrink butt splices and marine-grade connections resist corrosion and RF interference
• Lithium battery compatible for modern power systems
• Made in USA (Prior Lake, Minnesota)

What's Included:

• Two pre-wired harnesses (13 ft console + 8 ft bow)
• Two SB-50 quick-connect plugs
• 30-amp fuse and holder
• Six inline fuses (3 × 3A, 3 × 5A)
• Six waterproof heat-shrink butt splices (4 × 20-22 AWG, 2 × 14-16 AWG)
• Cable ties and illustrated installation guide

Compatible with all major marine electronics brands including Humminbird, Garmin, Lowrance, and more. Perfect for powering fish finders, GPS units, NMEA boxes, LiveScope systems, and networking equipment. Designed for 16-18 foot console boats in freshwater or saltwater applications.
