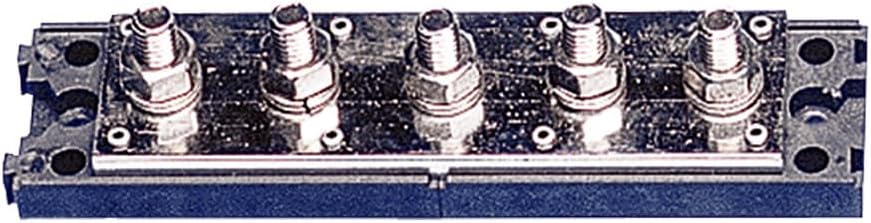

NewMar BB-5 Heavy Duty 500 Amp Bus Bar 5 Stud

The NewMar BB-5 is a heavy-duty bus bar assembly rated for 500 amps, ideal for use as a DC ground tie point or positive distribution bus in marine, RV, and automotive electrical systems. This professional-grade component features a 1/4 inch thick copper bar with five 5/16 inch studs spaced on 1 inch centers, providing robust common connection points for large gauge wire distribution.

Key Features:

• 500 amp current rating for high-capacity applications
• Five 5/16 inch studs accommodate standard ring terminals
• 1/4 inch thick solid copper bar ensures excellent conductivity and heat dissipation
• Insulated base constructed from reinforced nylon resin for electrical safety
• Clear protective cover shields connections from accidental contact
• 1 inch stud spacing provides adequate clearance for multiple connections

Specifications:

• Number of Studs: 5
• Stud Size: 5/16 inch
• Stud Spacing: 1 inch on center
• Copper Bar Thickness: 1/4 inch
• Overall Dimensions: 6-1/16 inches x 1-1/2 inches
• Current Rating: 500 amps

This bus bar assembly is commonly used in battery banks, inverter installations, DC distribution panels, and anywhere multiple high-current connections need to be consolidated into a single, organized junction point.
