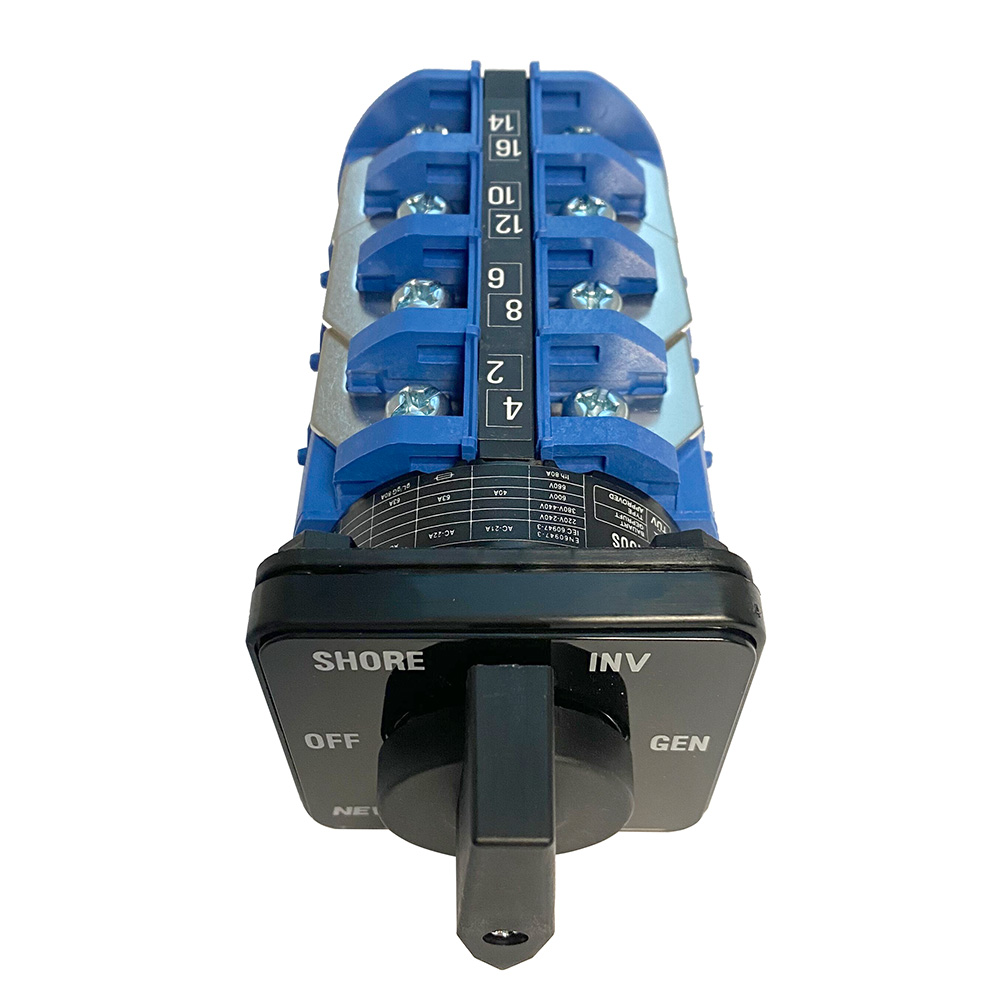

NewMar SS SWITCH7.5INV 63A AC Selector Switch with Inverter

The NewMar SS SWITCH 7.5 INV is a heavy-duty AC source selector switch designed for marine vessels and RVs equipped with multiple AC power sources including generators, inverters, and shore power. This essential safety device isolates power source inputs to prevent the dangerous situation of having two AC sources applied to the same circuit simultaneously, protecting both equipment and personnel.

Key Features:

• Heavy-duty 63-amp contacts rated for 115/230V AC operation
• 2-pole, 3-position switch plus OFF position

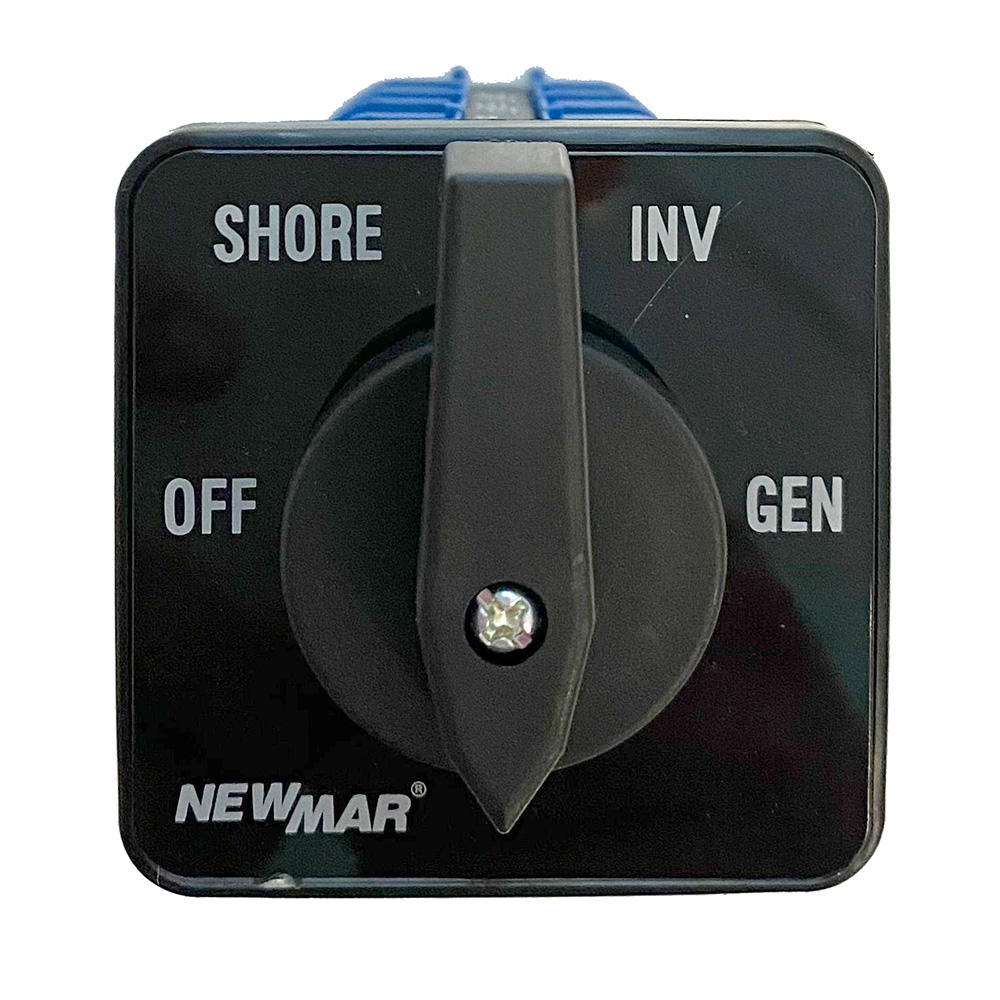

• Engraved escutcheon plate with clear position markings: OFF-GEN-INV-SHORE
• Positive step cam mechanism ensures low-resistance contact closure
• Rear-panel mounting design fits panels up to 1/4 inch thick
• Compact 3-1/2 inch depth for easy installation in tight spaces
• cUL approved and CE-marked for safety compliance

Technical Specifications:

• Current Rating: 63 amps @ 115/230V AC
• Number of Poles: 2
• Switch Positions: 3 + OFF (4 total positions)
• Mounting Depth: 3-1/2 inches
• Maximum Panel Thickness: 1/4 inch

This AC selector switch is ideal for boats, yachts, motorhomes, and RVs that need reliable switching between shore power, onboard generator, and inverter power sources. The robust construction and positive switching action ensure years of dependable service in demanding marine and mobile environments.
