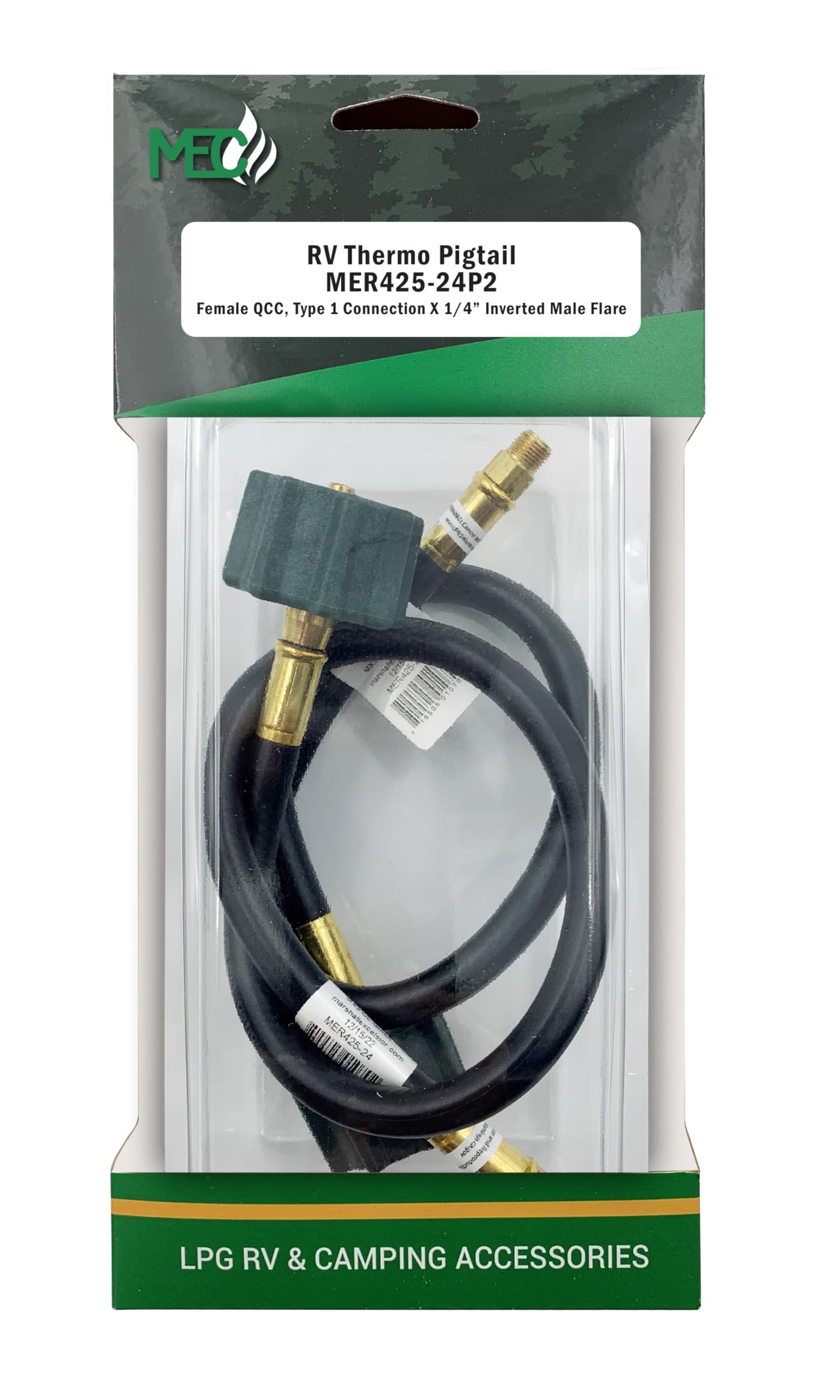

AP MER425-24P2 RV Propane Pigtail Hose 24" 1/4" Inverted Flare to QCC Type 1 - Pack of 2

The AP MER425-24P2 is a professional-grade RV propane pigtail hose set designed for connecting auto-changeover regulators to RV propane cylinders. This convenient 2-pack includes two 24-inch flexible thermoplastic hoses that meet the demanding requirements of motorhomes, travel trailers, and recreational vehicles.

Key Features:

• 24-inch overall length provides flexible installation options
• Female QCC Type 1 ACME nut connection to propane cylinder
• 1/4-inch male inverted flare connection to regulator
• UL and CGA approved for safety and reliability
• Excess flow safety shut-off protection
• Thermal link safety feature prevents flow during high heat conditions
• Fully crimped brass ferrules for secure, leak-free connections
• 1/4-inch inside diameter thermoplastic hose construction
• Rated for 350 PSIG working pressure
• 400 pound pull test rating ensures durability
• 200,000 BTU capacity suitable for standard RV applications
• 100% leak tested at the factory

These pigtail hoses feature integrated safety mechanisms including an excess flow limiting device that automatically restricts gas flow if excessive flow is detected. The thermal link protection shuts down flow when exposed to high temperatures, providing critical fire safety. The green Type 1 ACME nut connection is hand-tightenable and swivels for easy installation without tools, meeting RVIA and NFPA 1192 compliance standards required for RV propane systems.

Specifications:

• Hose Length: 24 inches
• Hose Inside Diameter: 1/4 inch
• Connection 1: Female QCC Type 1 ACME nut (green)
• Connection 2: 1/4-inch male inverted flare
• Working Pressure: 350 PSIG
• BTU Capacity: 200,000 BTU
• Quantity: 2 hoses per package
• Approvals: UL and CGA certified

Ideal for replacement of worn or damaged propane pigtails on RV two-stage regulators and auto-changeover systems. Each hose in this 2-pack is manufactured by Marshall Excelsior Company and branded under AP Products, ensuring top-quality construction and compliance with all recreational vehicle propane system standards.
