Shadow-Caster LED Lighting SCM-LC-N2K-PLUS-V2 Light Commander V2 Multi-Zone Lighting Controller NMEA 2000 Ethernet

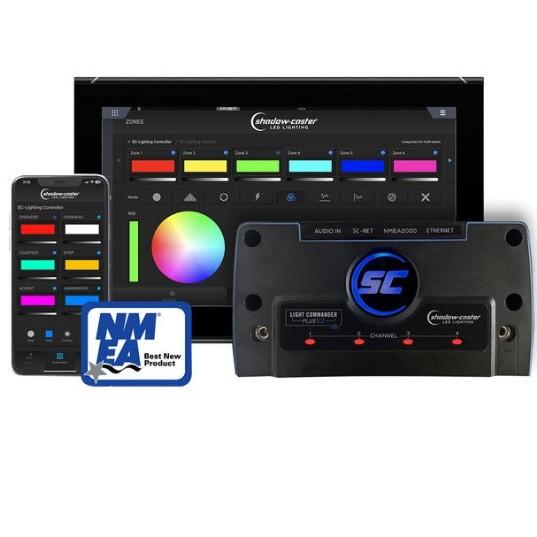

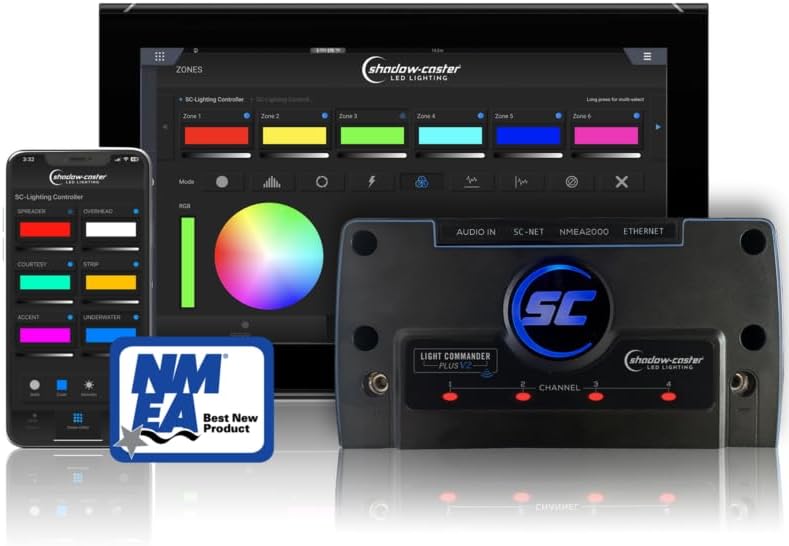

The Shadow-Caster Light Commander V2 is a multi-zone marine LED lighting controller (lighting control module) with NMEA 2000 and Ethernet connectivity. It follows the NMEA 2000 lighting control standards, so it integrates with your boat's marine electronics and MFD. It controls up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights.

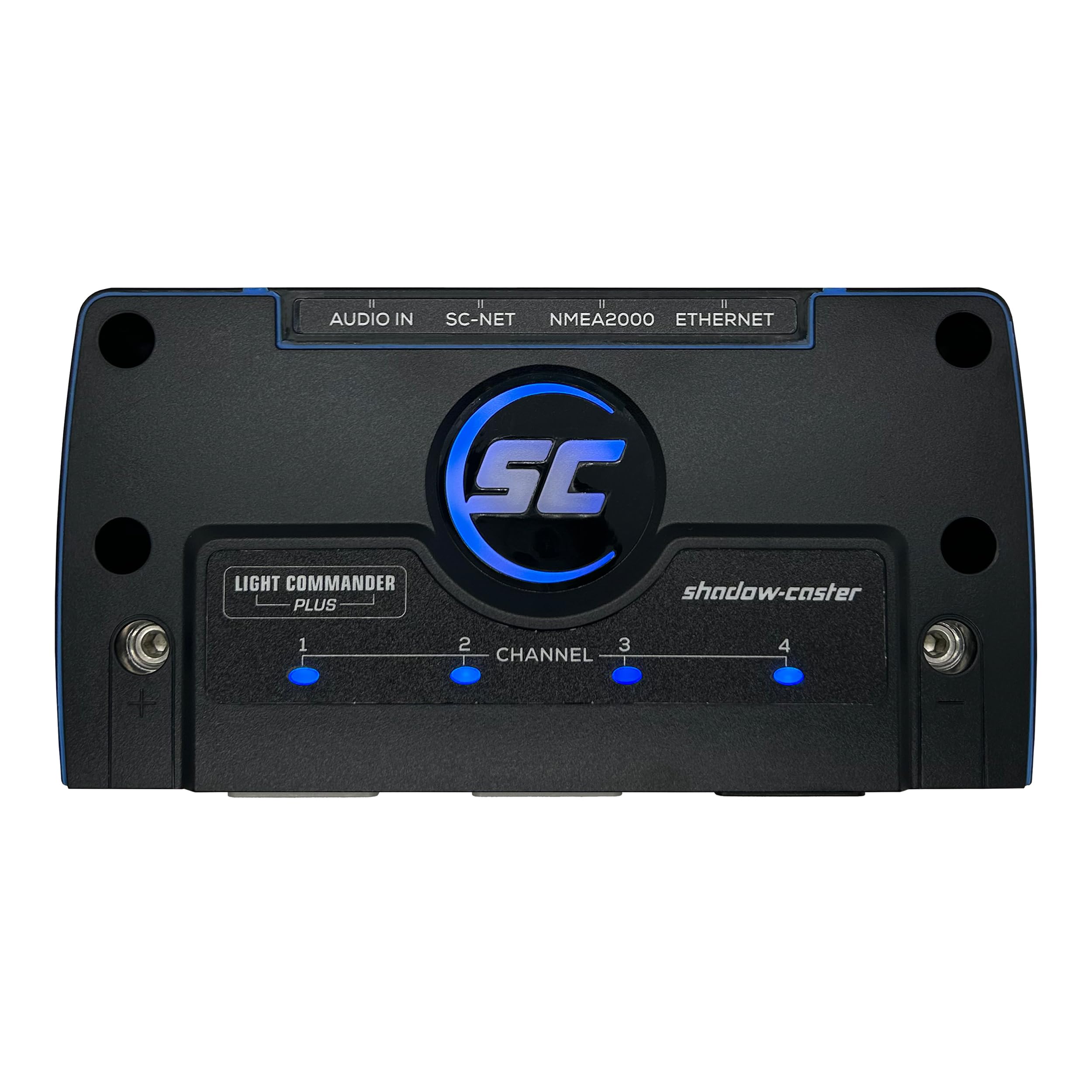

You can set and store lighting scenes, including color change, fade, rotation and strobe, as well as music sync effects. The controller sits in an IP67-rated enclosure with Deutsch-style IP67 connections for marine use. A backlit logo and zone indicator LEDs show functions and operation.

Features:

• Connects to an NMEA 2000 backbone or an MFD network port
• Global control for all lighting
• Up to 6 separate lighting zones, expandable to 12 or 18 by connecting additional Light Commander modules
• 6 "Instant ON" switch inputs turn on lights without MFD control
• Supports RGB and RGBW lighting
• Integrated HTML interface with Ethernet connectivity
• All-in-one design, with no separate MFD communication bridge needed
• Digital over-current protection, set at 15 amps per channel
• Built-in 3.5mm female audio port and microphone for music sync input
• Deutsch-style IP67 connections for clean, OEM-style installations

Specifications:

• Enclosure rating: IP67
• Input voltage range: 10 to 30V
• Power: supports over 600 watts of RGB lighting
• 15 amps per RGB(W) zone, 60 amps maximum
• Music sync processed by onboard DSP (digital signal processing)
• Shadow-NET® bus for system expansion
• 24-bit color support with gamma correction
• Enclosure size: 8.9 in (226 mm) x 4.75 in (120 mm) x 1.8 in (46 mm)
