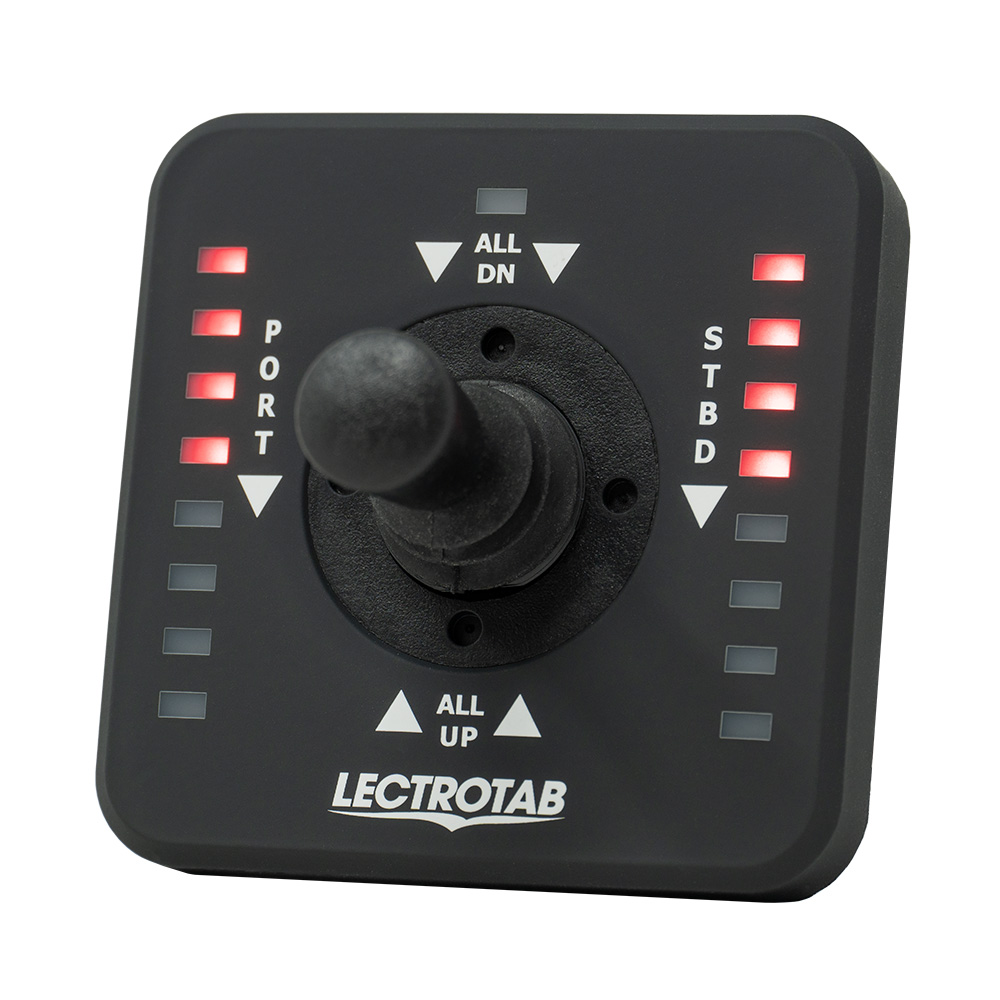

Lectrotab JLC-11 Joystick LED Trim Tab Control

The Lectrotab JLC-11 is a microprocessor-based joystick control system designed to provide intuitive, user-friendly operation of marine trim tabs. This advanced control unit features LED position indicators and NMEA 2000 compatibility for seamless integration with modern boat electronics.

Key Features:

• Single joystick control for simultaneous operation of both trim tabs
• LED display shows real-time position of each trim tab
• Automatic LED brightness adjustment - dims in darkness and brightens in sunlight
• NMEA 2000 compatible with optional JLC-NMEA adapter
• Dual station ready - add a second JLC-11 and JR-* cable for helm flexibility
• Automatic tab retraction and calibration when ignition is turned off
• Memory function returns tabs to last position when ignition is cycled
• Completely sealed and waterproof construction with UV-resistant materials
• No external power module required for simplified installation
• Compatible with single or dual actuator configurations per tab
• Operates on both 12 VDC and 24 VDC electrical systems
• Easy upgrade path from older Lectrotab control systems

Technical Specifications:

• Display Color: Black
• Overall Dimensions: 3.0" W x 3.0" H x 2.0" D (77mm x 77mm x 50mm)
• Mounting Hole Cutout: 2.625" diameter (66.7mm)
• Voltage: 12/24 VDC
• Fuse Requirements (Power Input): 12 VDC - 15 or 20 Amps, 24 VDC - 10 Amps
• Fuse Requirements (Auxiliary): 1 to 2 Amps
• Configuration: Single or dual station, 1 or 2 actuators per tab

The JLC-11 represents the latest evolution in trim tab control technology, combining precision electronic control with robust marine-grade construction for reliable performance in demanding saltwater environments.
