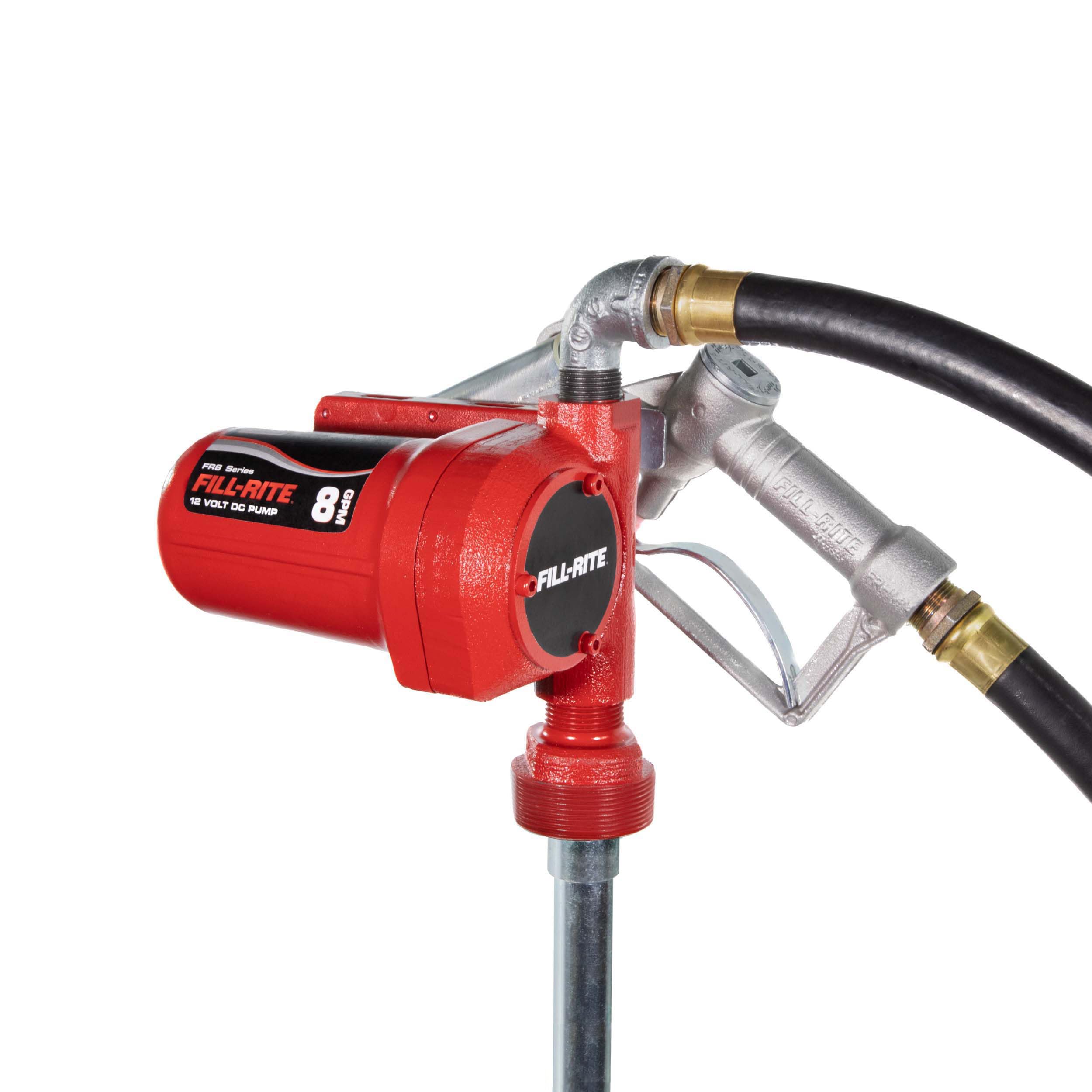

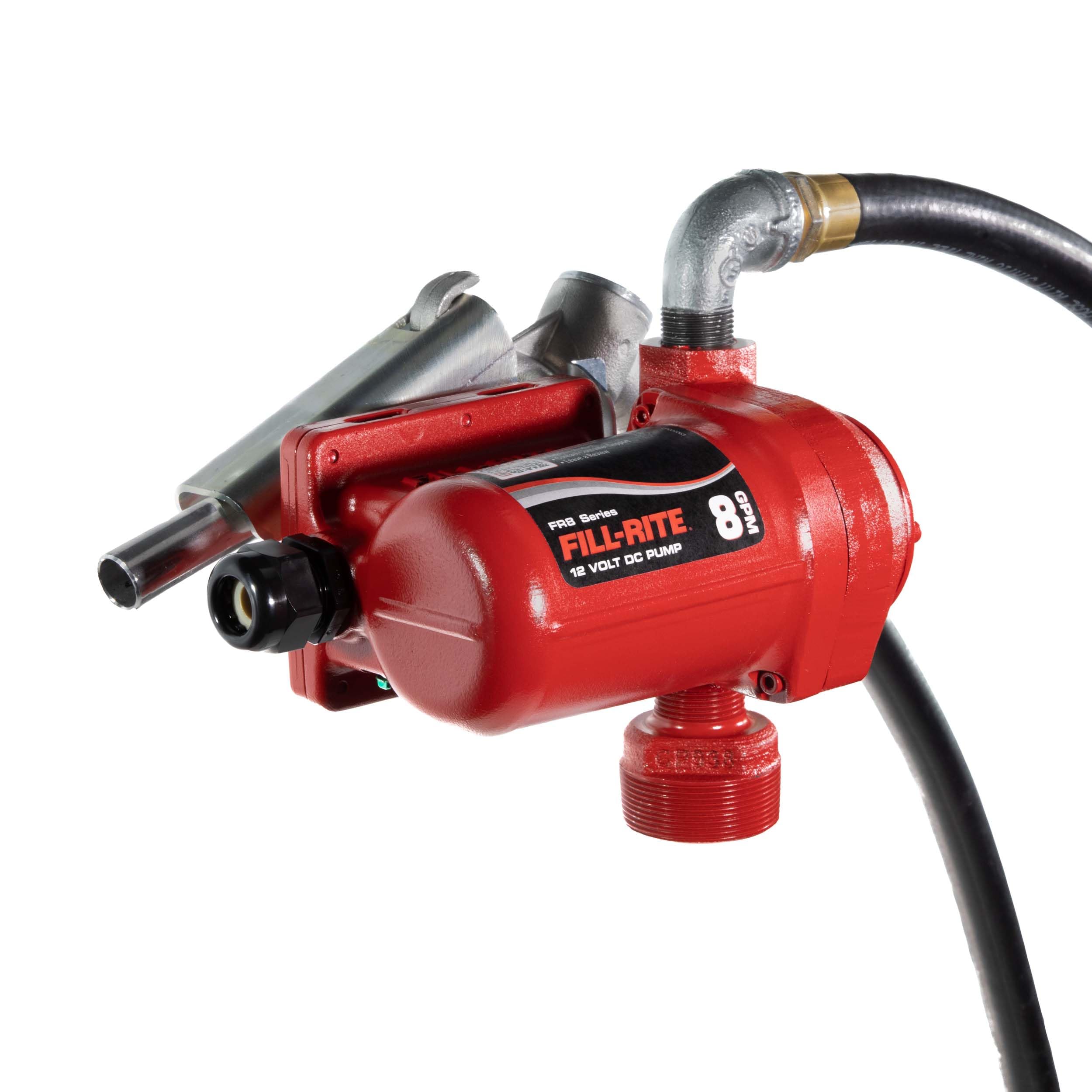

Fill-Rite FR8 12V Fuel Transfer Pump 8 GPM with Hose and Nozzle

The Fill-Rite FR8 is a heavy-duty 12-volt DC fuel transfer pump designed for efficient and safe transfer of diesel, gasoline, kerosene, E15, and biodiesel blends up to B20. With a flow rate of 8 gallons per minute and a maximum discharge pressure of 12 PSI, this electric pump delivers reliable performance for farm, fleet, and jobsite applications.

Complete Pumping System:

• 12V DC electric motor with 8 GPM flow rate
• 3/4-inch NPT cast aluminum manual nozzle
• 3/4-inch x 12-foot discharge hose with integrated static ground wire for safe fuel transfer
• Three-piece steel telescoping suction pipe adjusts from 13-13/16 inches to 36-15/16 inches
• 15-foot power cable with 12-gauge wire and quick-connect terminals
• 6-foot maximum suction lift capability

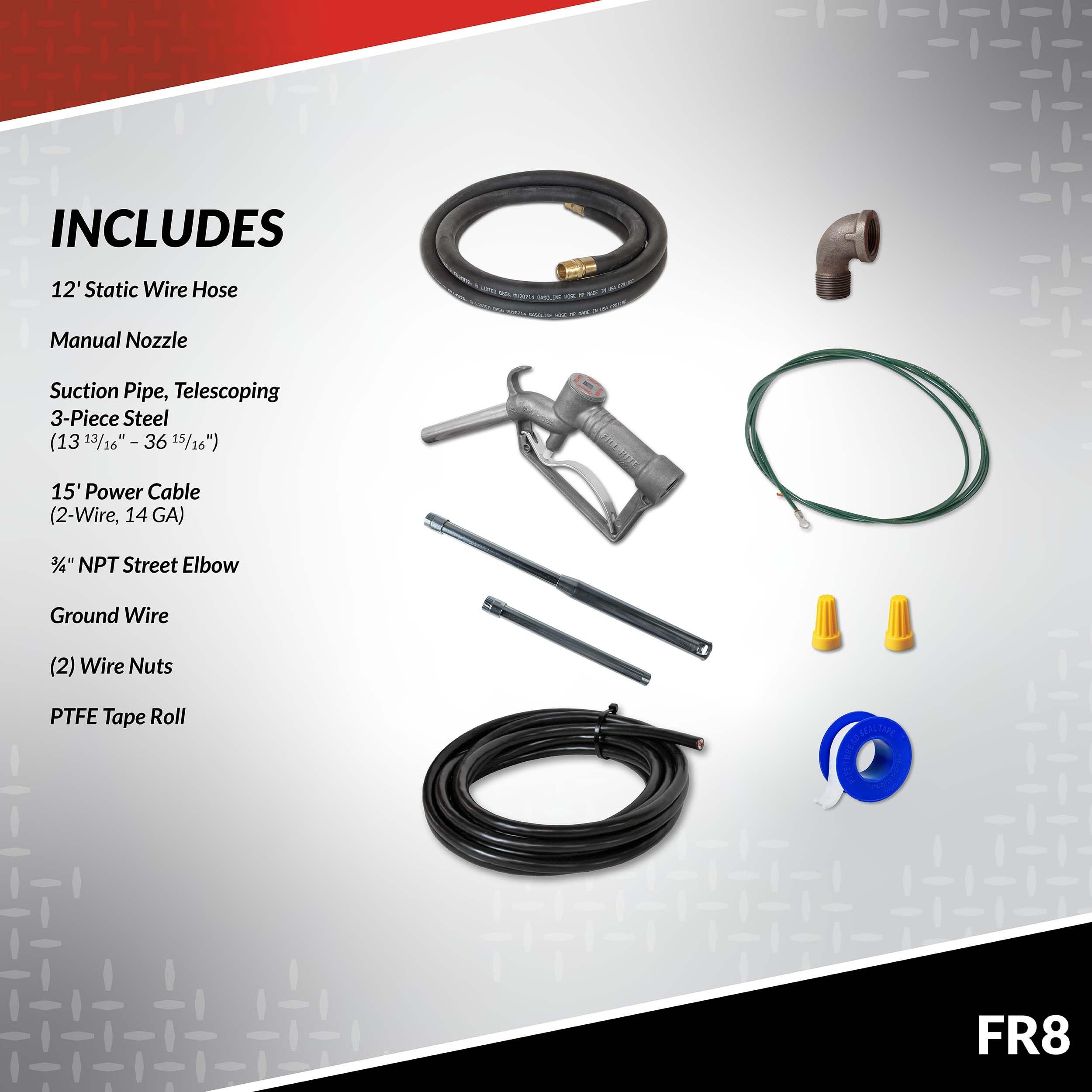

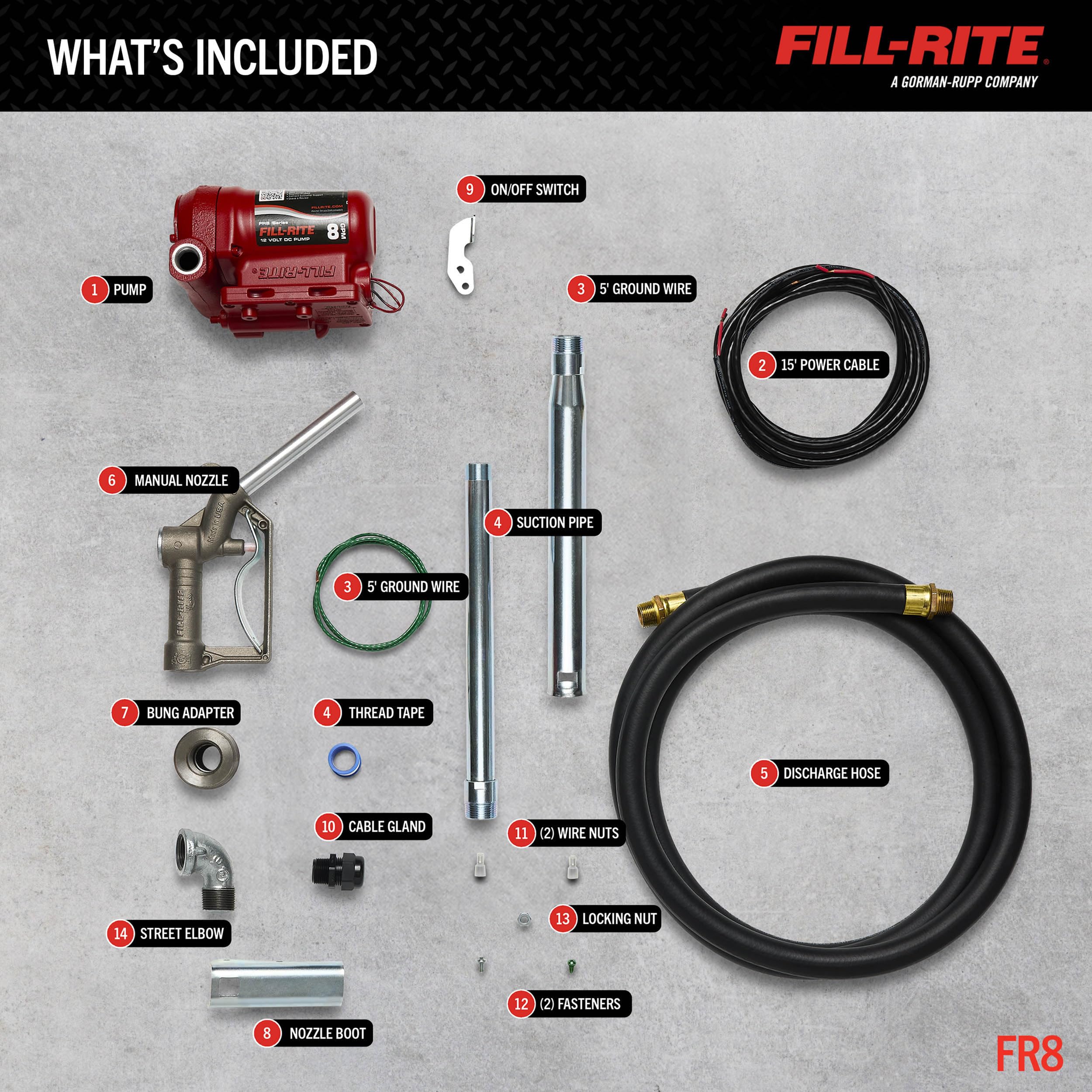

What's Included:

• FR8 fuel transfer pump
• 3/4-inch cast aluminum manual nozzle
• 12-foot discharge hose with static ground wire
• Three-piece telescoping suction pipe
• 15-foot two-wire power cable
• 3/4-inch NPT street elbow
• Two wire nuts
• PTFE tape roll

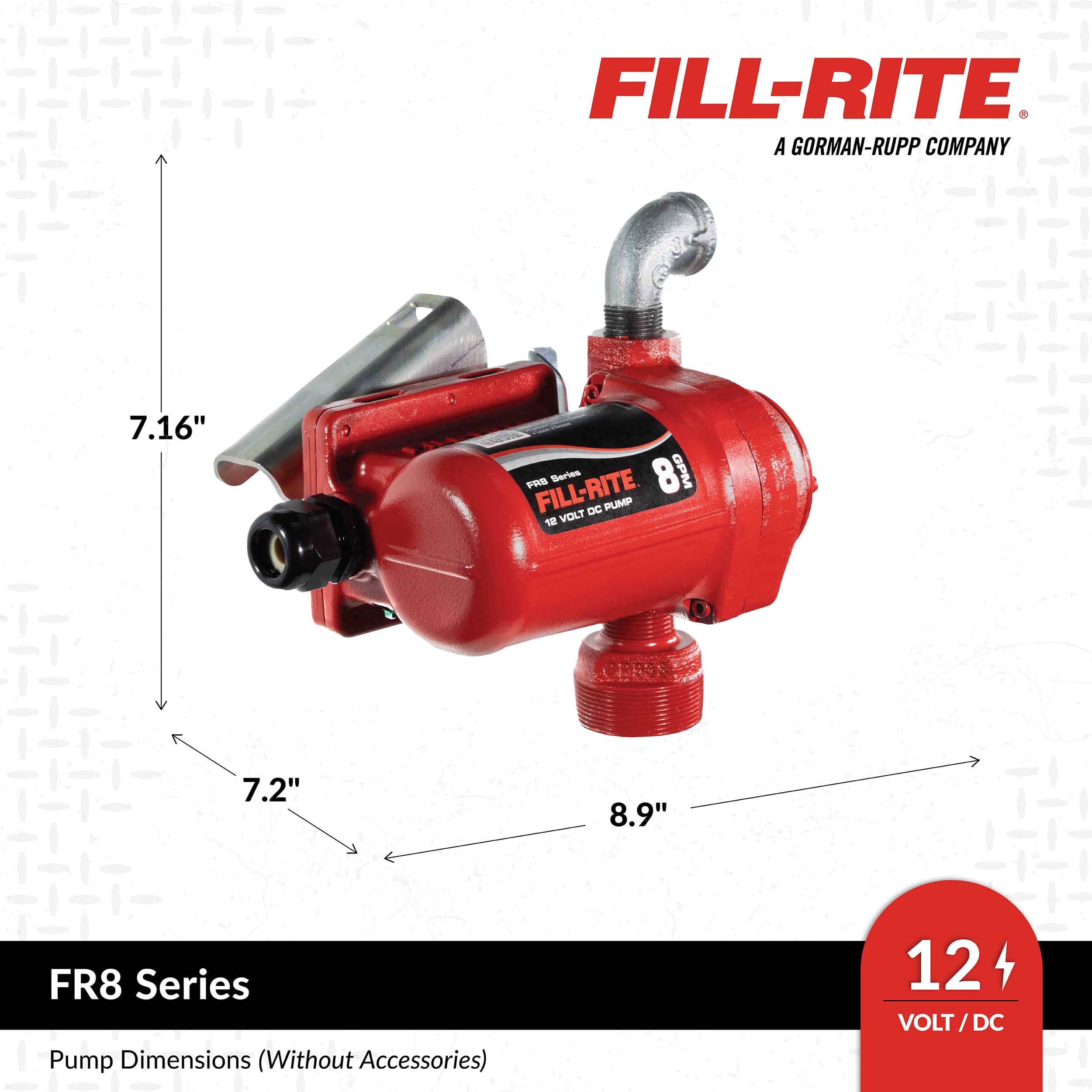

Compact dimensions of 7.2 inches wide x 7.16 inches high x 8.9 inches deep make the FR8 easy to mount and install in tight spaces. The complete accessory package means you have everything needed for immediate operation right out of the box.
