Blue Sea Systems 3123 SMS Panel Enclosure 230V ELCI 32A with 3 Blanks

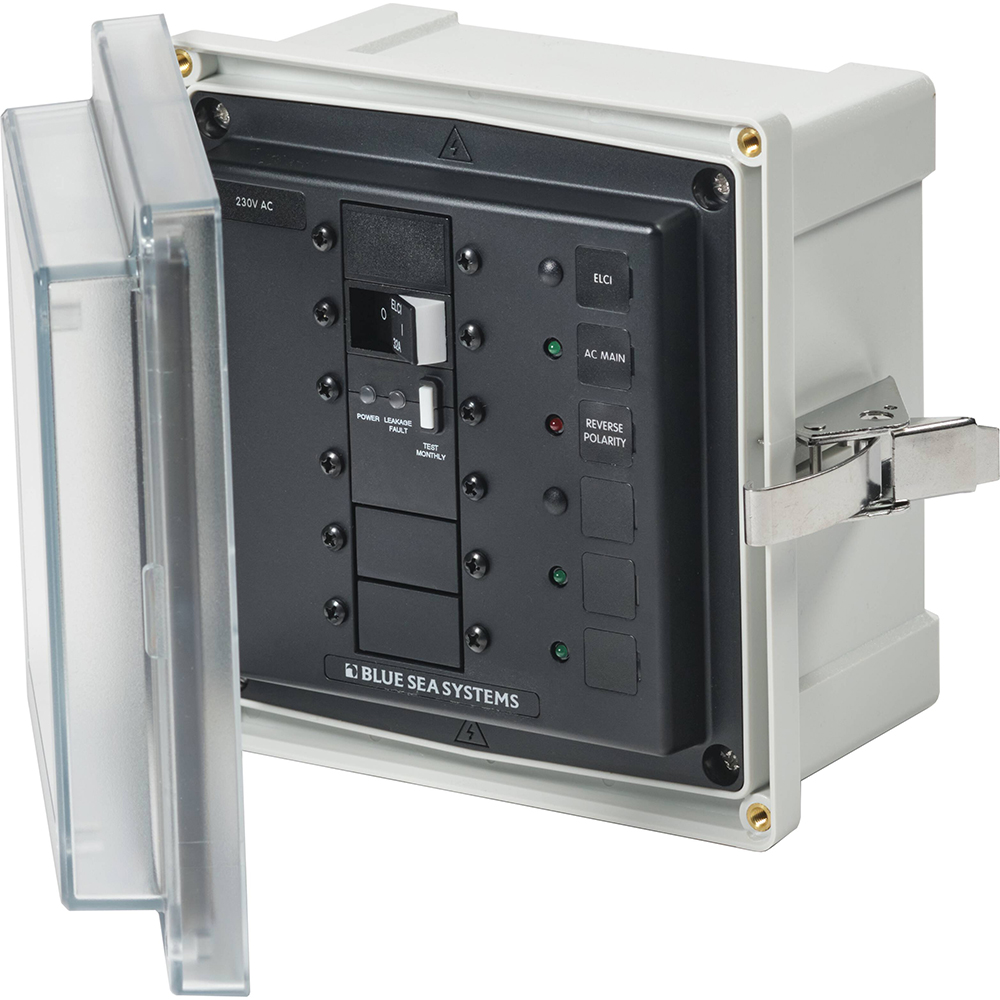

The Blue Sea Systems 3123 SMS Panel Enclosure is engineered for marine AC electrical systems requiring Equipment Leakage Circuit Interrupter (ELCI) protection. This robust enclosure accommodates one 32A ELCI main circuit breaker plus three blank positions for custom breaker configuration, making it ideal for 230V AC shore power installations.

Key Features:

• Glass-filled polycarbonate base construction for durability in harsh marine environments
• Clear protective cover allows instant visual inspection of circuit breaker status
• Oversized, formed-in-place seamless PUR gasket provides superior water resistance
• Overlapping cover design enhances structural strength and gasket protection
• Removable stainless steel hinge pin enables unobstructed installation access
• Stainless steel latch system secures cover without penetrating enclosure
• Three blank apertures accommodate Carling Technologies A and C Series Flat Rocker circuit breakers
• Integrated LED indicators: one red for reverse polarity detection, three green for ON status
• Includes six waterproof cable glands for secure wire entry

Technical Specifications:

• Voltage Rating: 230V AC
• Main Breaker Capacity: 32A ELCI
• Blank Positions: 3
• Overall Dimensions: 7.6" H × 7.4" W × 4.7" D (192 × 188 × 120mm)
• Enclosure Dimensions: 6" H × 6" W × 4" D (152 × 152 × 102mm)
• ABYC E-11 Compliant: When used with ELCI main breaker and mounted within 10 feet of AC shore power inlet

Package Includes:

• 3123 SMS panel enclosure
• Six waterproof cable glands
• Circuit identification labels
• Mounting hardware
• Instruction manual

Note: Circuit breakers sold separately. This enclosure provides the blank positions and infrastructure for custom electrical panel configuration.
