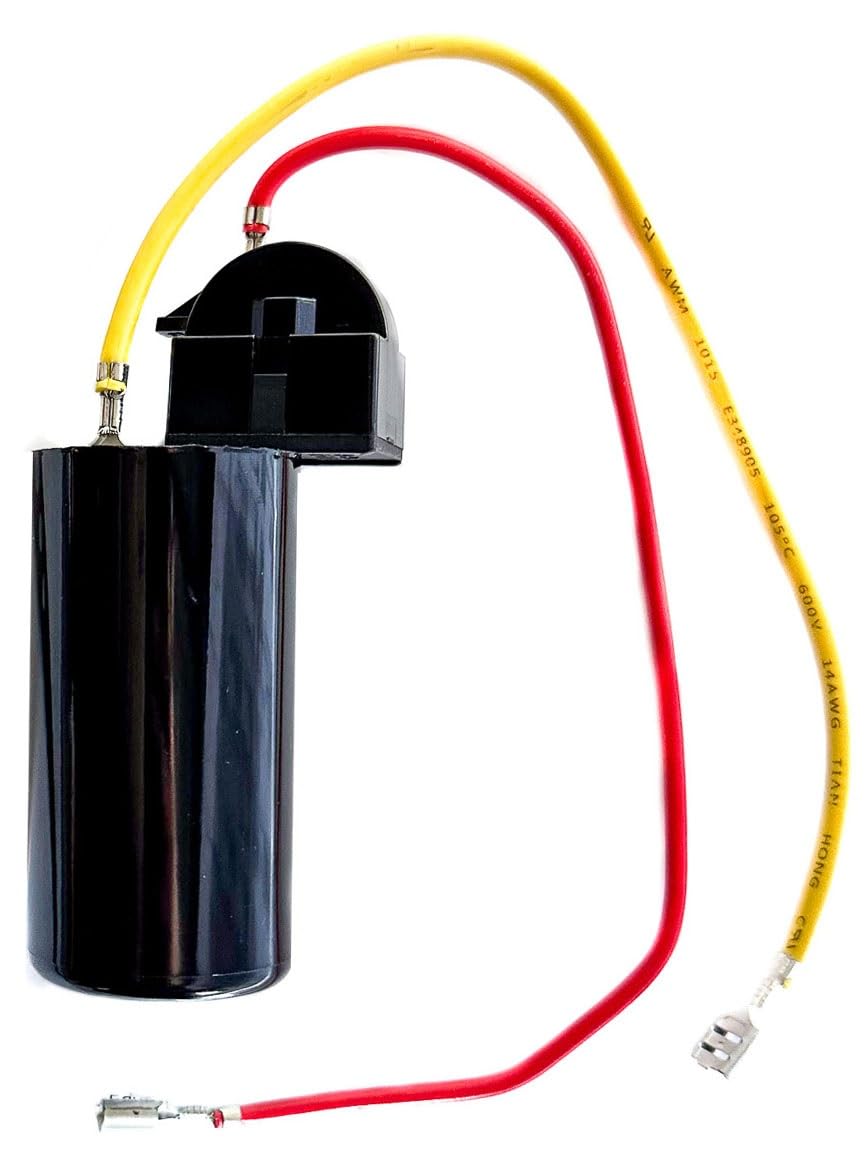

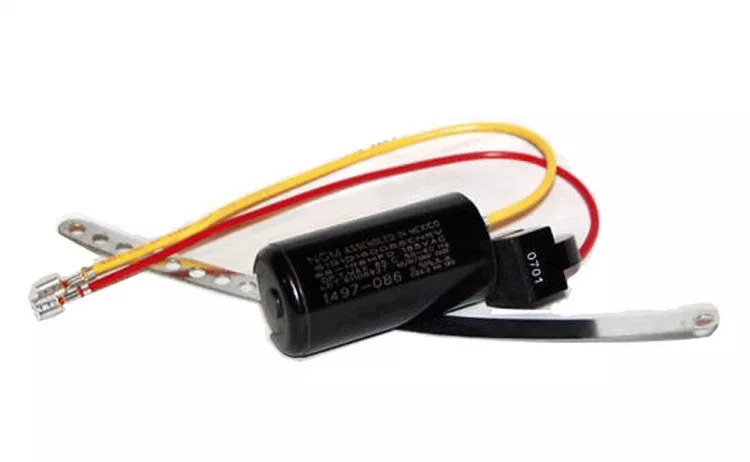

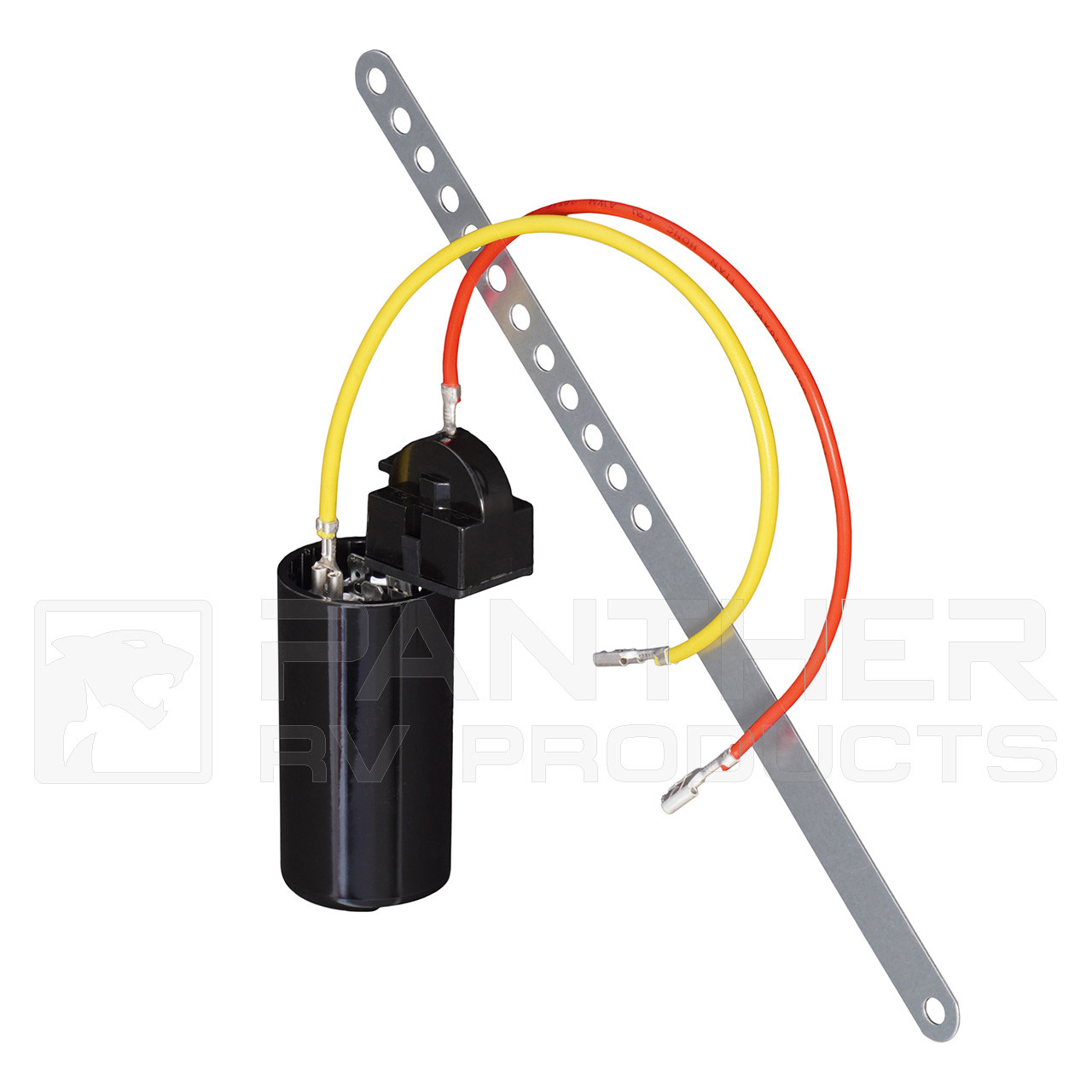

MC 8333A-9021CMC Hard Start Capacitor Kit for Coleman Mach RV Air Conditioners

The MC 8333A-9021CMC is a hard start capacitor kit designed specifically for Coleman Mach RV air conditioners. This essential component provides an extra boost of power to the A/C motor during startup, helping to overcome hard starting conditions such as short cycling or extreme low voltage situations.

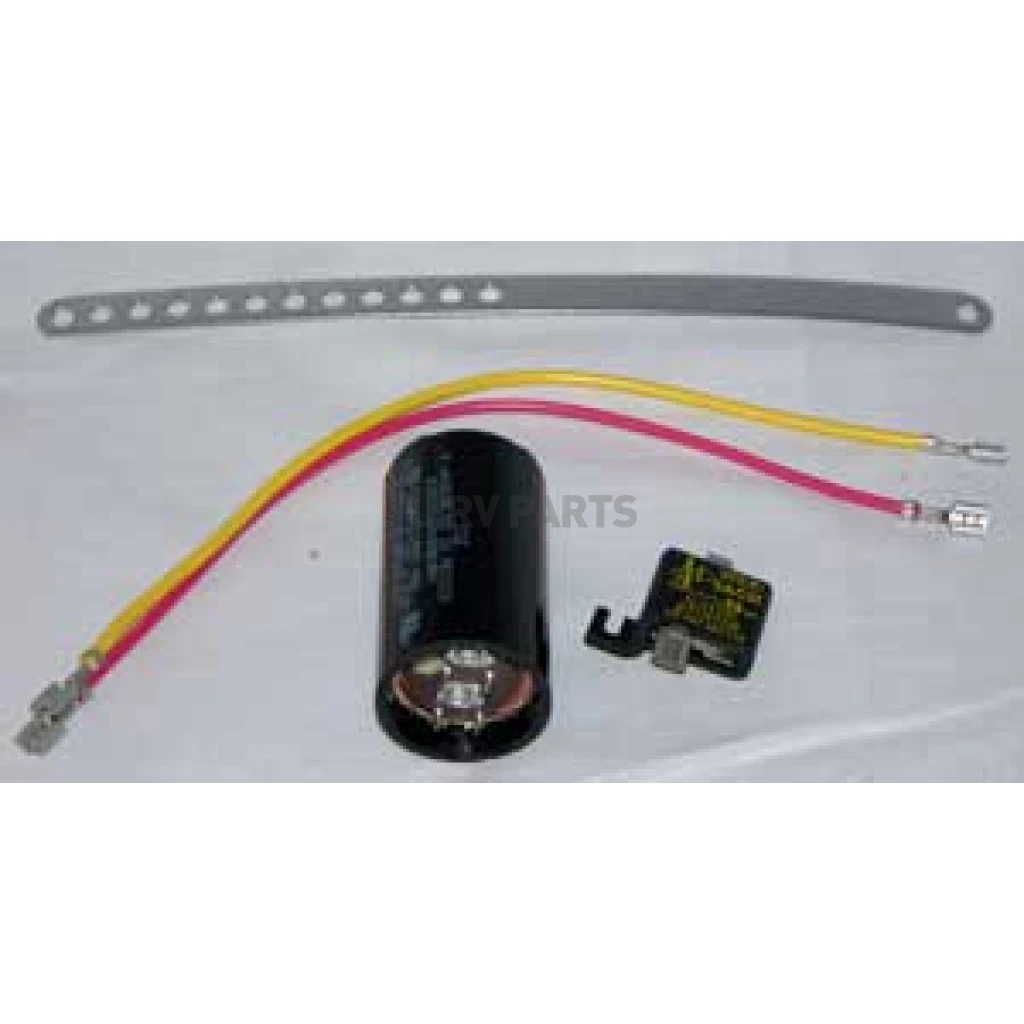

Complete Kit Includes:

• Start capacitor (88-108 MFD, 165 VAC)
• PTCR (Positive Temperature Coefficient Resistor) start device
• Capacitor mounting strap
• Wiring harness with red and yellow wire assemblies
• Installation instructions

Key Specifications:

• Capacitance: 88-108 MFD
• Voltage Rating: 165 VAC
• Frequency: 50/60 Hz
• Temperature Range: -25°C to +65°C

This hard start kit is manufactured by M.C. Enterprises, a trusted supplier of after-warranty replacement parts for recreational vehicle appliances. The kit combines a start capacitor with a PTCR start relay to improve startup reliability and efficiency, extending the service life of your RV air conditioning system while preventing equipment overheating and premature component failure.

Designed for use with Coleman Mach 8000 series air conditioners including 11,000 BTU and 13,500 BTU units. Replaces OEM part number 1497-086 and cross-references with Coleman part numbers 8335-9021, 9333-9021, and 105620-10-70.
