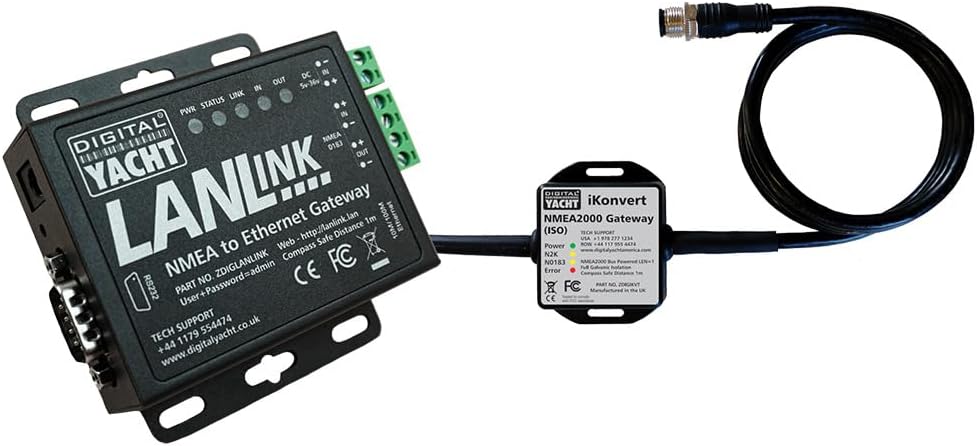

Digital Yacht ZDIGLANLN2K LANLink NMEA 2000 to Ethernet Gateway

The Digital Yacht LANLink is a professional-grade NMEA 2000 to Ethernet gateway that seamlessly integrates your boat's navigation data into your onboard network. This versatile device enables wireless routers and connected devices to access real-time NMEA data, making it compatible with popular marine navigation apps including TZ iBoat, iNavX, NavLink, iSailor, Imray, and Weather 4D.

Key Features:

• NMEA 2000 to Ethernet gateway with iKonvertNMEA certified gateway included
• Web-based configuration interface accessible from any browser
• Supports both TCP/IP and UDP operating modes
• Bi-directional data transfer with support for up to 5 simultaneous TCP/IP connections
• RJ45 Ethernet port (10/100MB) with CAT 5/6 patch cable compatibility
• Static or DHCP IP addressing modes
• Wide voltage input: 10-35V DC (50mA consumption at 12V DC)
• Configurable NMEA 0183 baud rates: 4800 or 38400
• LED indicators for Power, Status, Link, Data In, and Data Out
• Operating temperature range: -25°C to +70°C
• Compact dimensions: 95mm (W) x 86mm (H) x 25mm (D)

Simply connect the LANLink to your onboard router via an Ethernet cable and to your NMEA 2000 backbone. Configure apps by entering the gateway's IP address and port number to begin streaming navigation data wirelessly throughout your vessel. Optional RS232 connectivity available (non-concurrent with NMEA operation).
