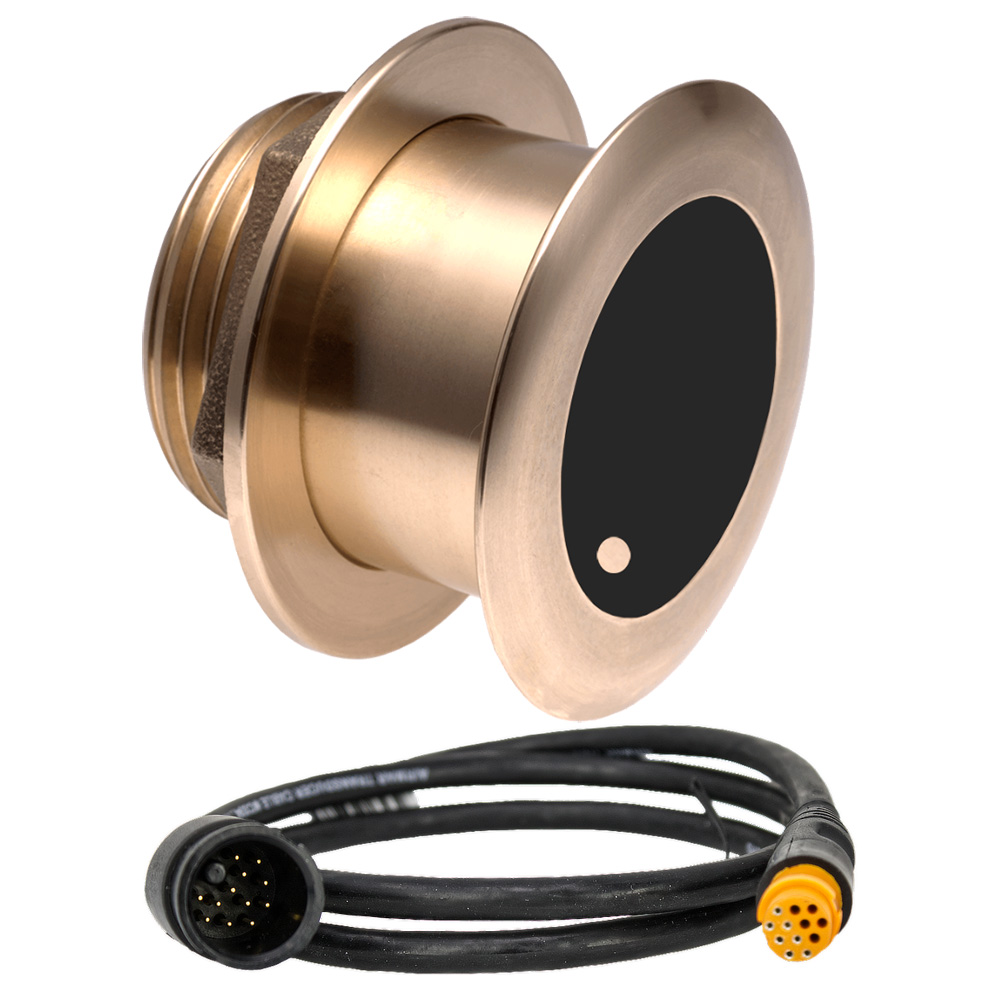

Airmar B175C-20-MW-12G Medium Ultra-Wide CHIRP Thru-Hull Transducer 1kW 20° Tilt

The Airmar B175C-20-MW-12G is a revolutionary medium ultra-wide CHIRP thru-hull transducer designed for serious anglers targeting pelagic species in the upper water column. This 1kW transducer features Airmar's innovative Tilted Element™ design with a ceramic element fixed at a 20° angle, allowing for near-flush hull installation while correcting for hull deadrise to ensure maximum echo returns.

Advanced CHIRP Technology:

Operating on medium frequency (60-100 kHz) with 40 kHz of total bandwidth, the B175MW delivers exceptional mid-depth performance and superior fish-target separation. The ultra-wide beamwidth ranges from 57° to 73° port-starboard and 16° average fore-aft, providing maximum coverage under the boat for comprehensive fish finding capabilities down to 400 meters (1,300 feet).

Key Features:

• Medium frequency 60-100 kHz CHIRP with 40 kHz total bandwidth
• Ultra-wide beamwidth: 57° to 73° port/starboard, 16° average fore/aft
• Fixed 20° tilted element optimized for 16° to 24° hull deadrise
• 1 kW power rating with depth tracking to 400 m (1,300')
• Integrated fast-response water temperature sensor (-10° to 40°C)
• 12-pin connector for Garmin fishfinders
• Bronze housing suitable for stepped, planing, or displacement hulls
• Low-profile thru-hull design for excellent resolution at speed
• Exclusive Xducer ID® technology for automatic transducer recognition
• Urethane acoustic window for optimal acoustic performance

Installation Specifications:

• Mounting style: Tilted Element thru-hull
• Hole size required: 95 mm (3-3/4")
• Compatible hull material: Fiberglass or wood
• Maximum vessel LOA: Up to 11 m (36')
• Cable length: 9-10 meters (30-33 feet)
• Weight: 2.7 kg (6 lbs)

The B175MW pairs perfectly with other Airmar models like the B275LHW to provide a comprehensive frequency range (Low, Medium-Wide, High-Wide) for interrogating targets from deep water to shallow depths. Made in the USA with bronze construction for durability in marine environments.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
