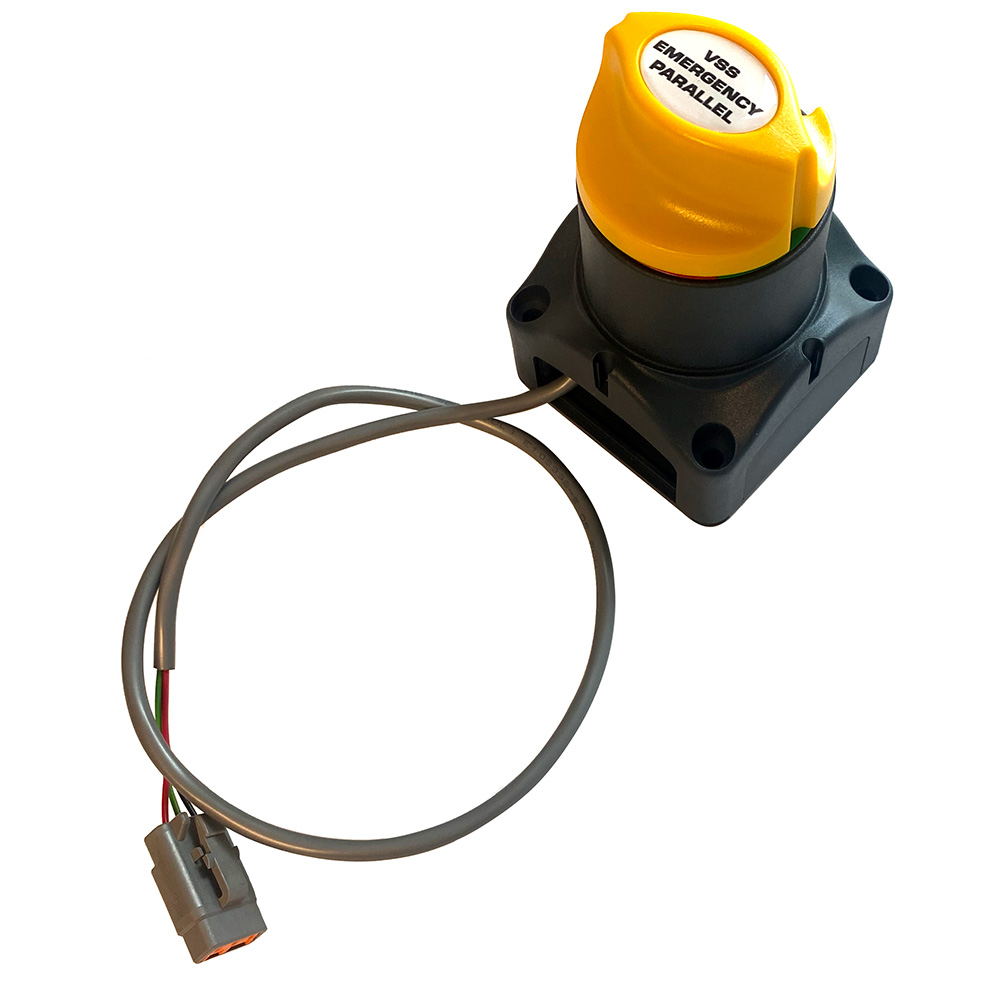

BEP Marine 701-MDVS-D Motorized Dual Operation VSS 275A Voltage Sensitive Switch with Deutsch Connector

The BEP Marine 701-MDVS-D is a 275A continuous-rated motorized Voltage Sensitive Switch (VSS) designed to automatically manage dual battery bank charging and emergency parallel connection in marine applications. This intelligent switch monitors both battery banks and combines or isolates them based on charging source presence, ensuring optimal battery management without manual intervention.

Automatic Voltage Sensing Operation:

The VSS engages when either the start or house battery reaches 13.7 volts, combining both banks for efficient charging from an alternator or shore power charger. With integrated engine run sensing, the switch intelligently manages battery isolation: if combined voltage drops below 13.0 volts with the engine off, contacts open after 5 seconds. When the engine is running and voltage drops below 12.2 volts, the switch remains engaged for 5 minutes before opening, preventing premature disconnection during high electrical loads.

Remote Emergency Parallel Function:

The 701-MDVS-D can be activated via a momentary dash-mounted button to parallel both battery banks for emergency starting. The emergency parallel mode runs for a preset 10 minutes, after which the switch automatically determines whether to stay engaged based on voltage levels or return to normal VSS operation.

Key Features:

• Dual battery bank sensing with automatic combine/isolate functionality
• Deutsch connector for reliable marine connections
• Manual override option for emergency parallel operation
• Engine run sensing prevents unnecessary battery drain
• Marine-grade construction with tinned copper conductors and stainless steel hardware
• High-temperature, fiber-reinforced plastic housing for durability
• Ignition protected design for safety
• Recessed or surface mounting options

Technical Specifications:

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking Rating: 1,250 Amps DC
• Voltage Rating: 9.5 - 32 Volts DC
• Stud Size: 2 x 10mm (3/8-inch)
• Power Draw: 12mA (off), 15mA (on), 120mA during switching operation (3 seconds at 12V nominal)
• Operation: On/Off with automatic voltage sensing

Ideal for boats with dual battery systems requiring automatic charging management and emergency parallel capability in a single, reliable unit. The VSS eliminates the need for manual battery switch management while providing peace of mind with emergency backup functionality.
