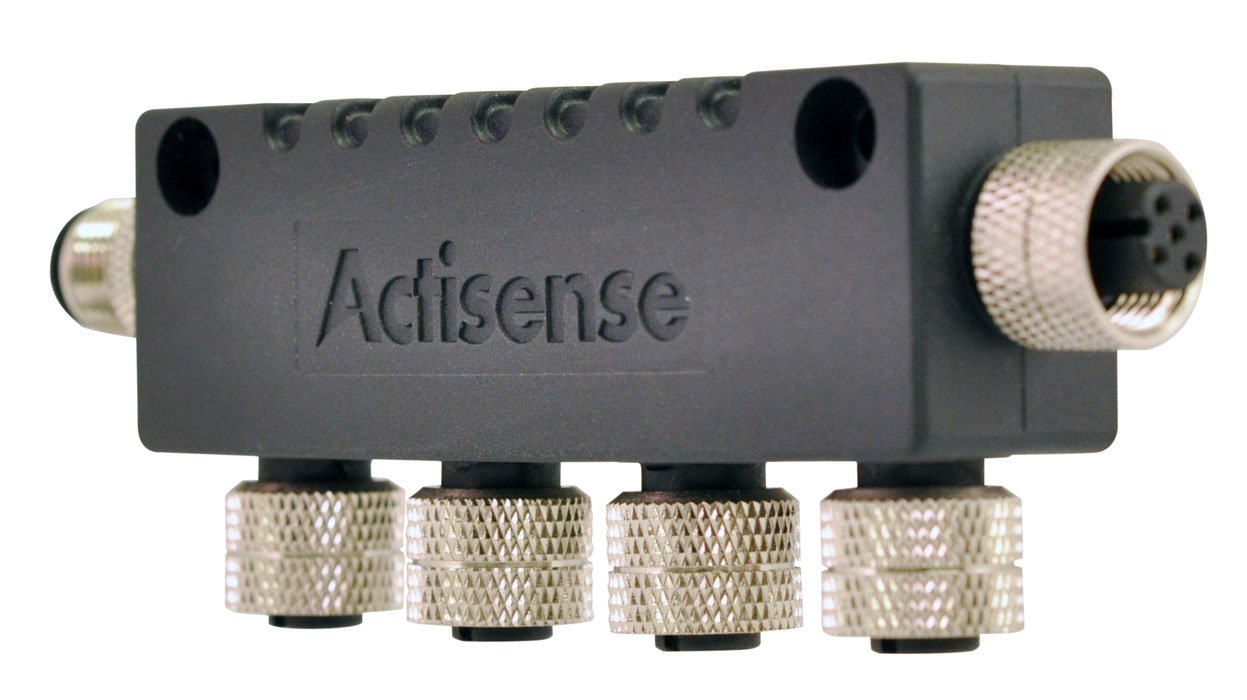

Actisense A2K-4WT NMEA 2000 Micro 4-Way T-Piece Connector

The Actisense A2K-4WT is a compact NMEA 2000 Micro 4-Way T-Piece connector designed for marine networking applications where multiple device drops are required from a single backbone connection point. This space-saving connector provides four ports in the footprint of a standard T-piece, making it ideal for installations with limited space or multiple devices in close proximity.

Key Features:

• Four NMEA 2000 drop ports in a single compact connector
• NMEA 2000 certified and fully compliant with network standards
• RoHS compliant construction with halogen-free materials
• IP67 waterproof rating when properly mated
• Quick and easy installation requiring no special tools
• More economical than purchasing four individual T-pieces

Technical Specifications:

• Rated Current: 4A
• Rated Voltage: 60V DC
• Male Contacts: Gold-plated brass
• Female Contacts: Gold-plated phosphor bronze
• Contact Carrier: PA66 with 30% glass fill, black
• Mating Thread: Standard M12 "A" polarization
• Screw Cap: Nickel-plated brass
• Housing: Flame retardant TPU (UL94V-0 rated), halogen-free
• Internal Shield: Copper foil for EMI protection
• Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Weight: 105g (0.23 lbs)
• Protection Rating: IP67 when mated

The Actisense A2K-4WT simplifies complex NMEA 2000 network installations by consolidating multiple connection points into one robust, professionally engineered component. Perfect for connecting chart plotters, GPS receivers, fishfinders, autopilots, and other marine electronics to your vessel's network backbone.
